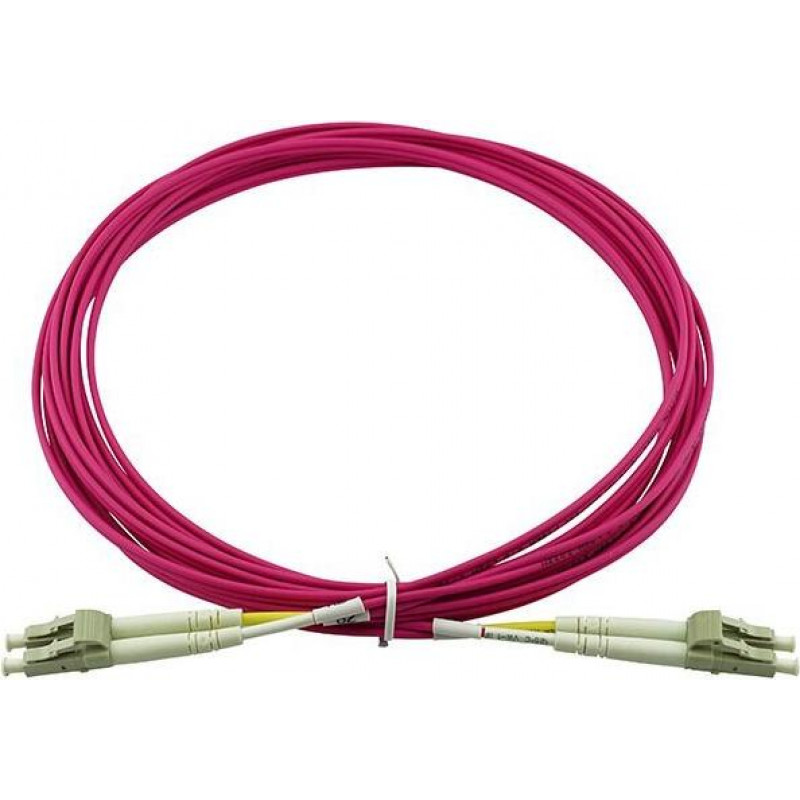

BlueOptics Ubiquiti UACC-OFC-M2-LULU-15M LC-LC Multimode-OM4-patchkabel 15 meter

For high-density fiber environments where signal integrity cannot be compromised, this BlueOptics 15-meter OM4 patch cable delivers a dependable LC-to-LC link with laser-optimized multimode fiber. Unlike standard OM3 assemblies that top out near 10 Gbps over longer runs, this cable supports 40/100 Gbps Ethernet and 32GFC up to 150 meters, giving your Ubiquiti UACC-OFC-M2 compatible hardware room to perform at full speed. The duplex construction pairs two 50/125 µm cores in a single low-smoke zero-halogen jacket, so you can cable both transmit and receive in one pull while meeting strict indoor fire-safety codes.

Highlights

• OM4 laser-optimized multimode fiber: 4700 MHz·km effective modal bandwidth at 850 nm for high-speed parallel optics.
• LC UPC duplex connectors: precision ceramic ferrules with ≤0.3 dB insertion loss and ≥30 dB return loss for clean, stable links.
• LSZH aqua jacket: low smoke, zero halogen, flame-retardant, and color-coded for OM4 identification.
• 15-meter length: ideal for patching between distribution panels, switches, and servers in racks or across a room.
• Backward compatible with OM3 and OM2 networks, protecting your existing infrastructure investment.

In daily use

Installation is straightforward: the UPC polished LC connectors click into SFP, SFP+, QSFP+, and QSFP28 transceivers with a positive latch, and the 2.0 mm duplex zip-cord design keeps fibers organized without adding bulk. The LSZH jacket remains flexible across a wide temperature range (-20°C to 70°C), so you can route it through cable managers, overhead trays, or under raised floors without cracking or kinking. Attenuation is rated at 3.0 dB/km at 850 nm and 1.0 dB/km at 1300 nm, ensuring minimal signal loss over the 15-meter span. Whether you are extending a Ubiquiti aggregation switch to a top-of-rack leaf or connecting a high-speed NAS, this cable maintains full link budget for 10G, 25G, 40G, and 100G Ethernet.

Full specifications

• Brand: BlueOptics
• Model: UACC-OFC-M2-LULU-15M-BO
• MPN: UACC-OFC-M2-LULU-15M-BO
• Cable type: Fiber optic patch cable, duplex
• Fiber mode: Multi-mode OM4
• Connectors: LC UPC to LC UPC
• Core/cladding diameter: 50/125 µm
• Cable length: 15 meters
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Aqua
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Attenuation at 850 nm: 3.0 dB/km
• Attenuation at 1300 nm: 1.0 dB/km
• Effective modal bandwidth at 850 nm: 4700 MHz·km
• Effective modal bandwidth at 1300 nm: 500 MHz·km
• Cable diameter: 2.0 mm (duplex)
• Operating temperature: -20°C to 70°C
• Compatibility: Ubiquiti UACC-OFC-M2 series and other OM4 LC-LC devices

Final note

For data centers and enterprise networks that demand headroom for tomorrow’s speeds, this OM4 patch cable is a cost-effective way to future-proof your fiber links without overspending on single-mode optics.
