Bodypack-zender Omnitronic TM-105

The Omnitronic TM-105 bodypack transmitter operates in the 863 - 865 MHz frequency range and is designed for wireless audio transmission in live sound and presentation environments. It delivers a microphone frequency response of 50 - 18000 Hz, providing clear reproduction of spoken voice and instrument signals. The unit is compact and lightweight, powered by AA batteries, and intended to be worn on the belt or placed in a pocket for unobtrusive use during performances and presentations.

Advantages

The transmitter offers stable RF performance within the specified UHF band, with a microphone frequency response that supports natural vocal clarity and reliable transmission of mid and high frequencies. Its compact dimensions (64 mm width, 26 mm depth, 88 mm height) and low weight make it comfortable for long periods of use. Battery operation with standard AA cells enables quick replacement and convenient field use without the need for dedicated rechargeable packs.

Suitable for

Key specifications

How to use

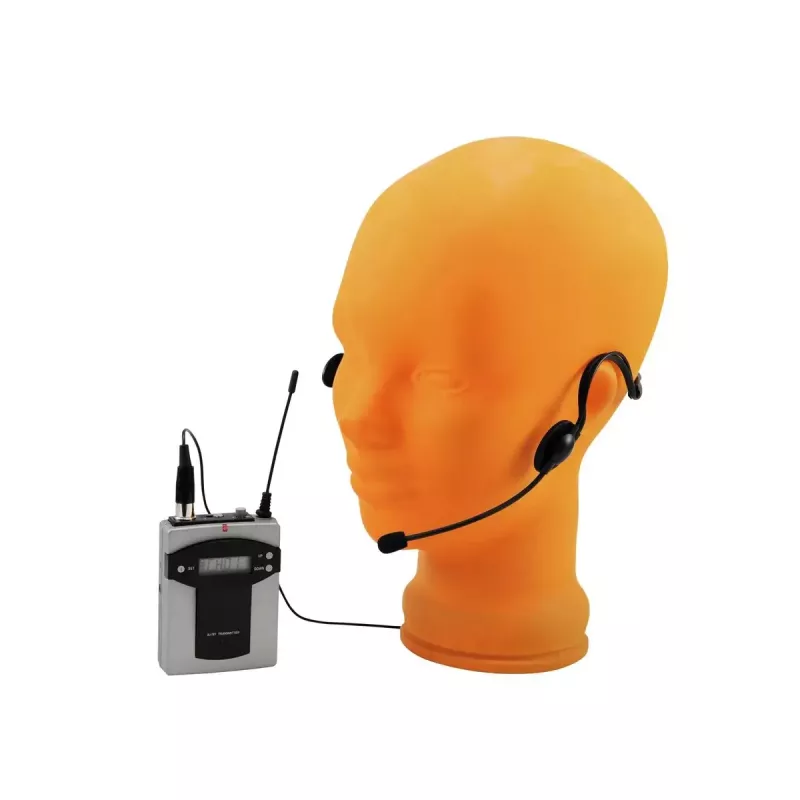

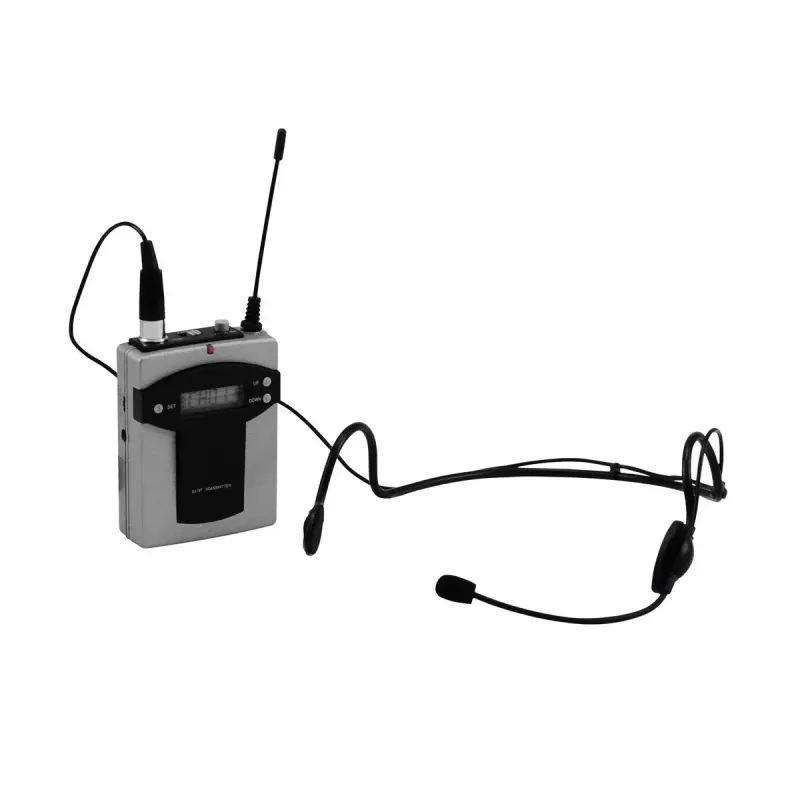

Insert fresh AA batteries into the battery compartment following the polarity markings and secure the battery cover. Attach a compatible lavalier or headset microphone to the transmitter's mic input and clip the bodypack to the belt or place it in a pocket within clear line of sight of the receiver where possible. Tune the receiver and transmitter to matching frequencies within the 863–865 MHz range, check audio levels on the connected mixer or receiver, and perform a brief sound check to confirm signal strength and clarity before the event.

Recommendations

For consistent performance, use high-quality AA batteries and replace them before long sessions. Maintain a clear line of sight between transmitter and receiver when possible, and perform a frequency scan to avoid local RF interference. Regularly inspect the microphone cable and connector for wear to ensure reliable audio transmission.
