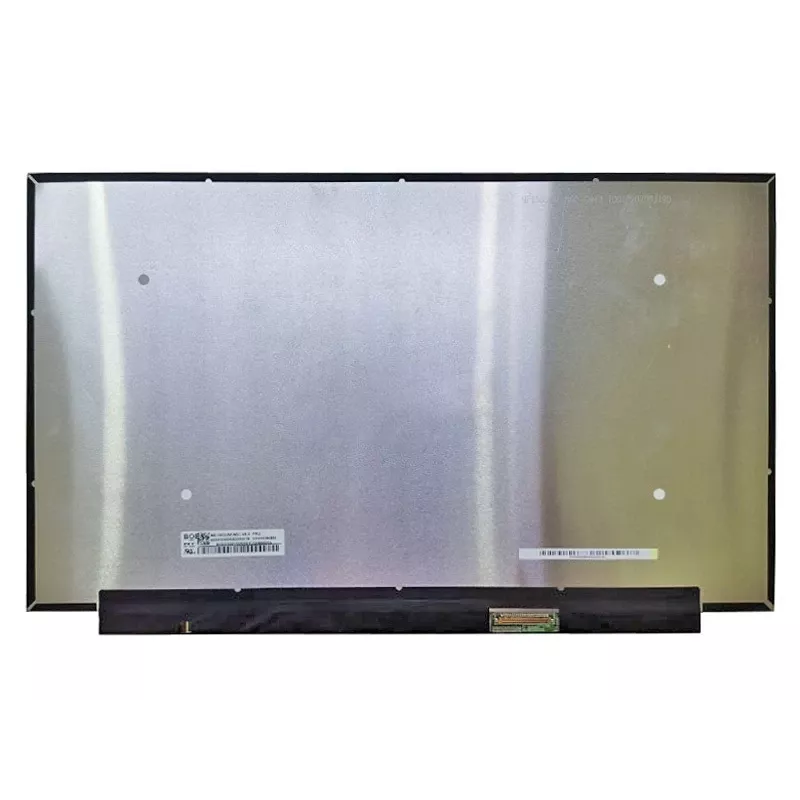

BOE 15,6 inch 4K UHD IPS mat displaypaneel, 3840x2160, 60Hz, 40-pins eDP, rechter connector

When a laptop screen cracks or loses brightness, the whole machine becomes unusable. This BOE 15.6-inch panel restores a sharp 4K UHD image with a matte finish that cuts reflections, so you can work comfortably even near windows.

Who is it for

Repair technicians and advanced DIYers replacing a faulty panel in a compatible laptop. It suits anyone who needs a high-resolution display with accurate colours and wide viewing angles.

Main features

• 15.6-inch IPS panel with 3840 x 2160 native resolution
• Matte (anti-glare) surface reduces mirror-like reflections
• 60 Hz refresh rate for smooth everyday use
• 40-pin eDP connector positioned on the right side (viewed from the back)
• 350 cd/m² brightness and 100% sRGB colour gamut
• Wide 85° viewing angles in all directions

Specifications

• Display Size: 15.6 inches
• Resolution: 3840 x 2160 (4K UHD)
• Refresh Rate: 60 Hz
• Panel Type: IPS
• Surface Finish: Matte
• Backlight: LED
• Aspect Ratio: 16:9
• Connector: 40-pin eDP, right side
• Brightness: 350 cd/m²
• Colour Gamut: 100% sRGB
• Viewing Angles: 85/85/85/85
• Response Time: 25 ms
• Colours: 16.7 million (8-bit)
• Touchscreen: No
• Power Consumption: ~5 W
• Mounting: Screw tabs (side brackets)

Tips

Before ordering, verify the exact panel model number in your laptop. Even with the same size and connector, mounting brackets and cable position can differ. Handle the panel by its edges and avoid touching the circuitry.
