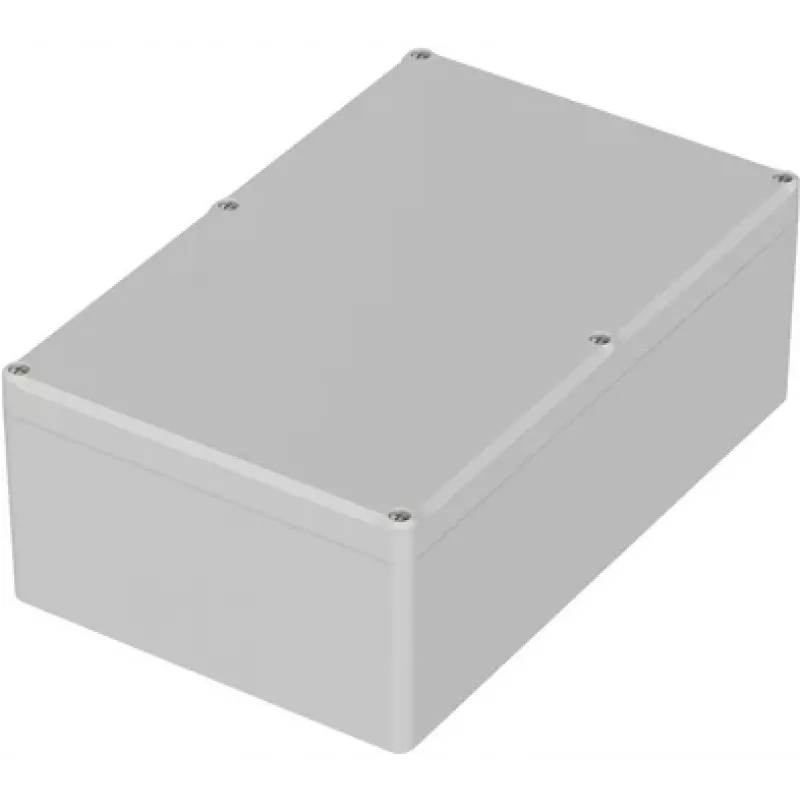

Bopla EM 240 universele behuizing 250 x 160 x 92 mm polycarbonaat lichtgrijs (RAL 7035) 62240000

This universal enclosure from Bopla's EM series offers a robust, UV-stabilized polycarbonate housing with external dimensions of 250 x 160 x 92 mm and a light grey finish (RAL 7035).

Overview

The Bopla EM 240 is a versatile enclosure designed for a wide range of electronic and electrical applications. Its polycarbonate construction provides high impact resistance (IK08) and a wide operating temperature range from -40°C to +80°C. The enclosure features a screw-on lid with stainless steel screws and a polyurethane gasket for a reliable seal.

What stands out

• High-quality polycarbonate material, UV-stabilized and halogen-free
• IP65 protection class for dust and water resistance
• Flammability rating UL 94 V-0
• Mounting bosses inside for PCBs or DIN rails
• Suitable for wall mounting or direct screw mounting

Technical details

• External dimensions (L x W x H): 250 x 160 x 92 mm
• Material: Polycarbonate
• Colour: Light grey (RAL 7035)
• Lid type: Screw-on lid
• Lid screws material: Stainless steel
• Gasket material: Polyurethane (PUR)
• Operating temperature range: -40°C to +80°C
• Mounting type: Wall mounting, direct screw mounting
• Internal mounting options: Mounting bosses for PCBs/DIN rails
• UV resistance: Yes (UV stabilized)
• Halogen-free: Yes
• RoHS compliant: Yes

Our verdict

A durable and reliable enclosure for demanding environments, offering excellent protection and flexibility for your electronic components.
