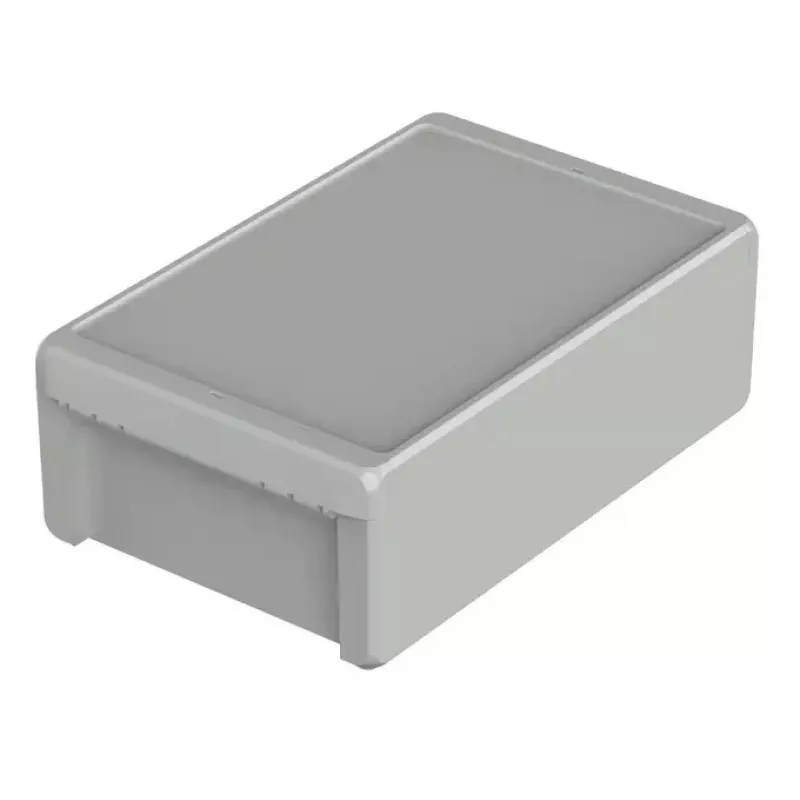

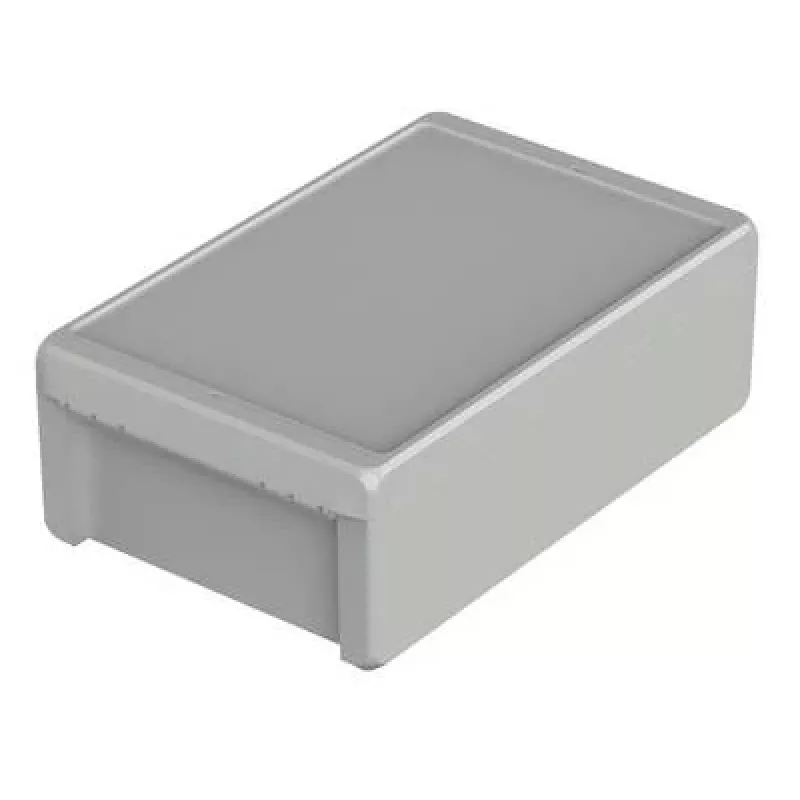

BOPLA EUROMAS II wandbehuizing, ABS lichtgrijs RAL 7035, 170 x 271 x 90 mm 96036335

Wall-mount enclosure made of ABS in light grey (RAL 7035) for industrial and electrical installations, offering a robust housing with screw-on lid and IP65 protection.

Advantages

Durable ABS construction, screw-on lid with stainless steel screws, polyurethane gasket for reliable sealing, internal mounting bosses for PCBs or mounting plates.

Suitable for

• Electrical installations
• Industrial control systems
• Junction boxes

Key specifications

• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey (RAL 7035)
• External dimensions: 170 mm width x 271 mm length x 90 mm height
• Protection class: IP65
• Lid fastening: Screw-on lid
• Gasket material: Polyurethane (PU)
• Flammability rating: UL 94 HB
• Operating temperature range: -40°C to +80°C
• Impact resistance: IK07
• Halogen-free: Yes

Recommendations

Ideal for housing electrical components in demanding environments where dust-tight and water-jet protection is required.
