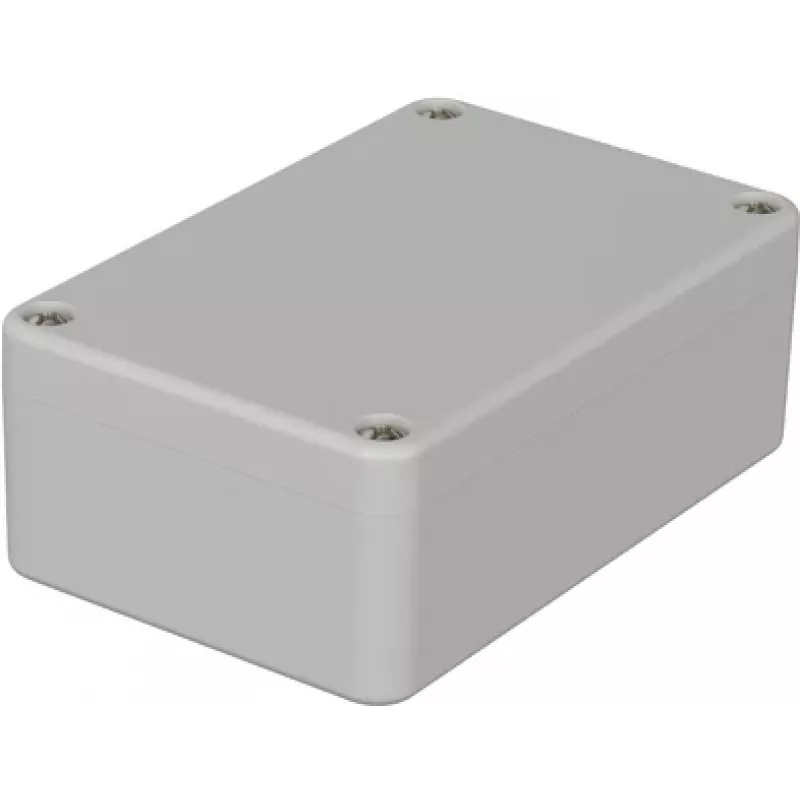

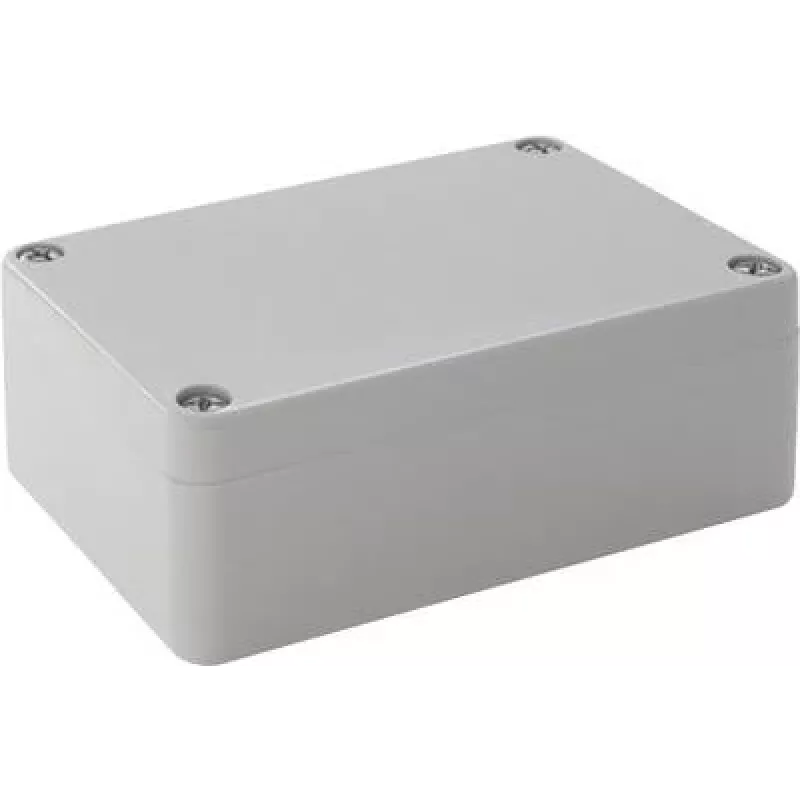

Bopla EUROMAS T 208 universele behuizing 98 x 64 x 36 mm ABS lichtgrijs IP65 03208000

Protecting sensitive electronics from dust, moisture, and mechanical impact is a constant challenge in industrial and outdoor environments. The Bopla EUROMAS T 208 universal enclosure provides a robust, light grey housing solution for your electronic components, ensuring reliable operation even in demanding conditions.

Who is it for

This enclosure is ideal for engineers, system integrators, and hobbyists who need a durable, IP65-rated housing for control units, sensors, or small electronic assemblies. Its compact size makes it suitable for wall-mount or machine-mount applications where space is limited.

Main features

• External dimensions: 98 x 64 x 36 mm (L x W x H)
• Material: Acrylonitrile Butadiene Styrene (ABS), light grey (RAL 7035)
• Protection class: IP65 (EN 60529) — dust-tight and protected against water jets
• Impact resistance: IK07
• Temperature range: -40°C to +80°C
• Flammability rating: UL 94 V-0
• Lid fastening: 4 stainless steel screws
• Gasket material: PU foam
• Halogen-free and RoHS compliant

Specifications

• Product type: Universal enclosure
• Series: EUROMAS T
• External length: 98 mm
• External width: 64 mm
• External height: 36 mm
• Material: ABS
• Colour: Light grey (RAL 7035)
• Protection class: IP65 (EN 60529)
• Impact resistance: IK07
• Temperature range: -40°C to +80°C
• Flammability rating: UL 94 V-0
• Lid fastening: 4x stainless steel screws
• Gasket material: PU foam
• Halogen-free: Yes
• RoHS compliant: Yes

Tips

When mounting the enclosure, ensure the lid screws are evenly tightened to maintain the IP65 seal. For outdoor use, consider additional UV protection if the enclosure will be exposed to direct sunlight for extended periods.
