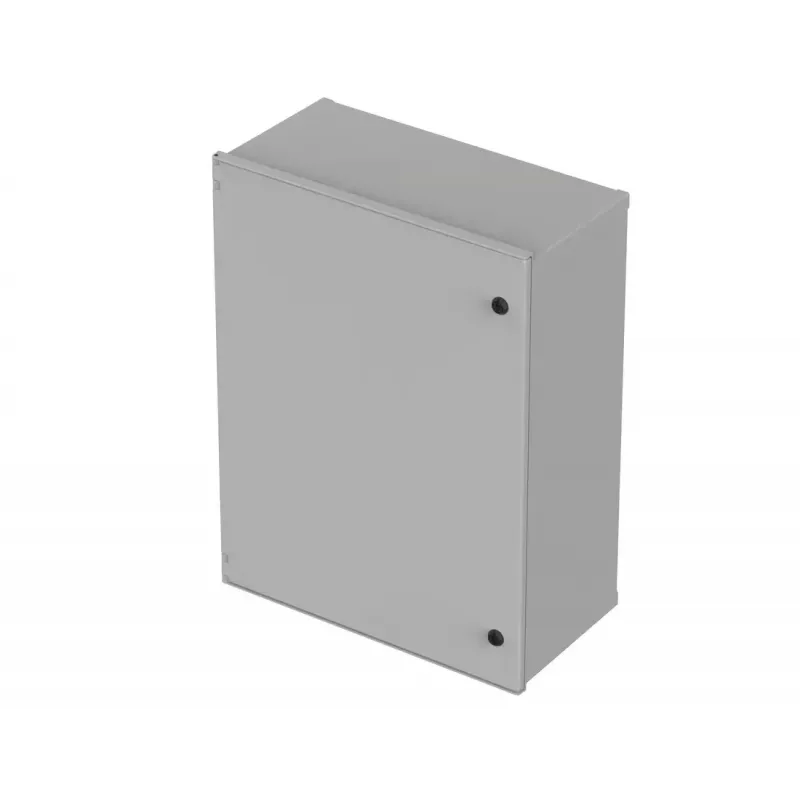

Bopla Polysafe PS 863 Elektrobehuizing 800 x 600 x 300 mm lichtgrijs (RAL 7035) 42186300

The Bopla Polysafe PS 863 stands out with its glass fibre reinforced polyester construction, offering superior chemical and UV resistance compared to standard steel or ABS enclosures. Its hinged lid with quarter-turn locks ensures quick and secure access, making it ideal for demanding industrial environments.

Highlights

• Glass fibre reinforced polyester for excellent durability and corrosion resistance
• IP65 ingress protection against dust and water jets
• IK08 impact resistance for robust mechanical protection
• Hinged lid with quarter-turn locks for easy access
• Light grey (RAL 7035) finish suitable for various applications

In daily use

The enclosure provides reliable protection for electrical components in harsh conditions. Its operating temperature range of -40 °C to +80 °C and UL 94 V-0 flammability rating ensure safe operation across diverse environments. The polyurethane foam gasket maintains a tight seal, while the wall-mounting design allows for flexible installation.

Full specifications

• External dimensions: 800 x 600 x 300 mm (H x W x D)
• Material: Glass fibre reinforced polyester
• Colour: Light grey (RAL 7035)
• Ingress protection: IP65
• Impact resistance: IK08
• Flammability rating: UL 94 V-0
• Operating temperature: -40 °C to +80 °C
• Gasket material: Polyurethane (PU) foam
• Lid type: Hinged lid
• Fastener type: Quarter-turn locks
• Mounting type: Wall mounting
• Standards: IEC 62208
• UV resistance: Yes
• Chemical resistance: Good against many acids, alkalis, and oils

Final note

For applications requiring a robust, weatherproof enclosure with easy access and long-term reliability, the Polysafe PS 863 is a proven choice.
