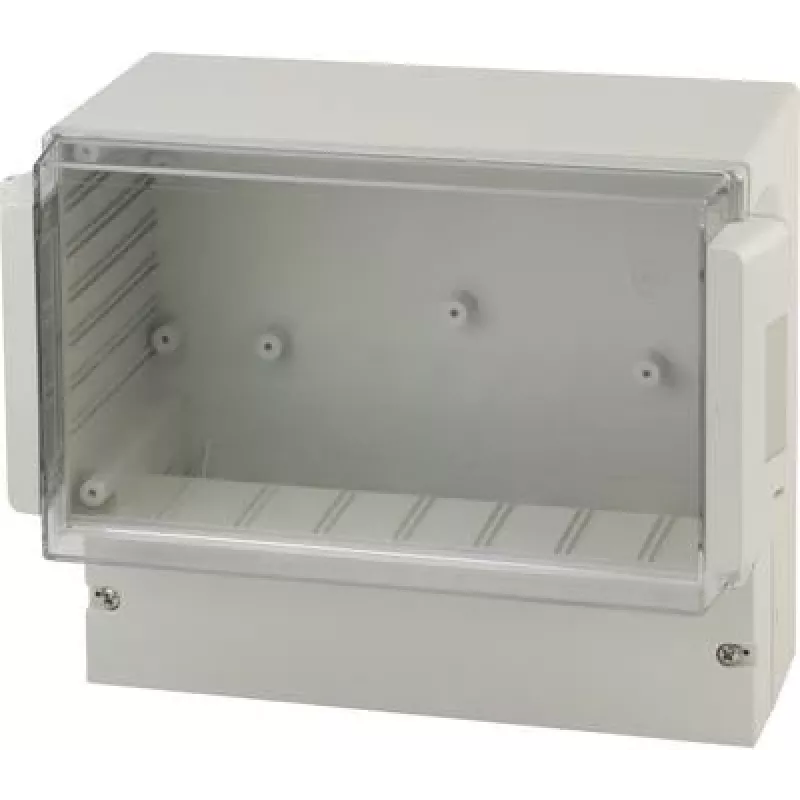

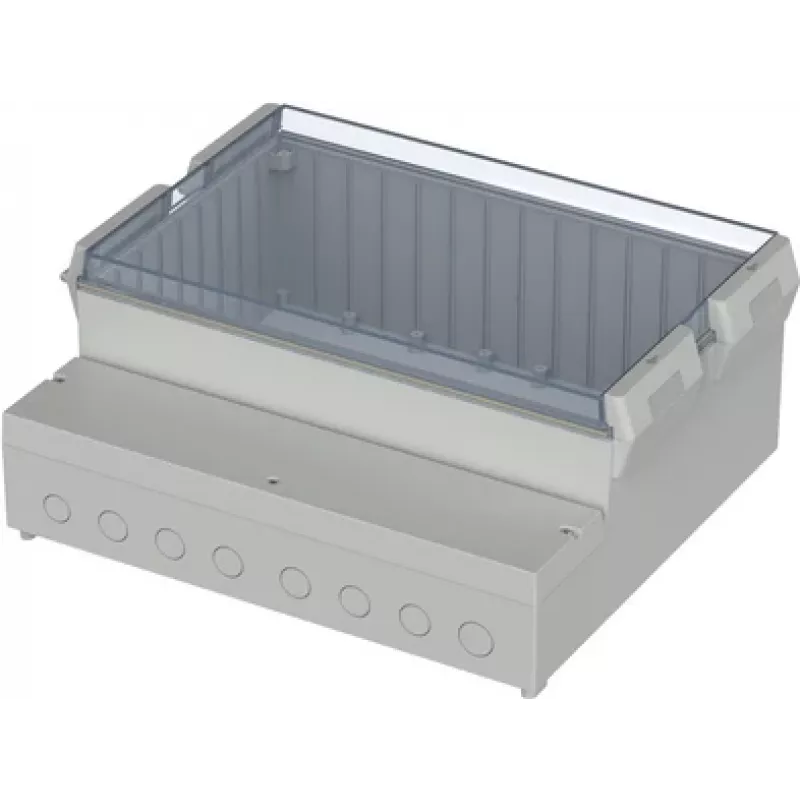

BOPLA RCP 4000 schakelpaneelbehuizing, ABS/polycarbonaat, lichtgrijs, 363,4 x 318,6 x 150 mm 41400109

In industrial automation and measurement technology, protecting sensitive control electronics is critical. The BOPLA RCP 4000 control panel enclosure provides a robust housing for control boards, hubs, and alarm kits in demanding environments. Its light grey ABS/polycarbonate blend offers a balance of impact resistance and flame retardancy, making it suitable for wall-mounted or internal installations.

Key specifications

• Material: ABS / Polycarbonate blend
• Colour: Light grey (RAL 7035)
• External dimensions: 363.4 mm (L) x 318.6 mm (W) x 150 mm (H)
• Protection class: IP65
• Impact resistance: IK08
• Flammability rating: UL 94 V-0
• Operating temperature: -40 to +80 °C
• Gasket material: Polyurethane (PU)
• Lid fastening: Stainless steel screws
• Mounting type: Wall mountable, internal mounting bosses
• Lid type: Solid

Why choose it

The RCP 4000 enclosure combines a durable ABS/polycarbonate blend with a light grey finish that suits industrial settings. Its IP65 rating protects against dust and water jets, while IK08 impact resistance guards against mechanical stress. The UL 94 V-0 flammability rating enhances safety in electrical applications. The polyurethane gasket ensures a reliable seal, and stainless steel screws provide secure lid closure.

Ideal use cases

• Industrial control panels
• Automation systems
• Measurement technology housings
• Wall-mounted control hubs

Good to know

The enclosure is supplied as a single unit. It features internal mounting bosses for easy installation of PCBs and components. The solid lid provides a clean, uninterrupted surface. Operating temperature range from -40 to +80 °C allows use in harsh climates.
