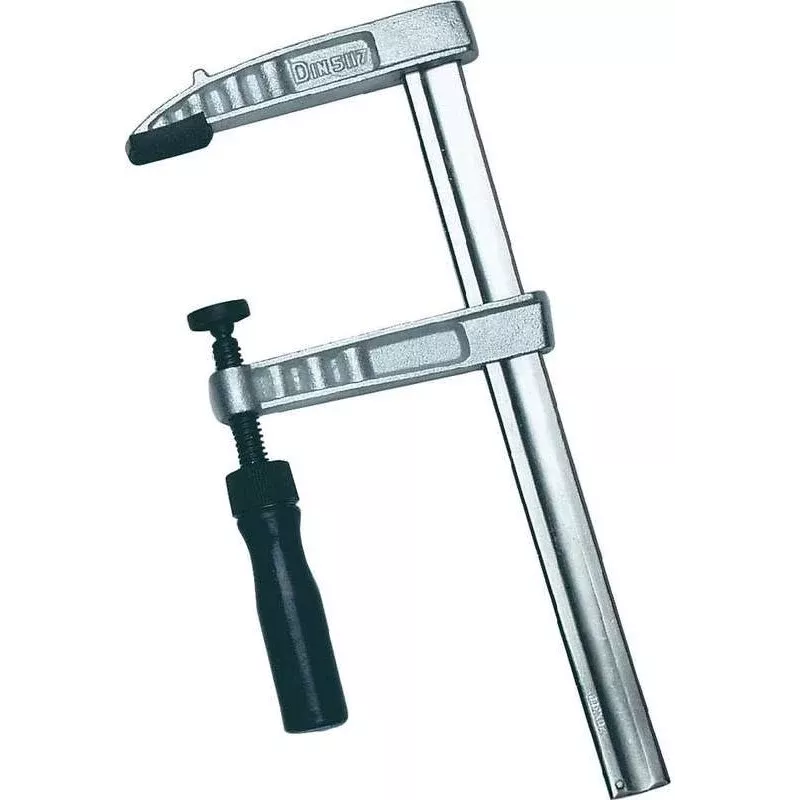

Brüder Mannesmann industriële lijmklem DIN 5117, 600 mm spanwijdte, 120 mm uitlading, tempergietijzer frame, blauw 90423

In a busy carpentry workshop, a joiner reaches for this Brüder Mannesmann industrial screw clamp to hold a large glued panel securely while the adhesive sets. The clamp's 600 mm opening and 120 mm throat depth accommodate wide workpieces, and the swiveling pressure plate distributes force evenly to prevent marring. Constructed with a malleable cast iron frame and high-quality steel rail, it withstands the demands of daily use in woodworking and metalworking shops.

Key specifications

• Clamping capacity: 600 mm
• Throat depth: 120 mm
• Frame material: malleable cast iron
• Rail material: high-quality steel
• Spindle thread: trapezoidal thread
• Handle: ergonomic beechwood
• Standard: DIN 5117

Why choose it

The clamp's robust construction and compliance with DIN 5117 ensure reliable performance in industrial environments. Its swiveling pressure plate adapts to angled surfaces, and the wooden handle provides a comfortable grip during extended use.

Ideal use cases

• Woodworking assembly and gluing
• Metalworking fabrication
• Industrial maintenance and repair
• General workshop clamping tasks

Good to know

The clamp features a powder-coated blue finish for corrosion resistance and a professional appearance. The trapezoidal thread on the steel spindle allows smooth and powerful clamping action.
