CCTV-beveiligingscamera Hikvision DS-2CE76H0T-ITMFS

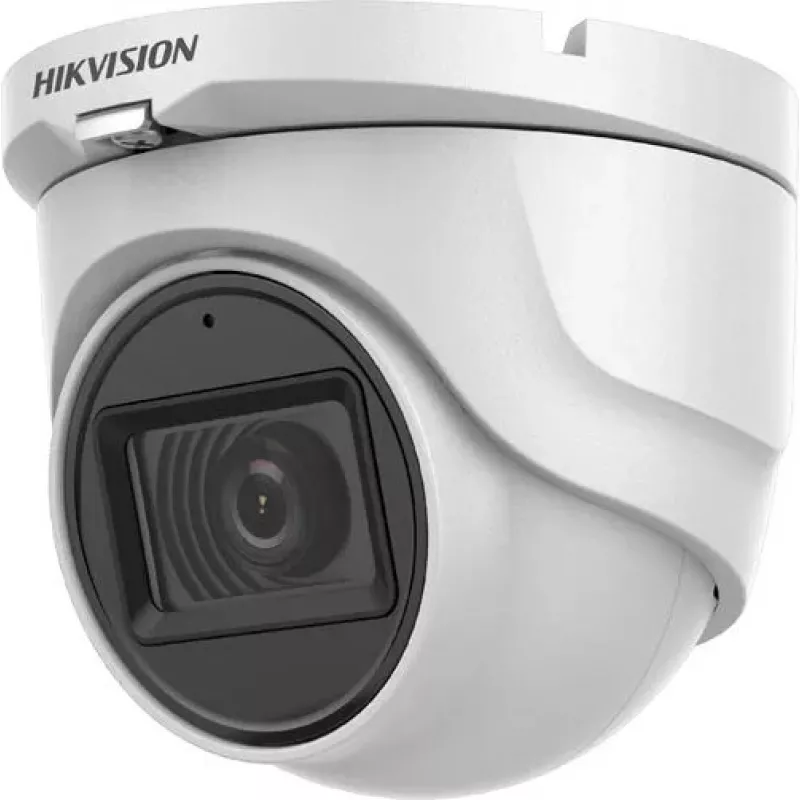

The Hikvision DS-2CE76H0T-ITMFS is an outdoor turret CCTV security camera that delivers 2560 x 1944 pixel resolution for detailed surveillance images. Designed for wired installations on ceilings or walls, this compact white turret houses a fixed 2.8 mm lens and a CMOS image sensor. The camera provides wide horizontal and vertical viewing angles and supports a 360° rotation angle in its mounting configuration to aid flexible positioning for outdoor monitoring tasks.

Advantages

The camera combines high-resolution imaging with a turret form factor that simplifies site placement and reduces visual intrusion. A fixed 2.8 mm lens gives a broad field of view suitable for general area coverage while the CMOS sensor maintains image clarity in typical outdoor lighting conditions. Wired connectivity ensures a stable signal and power delivery for continuous operation, and the camera’s compact weight and white finish make it unobtrusive on a variety of exterior surfaces.

Suitable for

• Perimeter monitoring of small to medium outdoor areas
• Entryways and driveways for residential properties
• Commercial storefront and parking area surveillance
• Ceiling- or wall-mounted observation points where wide coverage is required

Key specifications

• Resolution: 2560 x 1944 pixels
• Lens: fixed 2.8 mm focal length
• Viewing angles: horizontal 85.5°, vertical 63.7°
• Rotation: 360° rotation angle for mounting adjustment
• Sensor type: CMOS
• Frame rate: up to 30 fps
• Mounting: ceiling or wall
• Connectivity: wired
• Placement: outdoor use supported
• Color: white
• Weight: approximately 0.2895 kg

How to use

Install the camera on a stable ceiling or wall surface using appropriate anchors and hardware for the mounting substrate. Route the necessary wiring to the recording device or power source following local electrical codes and the camera manufacturer’s installation guidelines. Adjust the turret rotation and lens angle during installation to achieve the desired field of view; the 360° rotation capability allows flexible alignment. After physical installation, connect to the recording system and verify video output at the target resolution and frame rate. Regularly inspect the camera housing and wiring for damage and clean the lens to maintain image quality.

Recommendations

Place the camera at a sufficient height to limit tampering while keeping the intended area within the 2.8 mm lens field of view. Use appropriate weatherproof cable management and surge protection for outdoor wired installations. For best results in low light or high-contrast scenes, configure the recording system’s exposure and gain settings and schedule periodic checks to confirm image clarity.
