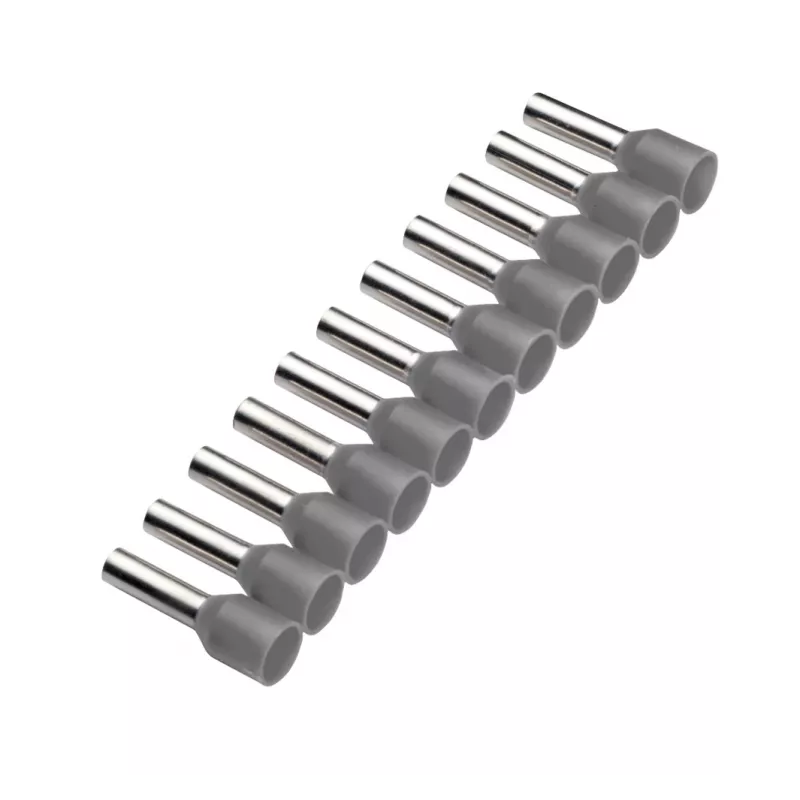

Cimco 187501 adereindhuls 0,75 mm² gedeeltelijk geïsoleerd grijs 500 stuks

When terminating fine-stranded copper conductors in control cabinets, switchgear, or electrical installations, loose wire strands can cause poor connections, short circuits, or unreliable terminations. The Cimco 187501 wire end ferrule provides a reliable solution by bundling and protecting conductor strands before insertion into terminal blocks or connectors.

Who is it for

Electricians, panel builders, and maintenance technicians who work with fine-stranded copper conductors and require consistent, secure terminations in industrial and commercial electrical systems.

Main features

• Nominal cross-section: 0.75 mm²
• Partially insulated design with grey polypropylene collar
• Ferrule length: 8 mm
• Tin-plated electrolytic copper construction for corrosion resistance and conductivity
• Halogen-free insulation
• Complies with DIN 46228 Part 4
• Pack of 500 pieces

Specifications

• Product type: Wire end ferrule
• Nominal cross-section: 0.75 mm²
• Insulation type: Partially insulated
• Colour: Grey
• Ferrule length (L1): 8 mm
• Quantity per pack: 500 pieces
• Ferrule material: Electrolytic copper
• Surface treatment: Tin-plated
• Insulation material: Polypropylene (PP)
• Standard compliance: DIN 46228 Part 4
• Temperature range: -40°C to +105°C
• Max. voltage rating: 600 V
• Conductor type: Fine-stranded copper conductors
• Wire stripping length: 8 mm
• Halogen-free: Yes
• Application: Electrical wiring, control cabinets, switchgear

Tips

Use a proper crimping tool designed for wire end ferrules to ensure a secure and reliable connection. Ensure the conductor is stripped to the recommended length of 8 mm before inserting into the ferrule.
