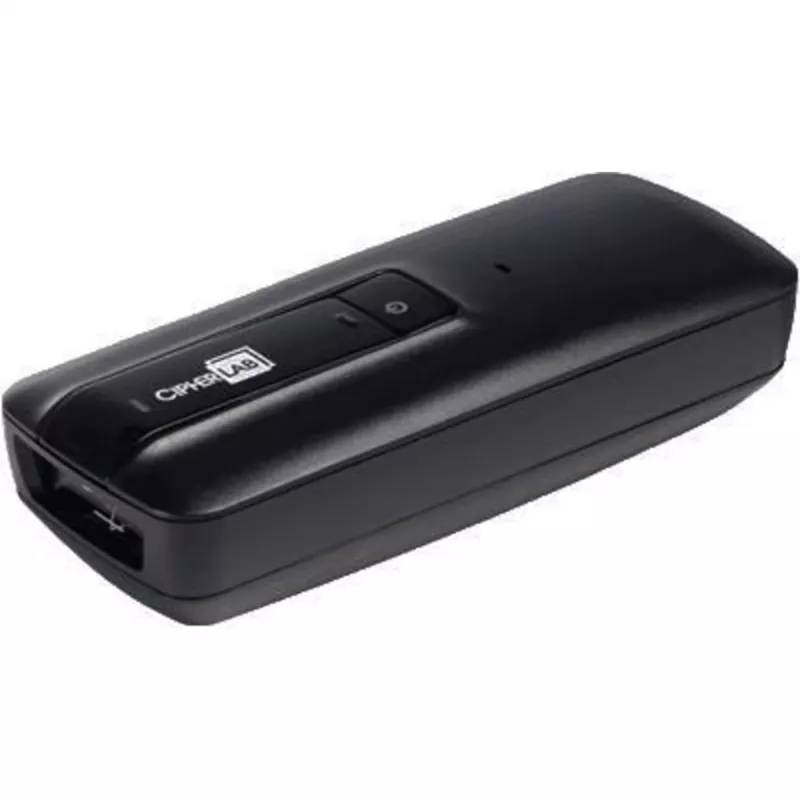

CIPHERLAB 1663 handheld barcodescanner - linear imager - Bluetooth - zwart

The CIPHERLAB 1663 is a rugged, wireless handheld barcode scanner designed for high-performance 1D barcode scanning in retail, warehouse, and logistics environments. Featuring a linear imager engine and Bluetooth connectivity, it offers reliable data capture and seamless integration with mobile devices and POS systems.

Advantages

Wireless freedom with Bluetooth 2.1+EDR, Class 2, providing a range of up to 10 meters. Long battery life of up to 15.5 hours or 10,000 scans per charge ensures uninterrupted workflow. Durable design withstands drops from 1.2 meters and is rated IP42 for dust and water resistance. Large 4 MB memory stores over 240,000 EAN-13 barcodes for batch mode operation.

Suitable for

• Retail inventory management and point-of-sale
• Warehouse and logistics barcode scanning
• Healthcare asset tracking and patient identification
• Light industrial and field service applications

Key specifications

• Scan Engine: Linear Imager (1D)
• Connectivity: Bluetooth 2.1+EDR, Class 2 (up to 10 m)
• Memory: 4 MB (240,000+ EAN-13 barcodes)
• Battery: Rechargeable Li-ion, 3.7V, 800 mAh
• Battery Life: Up to 15.5 hours / 10,000 scans
• Drop Spec: 1.2 m to concrete
• IP Rating: IP42
• Scan Rate: 200 scans/sec
• Min Resolution: 4 mil
• Indicators: LED, Beeper, Vibrator
• Operating Temperature: 0°C to 50°C
• Host Interface: Bluetooth HID, SPP, MFi
• Charging: USB
• Operating Modes: Online, Batch, Auto-detection
• Supported OS: Windows, Android, iOS

Recommendations

For optimal performance, pair with a compatible charging cradle and USB cable. The scanner is ideal for businesses upgrading from older laser scanners to modern imager technology.
