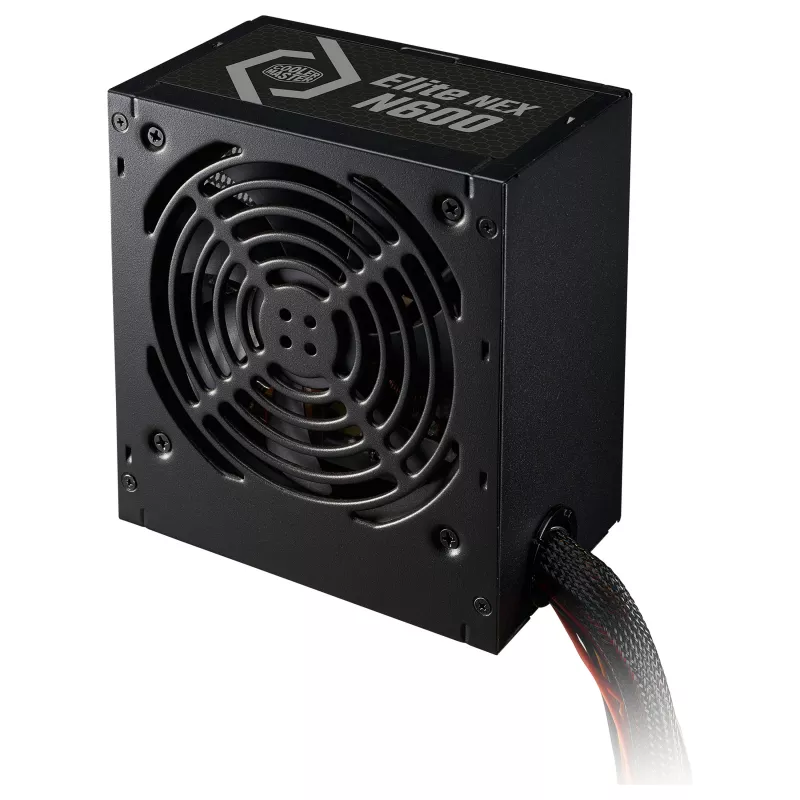

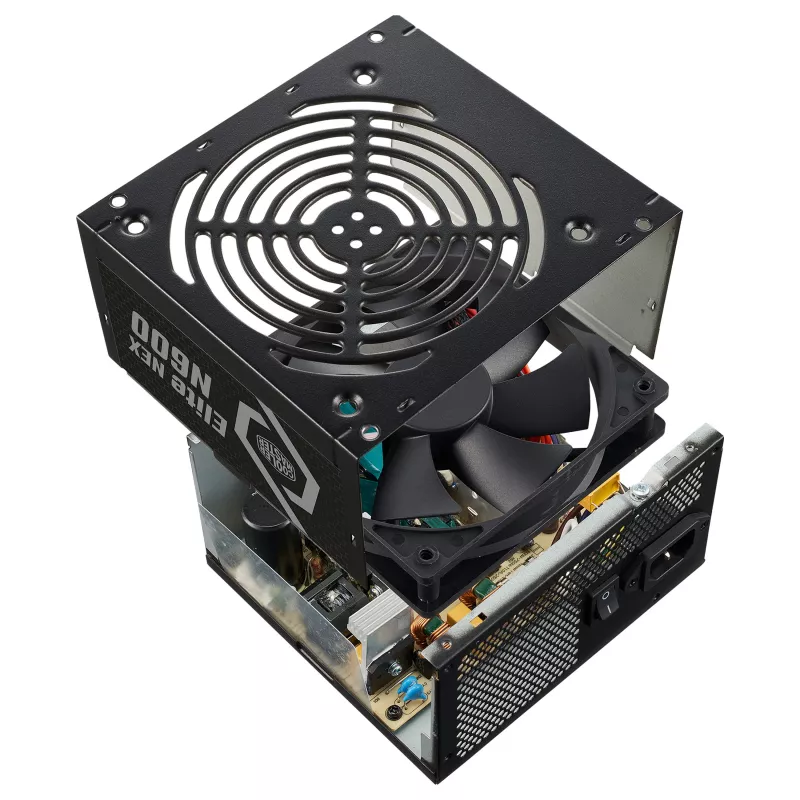

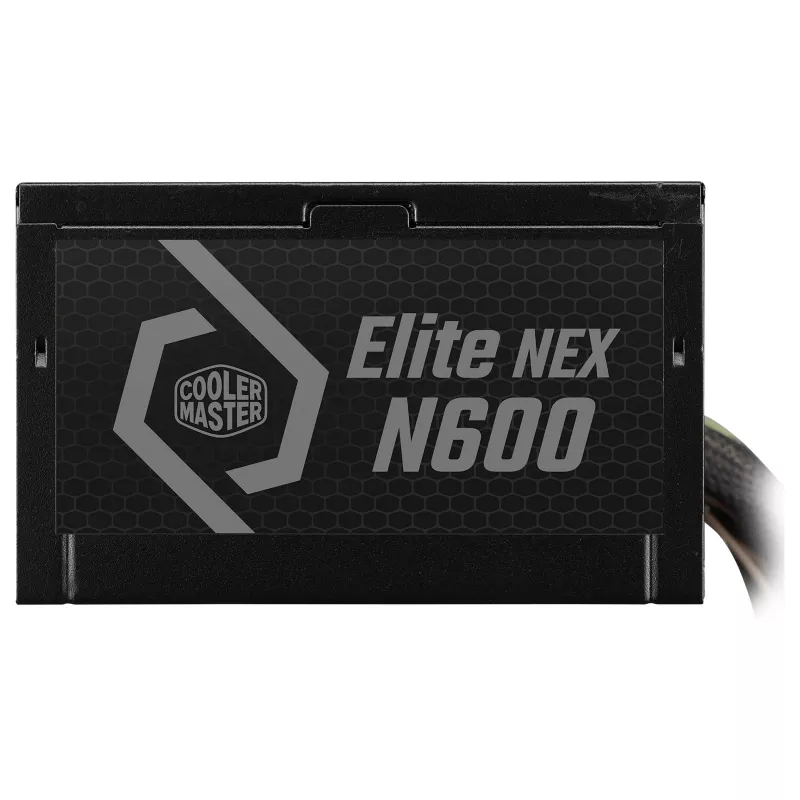

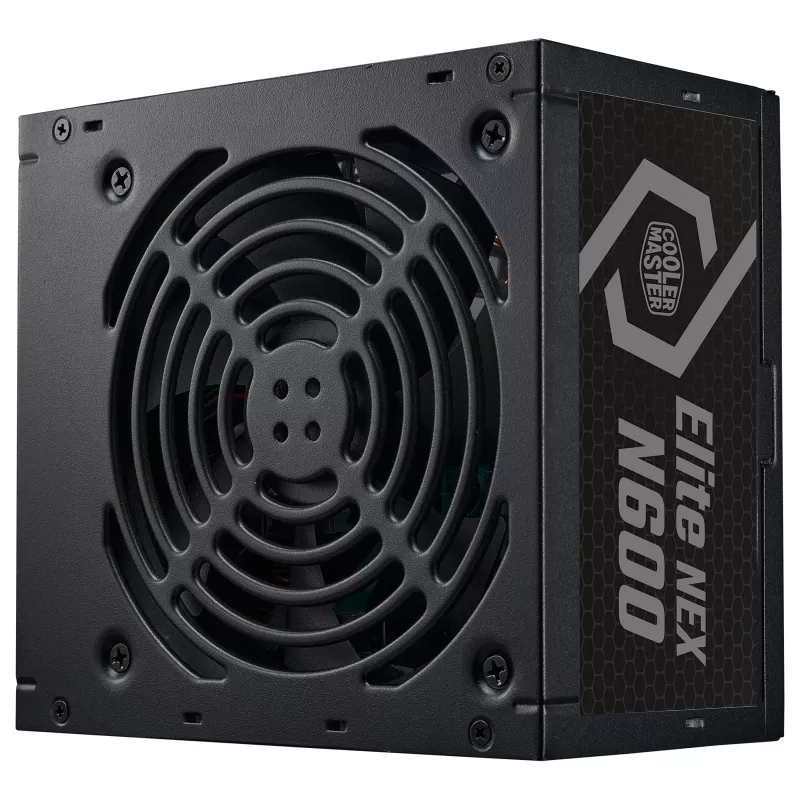

Cooler Master Elite NEX 230V 600 W Voeding

The Cooler Master Elite NEX 230V 600 is a reliable and efficient power supply unit designed for mainstream desktop systems. With a total power output of 600W and Active PFC, it delivers stable and clean power to your components. The 120mm fan with Hydro Dynamic Bearing ensures quiet and long-lasting operation. This non-modular PSU is ideal for budget-conscious builds that require dependable performance.

Advantages

High efficiency with 80 PLUS Standard certification, robust protection features including OVP, OPP, SCP, UVP, and OTP, and a long MTBF of over 100,000 hours ensure reliability and peace of mind.

Suitable for

• Home and office desktop computers
• Entry-level to mid-range gaming PCs
• Workstations requiring stable power delivery

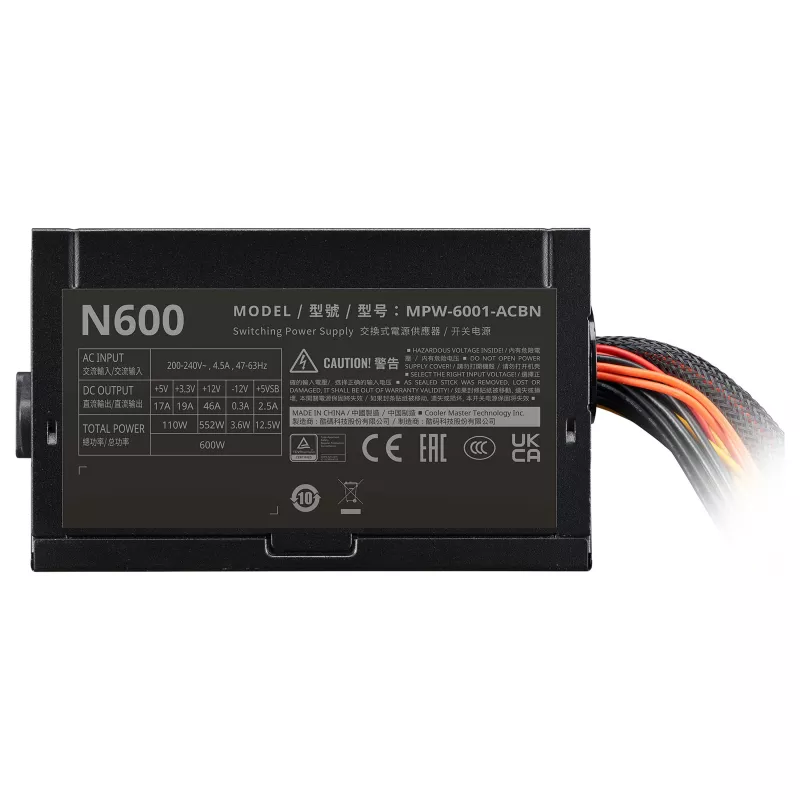

Key specifications

• Total Power: 600 W
• Efficiency: 80 PLUS Standard (230V EU)
• PFC Type: Active
• Form Factor: ATX 12V V2.3
• Input Voltage: 200 - 240 V
• Input Frequency: 50 - 60 Hz
• Fan Size: 120 mm
• Fan Bearing: Hydro Dynamic Bearing (HDB)
• Modularity: Non-Modular
• Connectors: 1x ATX 24-Pin, 1x EPS 4+4 Pin, 2x PCI-e 6+2 Pin, 6x SATA, 3x Peripheral 4-Pin (Molex)
• Protection: OVP, OPP, SCP, UVP, OTP
• MTBF: >100,000 hours
• +12V Rail Output: 45A (540W)
• Operating Temperature: 0 - 40 °C
• Certifications: CE, TUV, EAC, RCM, CCC

Recommendations

For a reliable and affordable power supply that meets the needs of most standard builds, the Cooler Master Elite NEX 230V 600 is an excellent choice. Its robust protection and quiet fan make it a solid foundation for your system.
