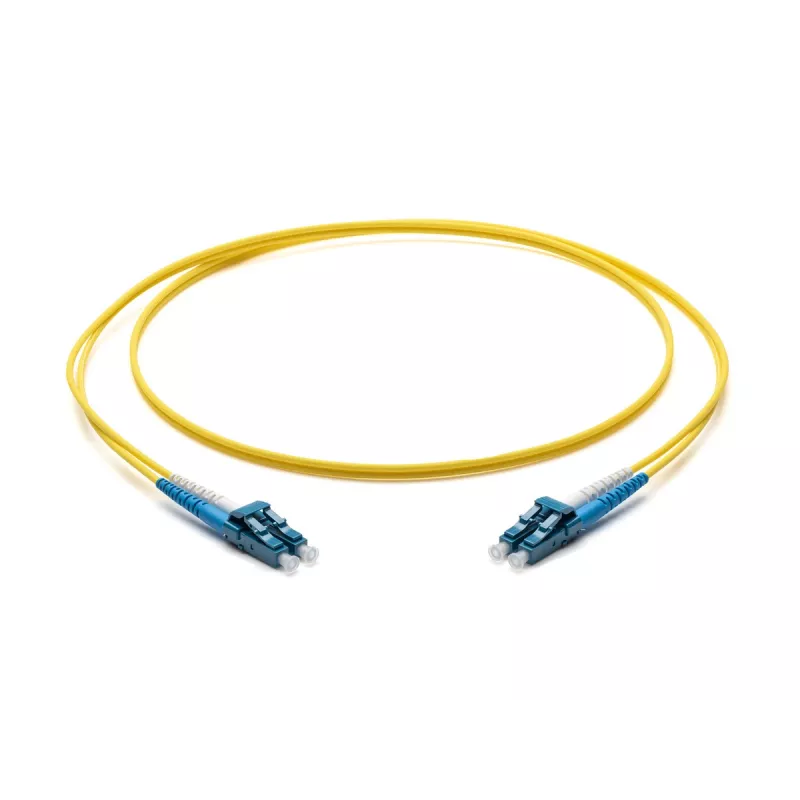

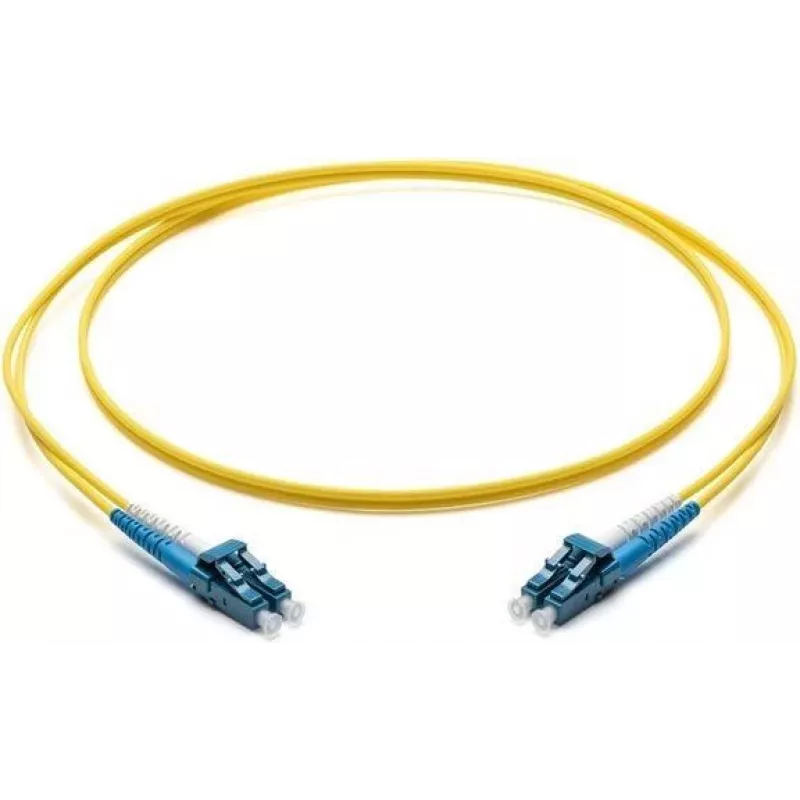

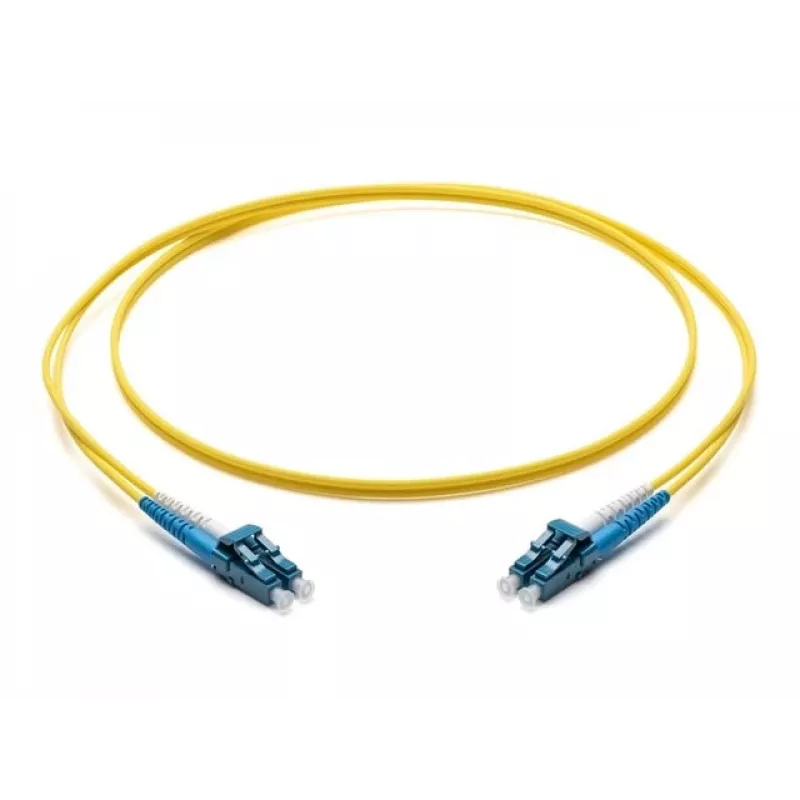

Corning LC/LC OS2 single-mode duplex glasvezel-patchkabel, 10m, geel F040402G2Z20010M

This Corning fiber optic patch cable stands out with its OS2 single-mode fiber and LC duplex connectors, providing a reliable 10-meter link for high-speed data transmission in demanding environments. Its yellow LSZH jacket ensures low smoke and zero halogen emissions, making it suitable for data centers and telecommunications rooms where safety and performance are critical.

Highlights

• OS2 single-mode fiber (9/125 µm) for long-distance, high-bandwidth connections
• LC duplex to LC duplex connectors with UPC polish for low insertion loss
• 10-meter length with yellow LSZH jacket for easy identification and safety
• Insertion loss ≤ 0.3 dB and return loss ≥ 50 dB for consistent signal integrity

In daily use

Ideal for patching between network equipment, patch panels, and fiber distribution frames. The duplex design supports bidirectional communication, while the 30 mm minimum bend radius allows for flexible routing in tight spaces. Operating temperature range of -20°C to 70°C ensures reliable performance in various environments.

Full specifications

• Fiber type: Single-mode OS2 (G.652.D)
• Connector type: LC Duplex to LC Duplex
• Fiber core/cladding diameter: 9/125 µm
• Cable length: 10 m
• Jacket color: Yellow
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Connector polish: UPC
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Minimum bend radius: 30 mm
• Operating temperature: -20°C to 70°C

Final note

Corning's OS2 patch cable delivers consistent, low-loss connectivity for modern fiber networks, backed by a durable LSZH jacket that prioritizes safety without compromising performance.
