CyberPower PDU10BVHVIEC20F stroomverdeeleenheid (PDU) 20 AC-uitgangen 0U zwart

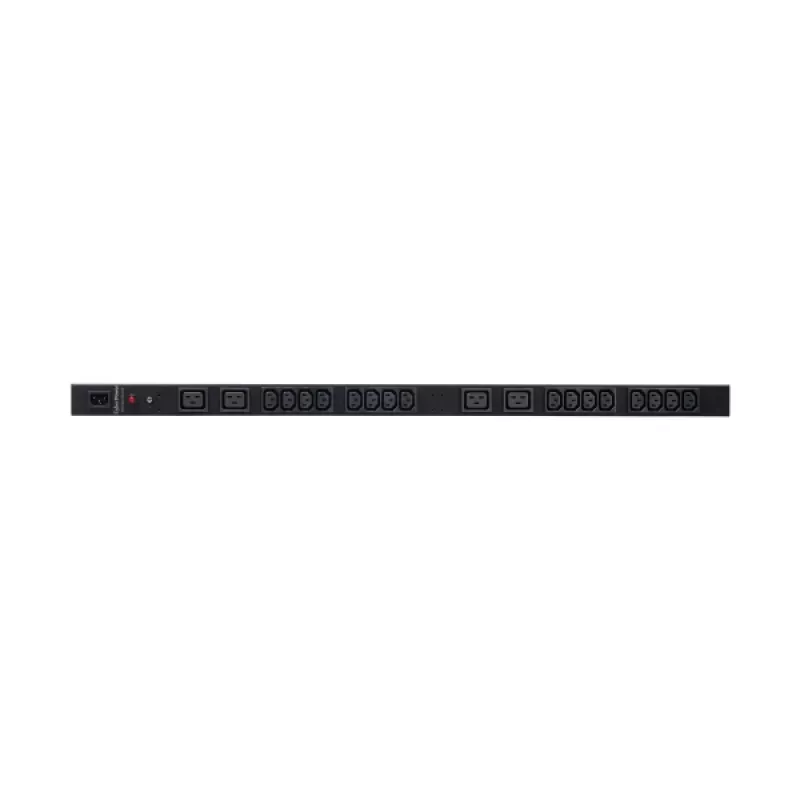

The CyberPower PDU10BVHVIEC20F is a 0U basic power distribution unit designed for rack-mounted and wall-mounted installations in data centers, server rooms and network closets. It provides 20 IEC-320 outlets (four C19 and sixteen C13) fed from a single IEC-320 C14 inlet, delivers nominal input voltage of 200–240 V and supports up to 10 A with unfiltered electrical pass-through. The unit features a metal housing, a 3.05 m (10 ft) power cord, and a compact vertical 0U form factor that preserves usable rack space while distributing power to multiple devices.

Advantages

The PDU offers a high outlet density with a mix of C19 and C13 receptacles to accommodate servers, switches and other IT equipment. Its rugged industrial-grade metal construction and cord retention tray enhance mechanical reliability in demanding environments. Compliance with CE, RoHS and UL/ETL safety standards ensures the device meets regulatory and safety requirements for professional installations. The 0U vertical design and multiple mounting options simplify deployment in crowded racks.

Suitable for

• Data center racks and colocation environments
• Server rooms and network cabinets
• Edge computing and telecommunications racks
• Wall-mounted power distribution for equipment closets

Key specifications

• Input voltage: 200–240 V AC, 50/60 Hz
• Maximum current: 10 A with built-in circuit breaker
• Output receptacles: 20 IEC-320 outlets (4 × C19, 16 × C13)
• Inlet type: single IEC-320 C14
• Cable length: 3.05 m (10 ft) power cord
• Form factor: 0U vertical rack mount; also supports horizontal and wall mount
• Housing: industrial-grade metal
• Colour: black
• Weight: 2 kg
• PDU type: Basic (unfiltered pass-through)

How to use

Install the PDU vertically in a 0U position alongside rack uprights or mount it horizontally or on a wall using the included mounting provisions. Connect the single IEC-320 C14 inlet to a compatible mains source or upstream power distribution unit, ensuring the supply matches the nominal 200–240 V and does not exceed the 10 A rating. Plug equipment into the C13 and C19 outlets as required. Position the cord retention tray to secure the power cable and route cables to avoid obstructing airflow or access to equipment. Verify circuit breaker settings and check connections before powering critical loads.

Recommendations

Use the PDU within the specified input voltage and current limits and distribute loads across C19 and C13 outlets to avoid overloading a single circuit. For high-availability deployments, combine this basic PDU with monitored or switched PDUs as part of a redundant power design. Periodically inspect the housing, inlet, outlets and power cord for signs of wear and ensure the installation complies with local electrical codes.
