Dahua HAC-ME1509TH-A-PV-0360B-S2 HDCVI-camera, wit

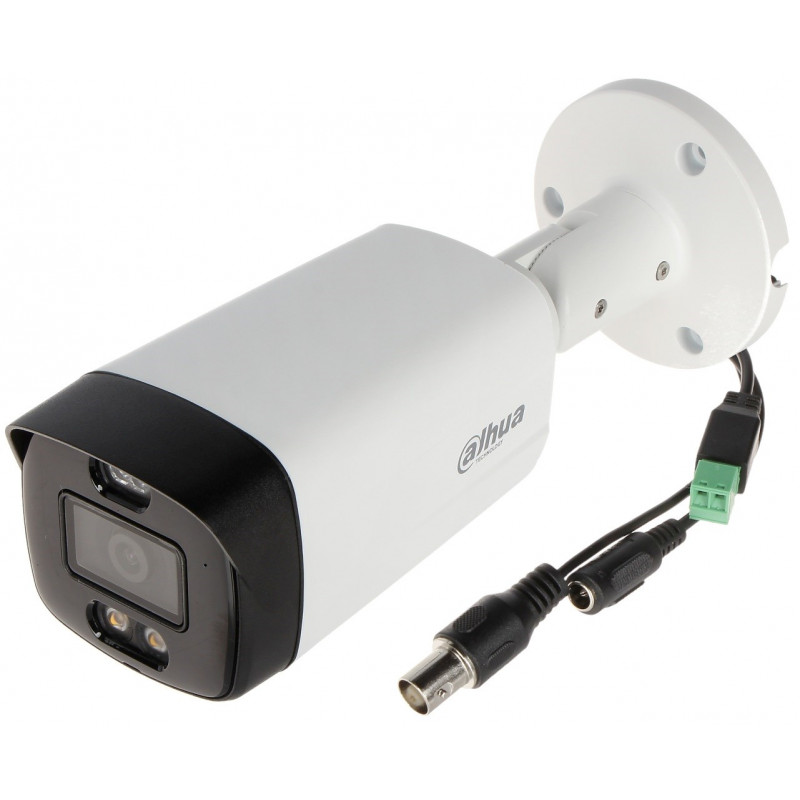

The Dahua HAC-ME1509TH-A-PV-0360B-S2 is a white bullet IP security camera with a 1/2.7" 5Mpx CMOS sensor and a built-in 3.6mm lens. It features full-color imaging, a built-in illuminator with two white-light LEDs, and a warning light with red/blue light and siren. It supports multiple resolutions and operating modes.

Key features

• 1/2.7" 5Mpx CMOS sensor
• Full-color camera
• Built-in 3.6mm lens
• Built-in illuminator with 2 white-light LEDs
• Built-in warning light (red/blue) and siren
• Resolution modes: 5Mpix, 4Mpix, 1080P
• Built-in 1 alarm output
• Illumination range up to 40m
• Functions: BLC, HLC, DWDR, AWB, AGC, 2DNR
• 4 operating modes: CVI, TVI, AHD, CVBS
• IP67 protection

Specifications

• Brand: DAHUA
• MPN: HAC-ME1509TH-A-PV-0360B-S2
• Product type: IP Security Camera
• Form factor: Bullet
• Product colour: White
• International Protection (IP) code: IP67
• Sensor: 1/2.7" 5Mpx CMOS
• Lens: 3.6mm
• Viewing angle: 83°
• Sensitivity: 0.005Lux / F2.0 (colour), 0Lux / F2.0 (LED on)
• Day/Night filter: Yes
• LEDs: 2 pcs, white light
• IR range: up to 40m
• Maximum resolution: 5Mpix (2592x1944)
• Operating modes: CVI - 5Mpix, 4Mpix, 1080P; TVI - 5Mpix; AHD - 5Mpix; CVBS - 960H
• Functions: BLC, HLC, DWDR, AWB, AGC, 2DNR
• Audio: -
• Alarm: 1 output, flashing light (red/blue), siren
• Operating temperature: -40 ~ 60°C
• Power supply: 12VDC
• Power consumption: -
