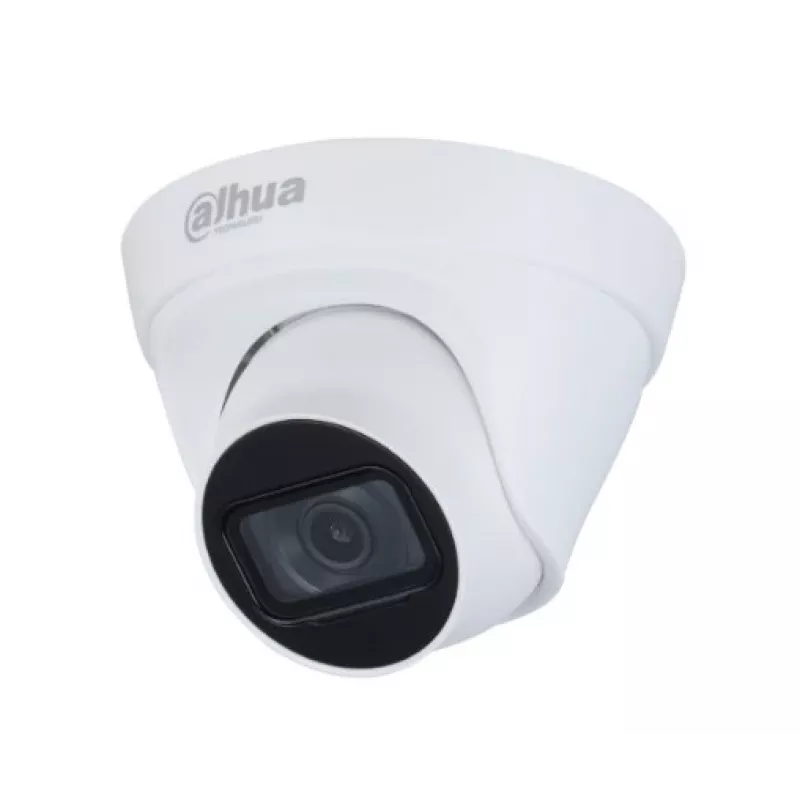

DAHUA IPC-HDW1230T1-0280B-S5-QH2 2MP IR eyeball dome IP camera

The DAHUA IPC-HDW1230T1-0280B-S5-QH2 is a high-performance 2 Megapixel IP camera designed for reliable surveillance in various indoor and outdoor environments. Featuring a 2.8mm fixed lens with a 106° horizontal field of view, this camera delivers clear 1080p resolution at 30fps. With advanced H.265 compression, IR night vision up to 30m, and IP67 weatherproof rating, it ensures 24/7 monitoring even in harsh conditions.

Advantages

This camera offers exceptional value with its combination of high-quality imaging, efficient compression, and robust build. The Digital WDR (DWDR) and 3D DNR technologies enhance image clarity in challenging lighting, while the built-in IR LEDs provide clear night vision. Power over Ethernet (PoE) simplifies installation, and the IP67 rating guarantees protection against dust and water.

Suitable for

• Outdoor perimeter surveillance
• Retail stores and offices
• Warehouses and parking lots
• Residential security

Key specifications

• Resolution: 2 Megapixel (1920x1080)
• Image Sensor: 1/2.8" Progressive CMOS
• Lens: 2.8mm fixed focal, F2.0
• Field of View: 106° horizontal
• IR Range: 30m (98.4ft)
• Video Compression: H.265/H.264/MJPEG
• Max Frame Rate: 30fps @ 1080P
• Day/Night: Auto (ICR), Color, B/W
• WDR: Digital WDR
• Noise Reduction: 3D DNR
• Power: 12V DC / PoE (802.3af)
• Max Power Consumption: 4.9W
• Ingress Protection: IP67
• Operating Temperature: -40°C to +60°C
• Network: 1x RJ-45 (10/100Base-T)
• Storage: NAS, FTP, SFTP, Dahua Cloud
• Smart Detection: Motion Detection, Video Tampering
• Form Factor: Eyeball Dome

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the camera is mounted securely and the lens is adjusted for the desired field of view. Regular firmware updates are recommended to maintain security and functionality.
