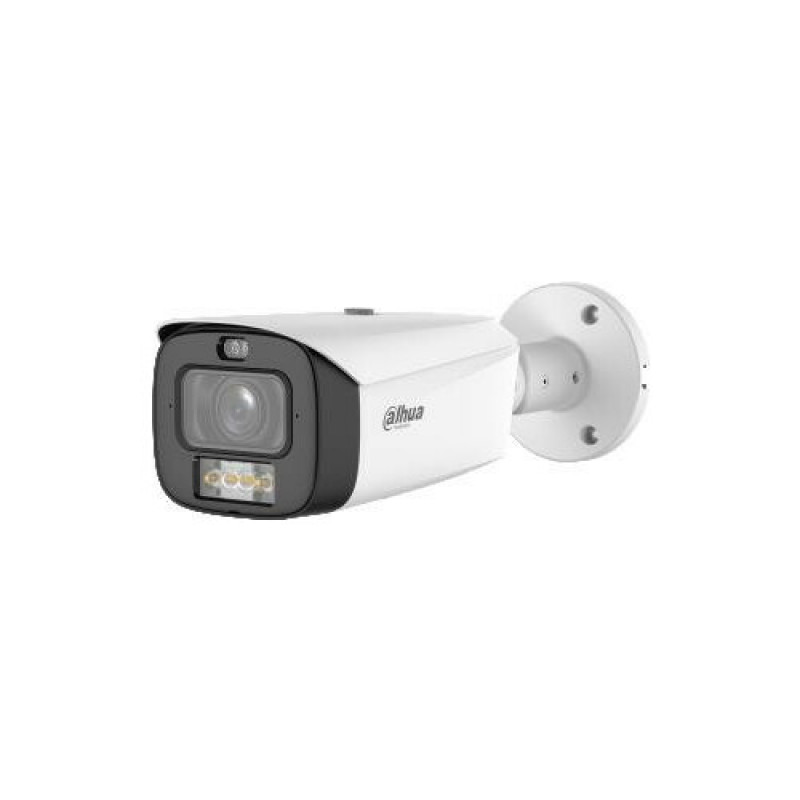

Dahua IPC-HFW3649T1-ZAS-PV-2712-PRO 6 MP buiten-IP-camera

The Dahua IPC-HFW3649T1-ZAS-PV-2712-PRO is a high-performance IP security camera designed for outdoor surveillance. It features a 1/1.8" CMOS sensor and delivers a maximum resolution of 6 MP (3288 × 1850) at 25/30 fps, ensuring clear and detailed images. With an IP67 rating, it is fully protected against dust and water, making it ideal for outdoor use.

Key features

• 1/1.8" CMOS sensor for high sensitivity in low light
• Maximum resolution 6 MP (3288 × 1850) at 25/30 fps
• H.265 compression for efficient encoding
• Built-in IR and warm light illumination, range up to 60 m
• Flexible video encoding: ROI, Smart H.264+/H.265+, AI H.264/H.265
• Advanced image features: rotation mode, WDR, 3D NR, HLC, BLC, digital watermark
• AI monitoring functions: intrusion, line crossing (with human/vehicle classification), loitering, face detection
• Anomaly detection: motion, privacy masking, scene change, audio detection, SD card errors, network disconnection, IP conflict, unauthorized access, voltage detection
• Alarm and audio I/O: 1 alarm in/1 out, 1 audio in/1 out, built-in dual microphones and speaker with two-way communication
• Micro SD card support up to 512 GB
• Power supply: 12 VDC or PoE
• IP67 protection

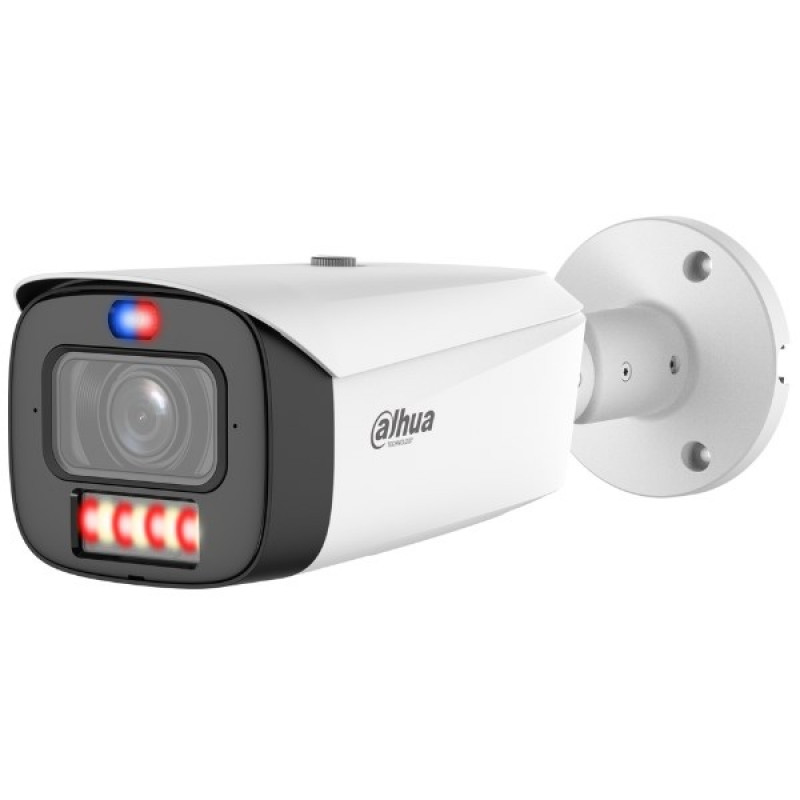

• Light and sound alarm with red and blue warning lights
• SMD 4.0 (Smart Motion Detection) for accurate human and vehicle detection
• AI SSA and one-click function support
• SMD area setting for alarms triggered in warm light zones

Specifications

• Brand: DAHUA
• MPN: IPC-HFW3649T1-ZAS-PV-2712-PRO
• Product type: IP Security Camera
• Maximum resolution: 6 MP
• Placement supported: Outdoor
• Connectivity technology: Wired
• Power source type: DC & PoE
• International Protection (IP) code: IP67
• Image sensor: 1/1.8" CMOS
• Maximum resolution: 3288 (H) × 1850 (V)
• ROM: 256 MB
• RAM: 1 GB
• Scanning system: Progressive
• Electronic shutter: Auto/Manual: 1/3 s – 1/100,000 s
• Minimum illumination: 0.0008 [email protected] (color, 30 IRE), 0.0003 [email protected] (B/W, 30 IRE), 0 lux (with illuminator on)
• S/N ratio: >56 dB
• Illumination range: Up to 60 m (IR), up to 60 m (warm light)
• Illumination control: Auto/Manual/Zoomprio
• Number of illuminators: 4 (multi-core – IR + warm light)
• Angle adjustment: Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360°
