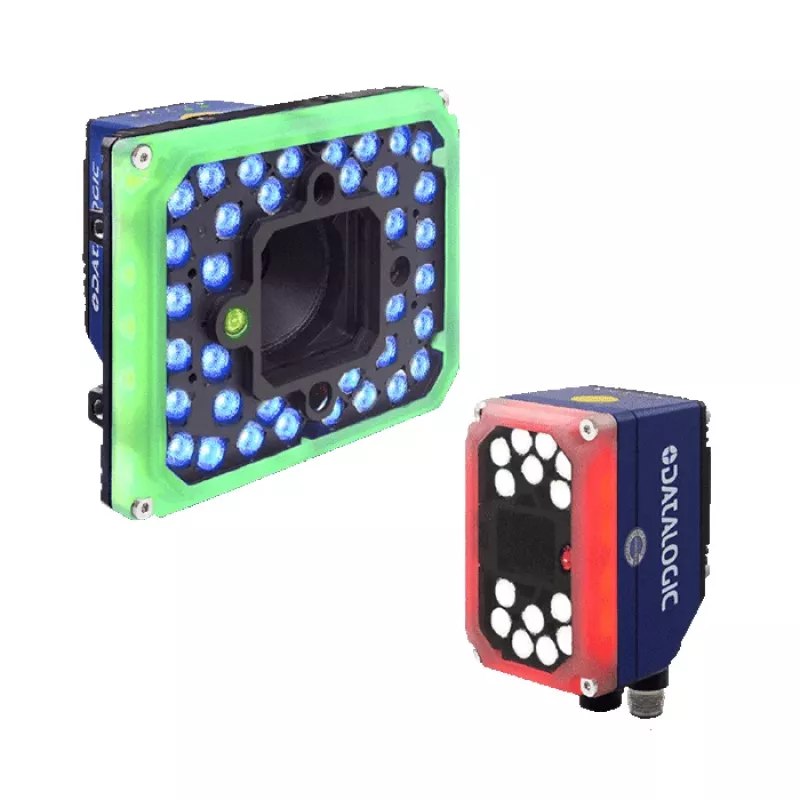

Datalogic Matrix 320, barcode-module barcodelezer, 1D/2D, CMOS, Aztec Code, Data Matrix, Intelligent Mail, MaxiCode, Micro QR Code, QR Code, 1920 x 1080 pixels, 150 cm

The Datalogic Matrix 320 stands apart from conventional fixed-mount readers by combining a 2-megapixel CMOS sensor with high-speed decoding of both 1D and 2D symbologies, including Aztec Code, Data Matrix, MaxiCode, Micro QR Code, and QR Code. Engineered for demanding industrial environments, this module delivers reliable performance at reading distances up to 150 cm, making it ideal for logistics, manufacturing, and automated inspection lines.

Highlights

• 1D and 2D barcode scanning with 1920 x 1080 pixel resolution
• Supports Aztec Code, Data Matrix, Intelligent Mail, MaxiCode, Micro QR Code, QR Code
• Wired connectivity via Ethernet, USB, and RS-232 for flexible integration
• Robust IP65-rated housing withstands dust and water jets
• Wide operating temperature range from 0°C to 50°C

In daily use

The Matrix 320 excels in high-throughput applications where speed and accuracy are critical. Its fixed-focus lens and red LED illumination ensure consistent reads on fast-moving conveyors, while the configurable interfaces allow seamless connection to PLCs, industrial PCs, or enterprise networks. The compact module can be mounted directly into machinery or enclosures, saving space without sacrificing performance.

Full specifications

• Brand: Datalogic
• Model: Matrix 320
• MPN: 938100067
• Scanner type: 1D & 2D
• Sensor type: CMOS
• Image sensor resolution: 1920 x 1080 pixels
• Supported 2D barcodes: Aztec Code, Data Matrix, Intelligent Mail, MaxiCode, Micro QR Code, QR Code
• Connectivity technology: Wired
• Standard interfaces: Ethernet, USB, RS-232
• Light source: Red LED
• Max. reading distance: 150 cm
• Operating temperature: 0 - 50 °C
• International Protection (IP) code: IP65
• Input voltage: 10 - 30 VDC
• Housing material: Industrial-grade aluminum/plastic
• Mounting type: Fixed Mount
• Configuration software: Datalogic DL.CODE
• Focus type: Fixed Focus

Final note

The Datalogic Matrix 320 is a future-proof investment for automated identification, offering industrial durability, versatile connectivity, and comprehensive barcode support in a single compact module.
