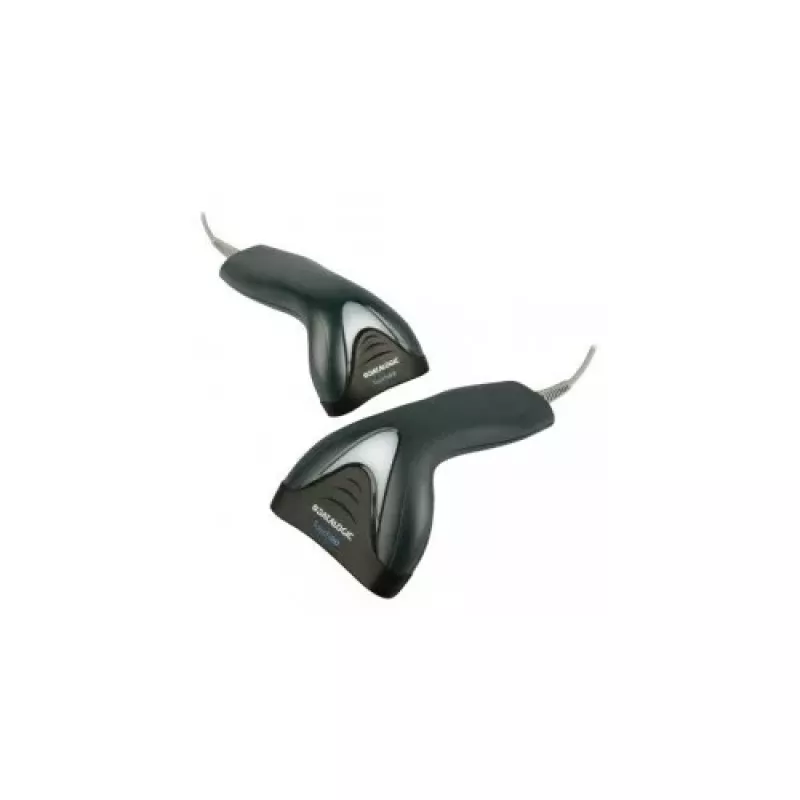

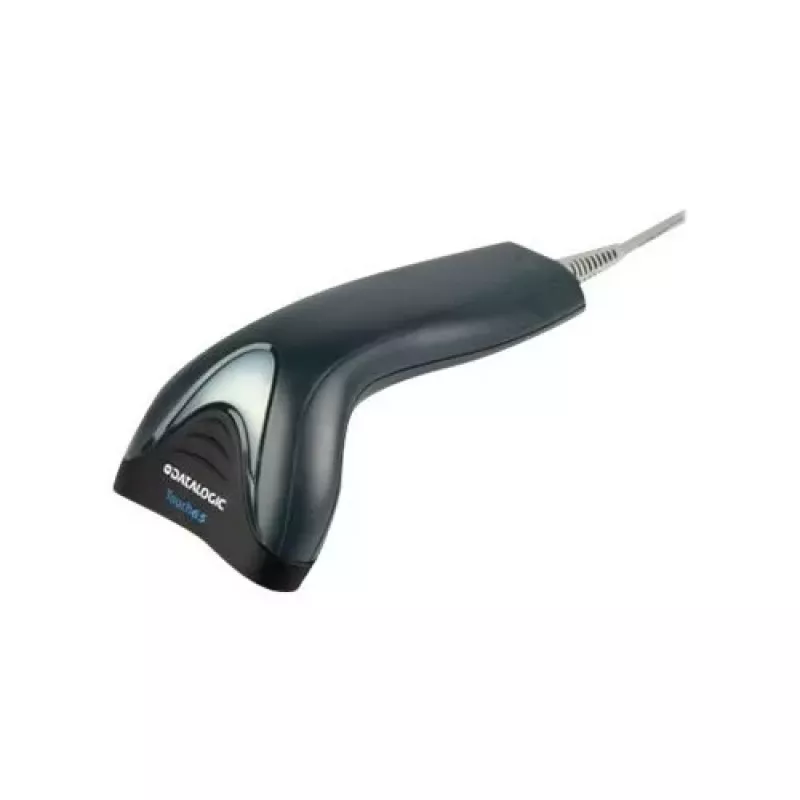

Datalogic Touch TD1120-BK-65 bedrade 1D-barcodescanner, zwart

The Datalogic Touch TD1120-BK-65 is a high-performance wired 1D barcode scanner designed for fast and accurate scanning in retail, warehouse, and office environments. Featuring advanced linear imager technology, it reads all common 1D barcodes with ease, including EAN/UPC, Code 39, Code 128, and GS1 DataBar. Its ergonomic design and Datalogic Green Spot technology provide instant visual confirmation of successful scans, reducing errors and increasing productivity.

Advantages

With a drop resistance of 1.5 m (5 ft) onto concrete and an IP30 rating, the TD1120-BK-65 is built to withstand daily wear and tear. The included desk/wall mount stand and USB cable make setup simple, while the 2.0 m cable length offers flexibility in workstation arrangement. The red LED light source and beeper provide clear feedback, and the scanner supports multiple USB interfaces (HID Keyboard, USB COM Emulation) for easy integration.

Suitable for

• Retail point-of-sale (POS) systems
• Warehouse inventory management
• Office document tracking
• Healthcare asset identification
• Logistics and shipping

Key specifications

• Scan Technology: Linear Imager
• Barcode Symbologies: 1D (EAN/UPC, Code 39, Code 128, GS1 DataBar, etc.)
• Connectivity: Wired USB
• Light Source: Red LED (610-650 nm)
• Minimum Resolution: 0.102 mm / 4 mils
• Depth of Field: 5 mils: 2.5 to 15.0 cm; 13 mils: 2.5 to 35.0 cm
• Drop Resistance: 1.5 m (5 ft) onto concrete
• IP Rating: IP30
• Operating Temperature: 0 to 50 °C (32 to 122 °F)
• Storage Temperature: -20 to 70 °C (-4 to 158 °F)
• Humidity: 5 - 95% (non-condensing)
• Color: Black
• Good Read Feedback: Datalogic Green Spot, Beeper, Good Read LED
• Power Consumption: 170 mA @ 5 VDC
• Included Accessories: USB Cable, Desk/Wall Mount Stand
• Cable Length: 2.0 m (6.6 ft)

Recommendations

For optimal performance, ensure the scanner is connected to a USB port that provides 5 VDC. The included stand can be used for hands-free scanning. Compatible with Windows, Linux, and mobile operating systems via USB HID or COM emulation.
