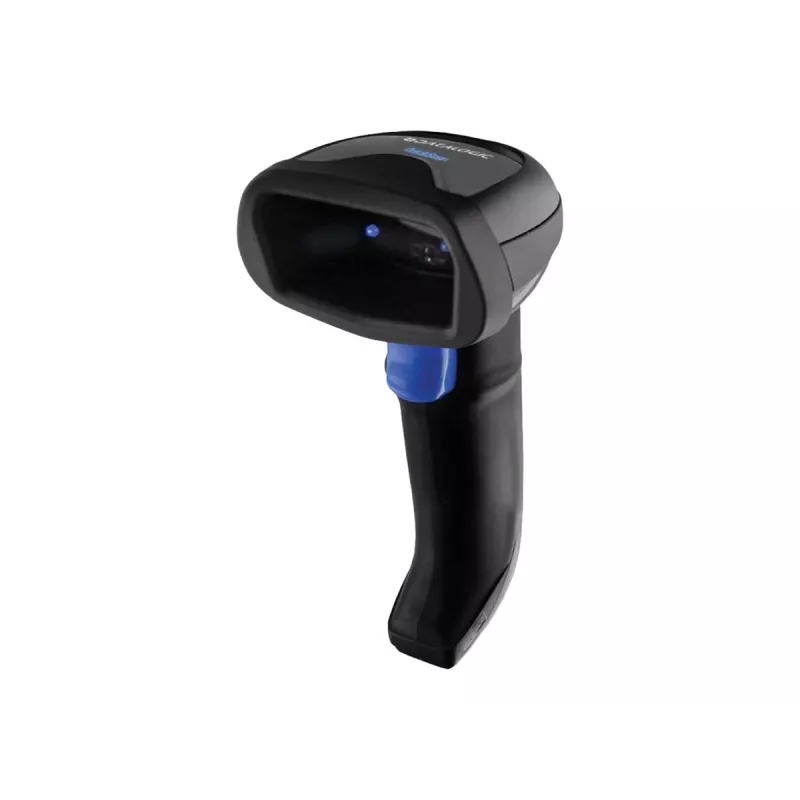

Handbarcodeleser Datalogic QBT2500-BK

The Datalogic QBT2500-BK handheld bar code reader supports both 1D and 2D barcodes and is designed for retail point-of-sale and general data capture tasks. It reads poorly printed or damaged codes, scans mobile phone displays and works through plexiglass barriers. Available in wired and wireless variants, the device uses Bluetooth or STAR cordless radio and features an IP52 rating, a 3250 mAh Li‑Ion battery, and a compact, lightweight design for continuous use at checkout or on the sales floor.

Advantages

The QBT2500-BK delivers fast, reliable reads across a wide range of barcode types, including GS1 DataBar and common 2D symbologies such as QR Code and Data Matrix. Visual aiming aids (blue dot or dual-triangle aimer depending on model) and Datalogic’s Green Spot confirm successful scans. Soft red illumination reduces operator eye fatigue, and adjustable beeper volume provides audible feedback. Wireless models offer Bluetooth or STAR cordless communications to reduce interference in busy environments.

Suitable for

• Point-of-sale (checkout) barcode scanning
• Reading barcodes on mobile phones and loyalty cards
• Retail environments with plexiglass barriers
• Environments requiring wired or wireless connectivity (Bluetooth, RS-232, USB, STAR)

Key specifications

• Scanner type: 1D/2D imager
• Supported barcodes: GS1 DataBar; 2D: QR Code, Data Matrix, Aztec Code, MaxiCode, Han Xin, Dot Code A
• Connectivity: Wired & Wireless (Bluetooth, RS-232, USB; STAR cordless on QM models)
• Battery: 3250 mAh Lithium‑Ion
• Protection rating: IP52
• Weight: 0.2065 kg
• Colour: Black
• Model / MPN: QBT2500-BK

How to use

Hold the scanner at a comfortable distance and align the aiming mark with the barcode. Pull the trigger or use continuous scan mode to capture the code; the Green Spot and beeper indicate a successful read. For mobile phone screens, ensure the display brightness is adequate and angle the device to avoid reflections. Switch between wired and wireless connections using the scanner’s configuration procedure and pair via Bluetooth or the STAR base as required.

Recommendations

For reliable performance, keep the scanner window clean, charge the 3250 mAh battery regularly, and choose the wireless option that best fits your environment—Bluetooth for standard setups or STAR cordless for high-interference areas.
