Dataswitch DeLOCK 87761

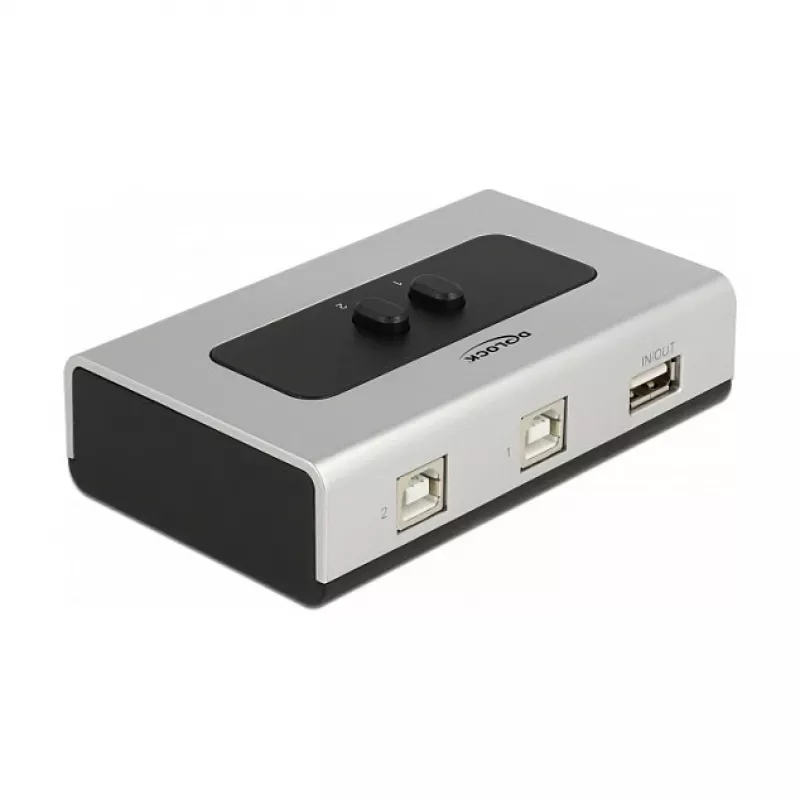

The DeLOCK 87761 Data Switch is a bidirectional USB 2.0 device that allows two computers to share a single USB Type-A peripheral. The compact plastic housing (71 × 112 × 32 mm) in black and silver provides a simple, space-saving solution for switching access to printers, card readers, external hard drives and similar USB devices. The switch supports USB 2.0 data rates up to 0.48 Gbit/s.

Advantages

The unit enables straightforward manual switching between two hosts using the dedicated buttons, requires no software installation, and supports a wide range of USB Type-A peripherals. Its compact form factor and durable plastic construction make it suitable for desktop or small-office setups.

Suitable for

• Sharing a single USB printer between two computers
• Accessing external storage devices from one of two hosts
• Switching a card reader between multiple workstations
• Small office or home office environments with limited USB peripherals

Key specifications

• Model: DeLOCK 87761
• Interface: USB 2.0 (Type-A)
• Maximum data rate: 0.48 Gbit/s
• Dimensions: 71 × 112 × 32 mm (W × D × H)
• Material: Plastic
• Colour: Black, Silver
• MPN: 87761
• EAN: 4043619877614

How to use

Connect the peripheral device to the USB Type-A port on the switch and connect the two host computers to the switch’s host ports. Use the front buttons to select which computer should have access to the connected USB device. The device requires no additional drivers; operating systems will recognise the peripheral once the switch directs the connection to a host.

Recommendations

For reliable operation, connect only one active USB device at a time and avoid switching during large file transfers. Place the switch on a stable surface to prevent accidental button presses and ensure cable lengths follow USB 2.0 guidelines for optimal signal quality.
