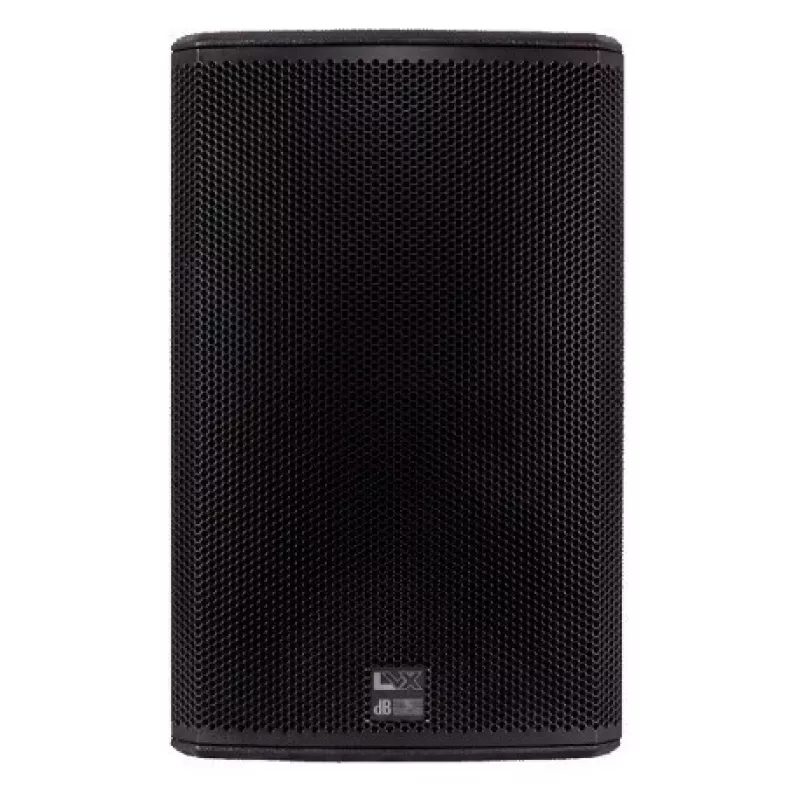

dBTechnologies LVX-15 actieve 15 inch 2-weg luidspreker 600W

The dBTechnologies LVX-15 is a powerful 2-way active loudspeaker designed for professional sound reinforcement. Featuring a 15" woofer and a 1" compression driver, it delivers 600W RMS (1200W peak) of clean, high-output audio. The Digipro G2/G3 Class D amplifier ensures efficiency and reliability, while the built-in DSP with Flat/Boost presets allows quick adaptation to various environments. The birch plywood cabinet with full metal grille ensures durability on the road.

Advantages

High SPL of 128 dB max, lightweight and portable design, versatile input options including combo XLR/TRS and RCA, and robust construction for touring and installation.

Suitable for

• Live music performances
• DJ events
• Portable PA systems
• Fixed installations in clubs, bars, and houses of worship

Key specifications

• Speaker Type: 2-Way Active Loudspeaker
• Woofer: 15 inch (381 mm)
• Compression Driver: 1 inch exit, 1.75 inch voice coil
• Amplifier: Digipro G2/G3 Class D
• Total RMS Power: 600 W (400 W LF + 200 W HF)
• Peak Power: 1200 W
• Frequency Response (-10dB): 49 - 20,000 Hz
• Max SPL: 128 dB
• Dispersion: 90° x 40°
• Crossover Frequency: 1800 Hz
• DSP: 24-bit/48 kHz, Flat/Boost Presets
• Inputs: 1x XLR/TRS Combo (Mic/Line), 1x XLR (Line), 1x RCA Stereo
• Outputs: 1x XLR Link Out
• Cabinet Material: Birch Plywood
• Mounting: 36 mm Pole Mount, 3x M10 Fly Points
• Grille: Full Metal Grille
• Limiter: Dual Active Peak, RMS, Thermal
• Power Supply: IEC Connector

Recommendations

For optimal performance, pair with a dBTechnologies subwoofer and use high-quality XLR cables. Ensure proper gain staging to avoid distortion.
