DeLOCK 90768 Keystone-module plat grijs RJ-45

The DeLOCK 90768 keystone module is a flat grey RJ-45 coupler designed to connect or extend two Ethernet cables. With a compact footprint (40.2 mm × 45.2 mm × 26.8 mm) and a centric RJ-45 port, it fits into patch panels or mounting frames and is intended for reliable network connections in installations where space is limited.

Advantages

The module offers a flat, space-saving design in grey finish and provides a standard RJ-45 interface for easy connection of Ethernet cables. It supports direct coupling of two RJ45 network cables and includes DIN rail mounting capability for installation in switch cabinets or distribution boxes, enabling tidy and secure placement within network infrastructure.

Suitable for

Key specifications

How to use

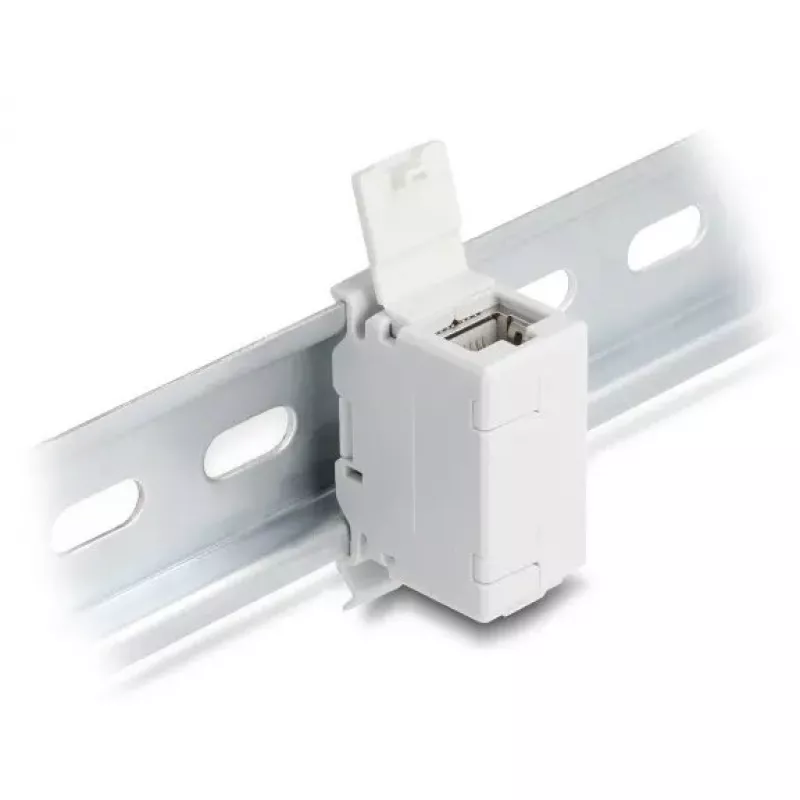

Mount the module onto a 35 mm DIN rail if permanent placement in a switch cabinet or distribution box is required, ensuring it is securely latched. Insert one RJ45 cable connector into each side of the coupler until they click into place. Verify the physical connections and test network continuity using standard network testing tools to confirm proper link and signal integrity.

Recommendations

Use the keystone module within a dry, dust-free environment and avoid excessive mechanical stress on connected cables. For structured installations, route and fix cables to prevent strain on the RJ-45 connectors and perform a continuity or network performance check after installation.
