DeLOCK M12 adapter D-gecodeerd 4-polig bus naar RJ45-bus recht

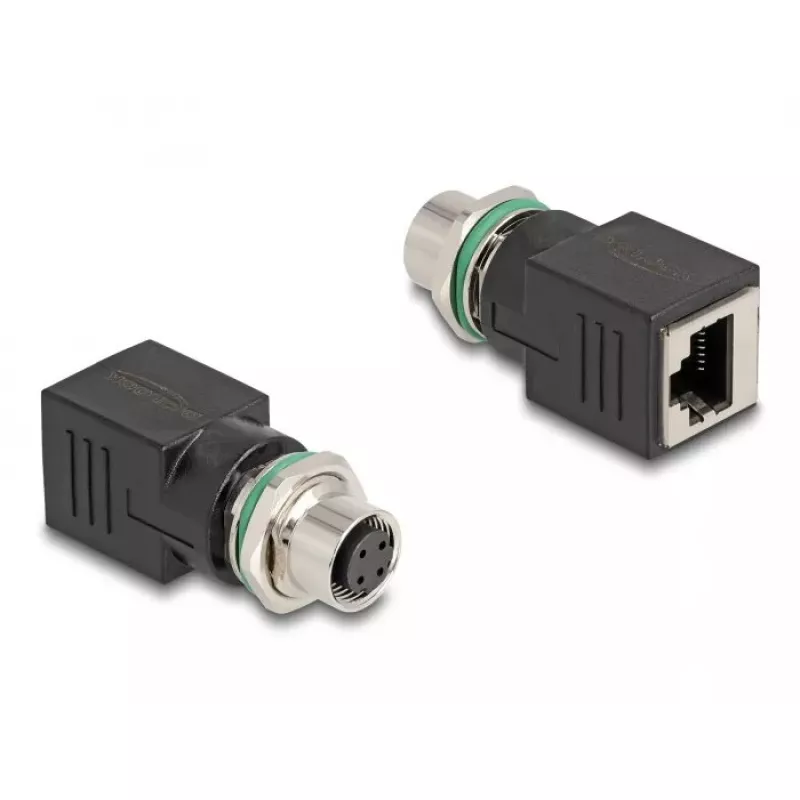

This industrial Ethernet adapter by DeLOCK connects devices with an M12 D-coded 4-pin female connector to a standard RJ45 jack. Its compact black housing and gold-plated contacts provide reliable signal transmission for machine control and automation environments, and the adapter is suitable for integration into existing network structures and switch cabinets.

Advantages

The adapter offers a compact design that fits easily into switch cabinets, gold-plated contacts for stable connectivity and corrosion resistance, and a D-coded M12 interface that ensures correct mating with industrial Ethernet devices. A straight RJ45 jack provides compatibility with common Ethernet patch cables.

Suitable for

• Connecting industrial sensors or actuators with M12 D-coded connectors to standard Ethernet networks
• Machine control and factory automation wiring
• Integration of M12-equipped devices into switch cabinets and network racks

Key specifications

• Brand: DELOCK
• Model / MPN: 60060
• EAN: 4043619600601

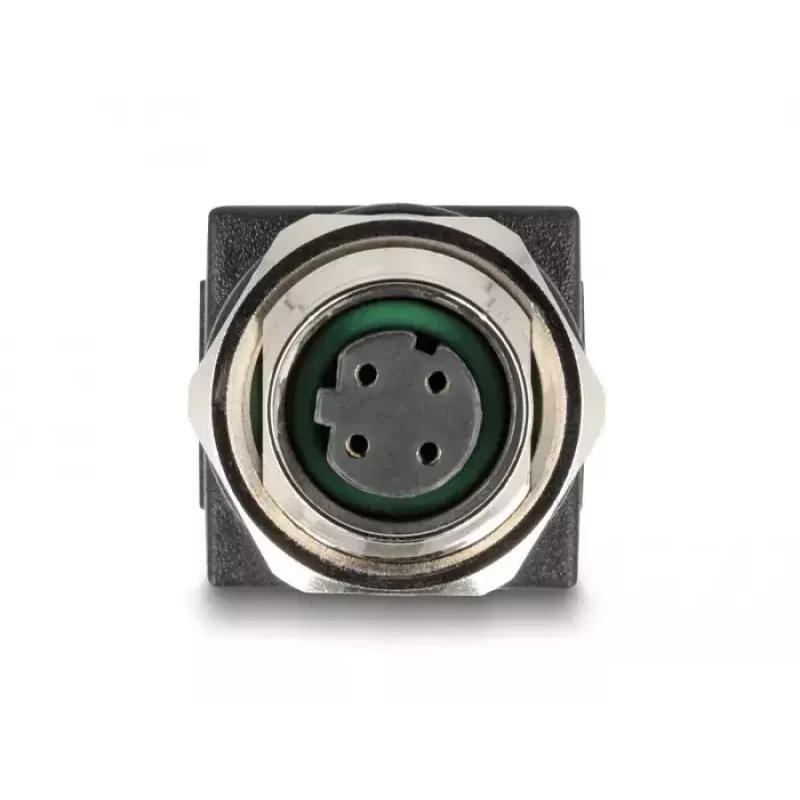

• Connector 1: M12 D-coded 4-pin female
• Connector 2: RJ-45 jack (straight)
• Product colour: Black
• Application: Industrial Ethernet / automation

How to use

Plug the M12 D-coded 4-pin female end into the corresponding male M12 port on the industrial device. Insert a standard RJ45 Ethernet cable into the RJ45 jack to connect to the network switch or patch panel. Ensure correct seating of both connectors and secure any required cable routing inside the switch cabinet to avoid strain.

Recommendations

Use the adapter in environments matching the device connectors (M12 D-coded to RJ45) and avoid exposing it to conditions beyond the equipment’s rated specifications. For installation in switch cabinets, allow sufficient clearance for connector access and avoid sharp bends in attached cables.
