DeLOCK M12 connector A-gecodeerd 8-polig stekker schroefaansluiting

The DeLOCK M12 Connector A-coded 8 pin male screw connection is a metal A-coded M12 plug with eight contacts and a screw terminal for attaching wires. It is designed to provide a reliable electrical connection for machine control, automation and other industrial applications where a robust M12 interface is required. The connector measures 56 mm in width and 20 mm in depth and is finished in black and silver.

Advantages

The metal housing and screw terminal ensure mechanical stability and secure contact retention. The A-coded 8-pin configuration supports multiple signal or power lines in a single connector. The compact dimensions allow installation in confined spaces while maintaining the standardized M12 interface for compatibility with existing equipment.

Suitable for

• Machine control systems
• Industrial automation sensors and actuators
• Signal and low-voltage power connections in control cabinets
• Field wiring where an M12 A-coded male connector is required

Key specifications

• Brand: DELOCK
• Model / MPN: 60535
• EAN: 4043619605354
• Type: M12 A-coded male connector, 8 pins
• Connection: Screw terminal
• Material: Metal housing

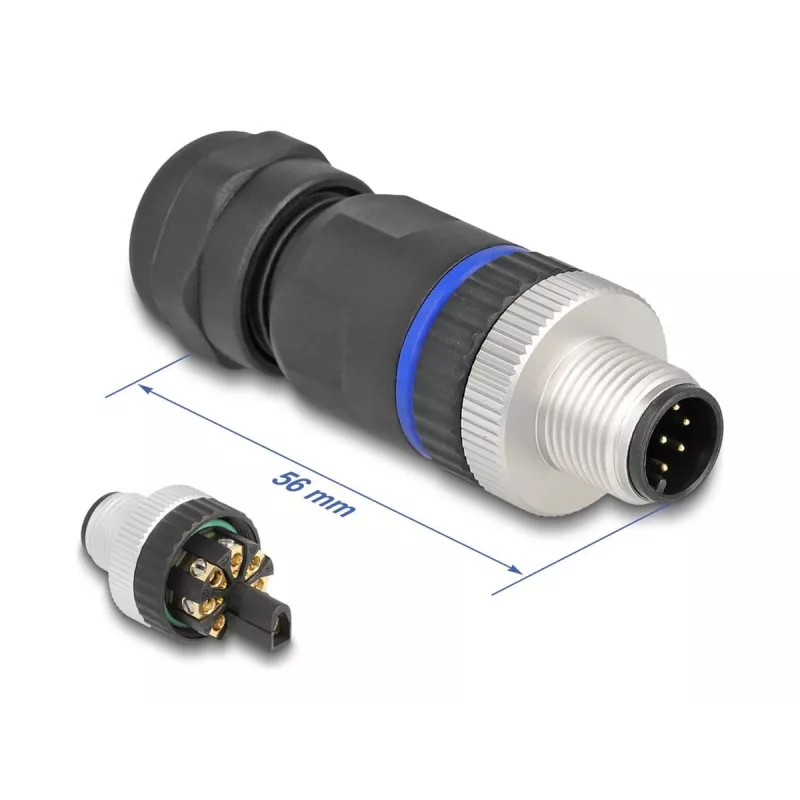

• Dimensions: 56 mm (width) x 20 mm (depth)
• Colour: Black, Silver

How to use

Strip the cable conductors to the recommended length, insert each conductor into the corresponding screw terminal and tighten the screws to secure the wires. Verify correct pin assignment according to your wiring diagram before applying power. Plug the M12 male connector into the matching A-coded female receptacle and ensure the mechanical latch or coupling nut is correctly engaged.

Recommendations

Use appropriate wire cross-sections and torque values for the screw terminals; follow relevant installation and safety standards for industrial equipment. Inspect connections periodically for corrosion or looseness in high-vibration environments.
