DeLOCK USB-adapter pinheader bus naar interne Type-E Key A bus 20-pins

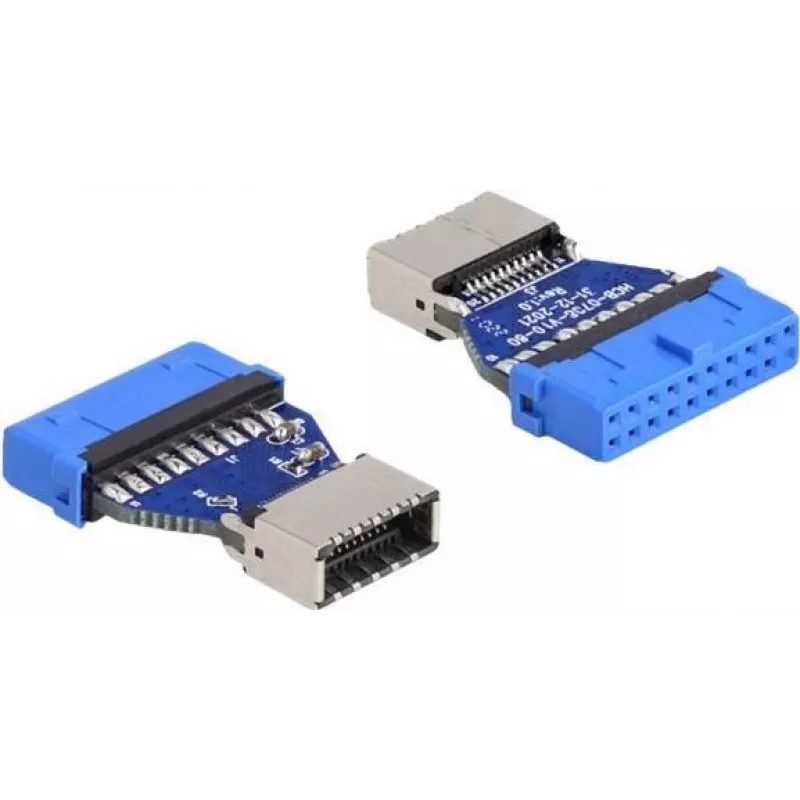

This DeLOCK adapter converts an internal 20‑pin USB 3.0 pin header to an internal Type‑E Key A female connector. It enables connection of various internal USB cables to provide either a USB Type‑C or USB Type‑A interface and supports USB 3.2 Gen 1 for high‑speed data transfer.

Advantages

The adapter is compact and simple to install, provides compatibility between a 20‑pin USB 3.0 header and an internal Key A female connector, and supports USB 3.2 Gen 1 speeds for reliable data transmission. It allows flexible use of internal USB cables to add Type‑A or Type‑C ports without modifying the motherboard header.

Suitable for

• Connecting internal USB cables to a 20‑pin USB 3.0 motherboard header
• Adding internal USB Type‑A or Type‑C ports in desktop PC builds
• System builders and installers who need to adapt internal connectors

Key specifications

• Brand: DELOCK
• MPN: 66233
• EAN: 4043619662333
• Connector 1: 20 pin USB 3.0 pin header
• Connector 2: USB (USB 3.2 Gen 1) Key A 20 pin female
• Supported standard: USB 3.2 Gen 1 (SuperSpeed, up to 5 Gbps)

How to use

Align the adapter with the motherboard's internal 20‑pin USB 3.0 header and press it onto the pins ensuring correct orientation. Connect the internal USB cable with a matching Key A female connector to the adapter. Verify the connection and cable routing before powering the system.

Recommendations

Use this adapter inside a powered‑off system to avoid short circuits. Ensure proper pin alignment and avoid forcing the connector; secure and route internal cables to prevent strain on the header.
