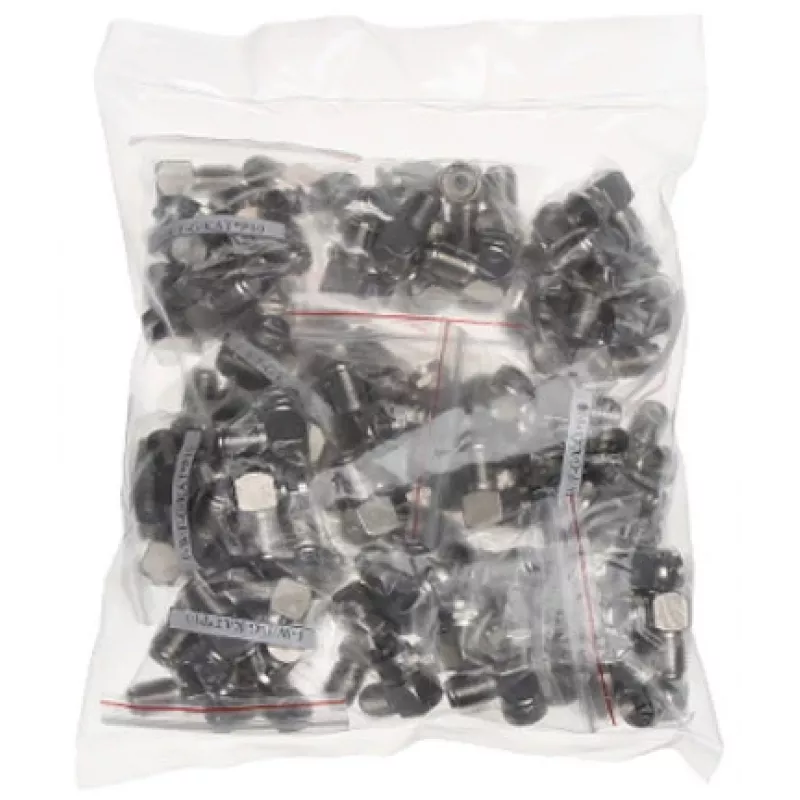

DELTA F-type haakse adapter stekker naar bus vernikkeld 75 Ohm

This F-type right-angle adapter provides a 90-degree connection between an F male and F female connector, solving tight-space installation challenges in satellite, cable TV, and terrestrial antenna systems. Its nickel-plated brass body ensures durable, corrosion-resistant performance with excellent shielding and low signal loss across a 0–3 GHz frequency range.

Advantages

The right-angle design allows cables to be routed flush against walls or inside cabinets, reducing strain and preventing sharp bends. Precision-machined threads ensure a secure, reliable connection, while PTFE dielectric and high-quality contacts maintain signal integrity with insertion loss below 0.5 dB and return loss above 20 dB.

Suitable for

• Satellite and cable TV installations
• Terrestrial antenna systems
• Wall plates and recessed outlets
• Coaxial cable management in tight spaces

Key specifications

• Connector 1: F-type male
• Connector 2: F-type female
• Angle: 90° (right-angle)
• Impedance: 75 Ohm
• Frequency range: 0–3 GHz
• Material: Nickel-plated brass
• Dielectric: PTFE
• Insertion loss: < 0.5 dB
• Return loss: > 20 dB
• Operating temperature: -20°C to +65°C
• Durability: 500 mating cycles

Recommendations

For professional installers and DIY enthusiasts, this adapter is an essential tool for achieving clean, reliable coaxial connections in constrained environments. Pair it with high-quality RG6 or RG59 cables for optimal performance.
