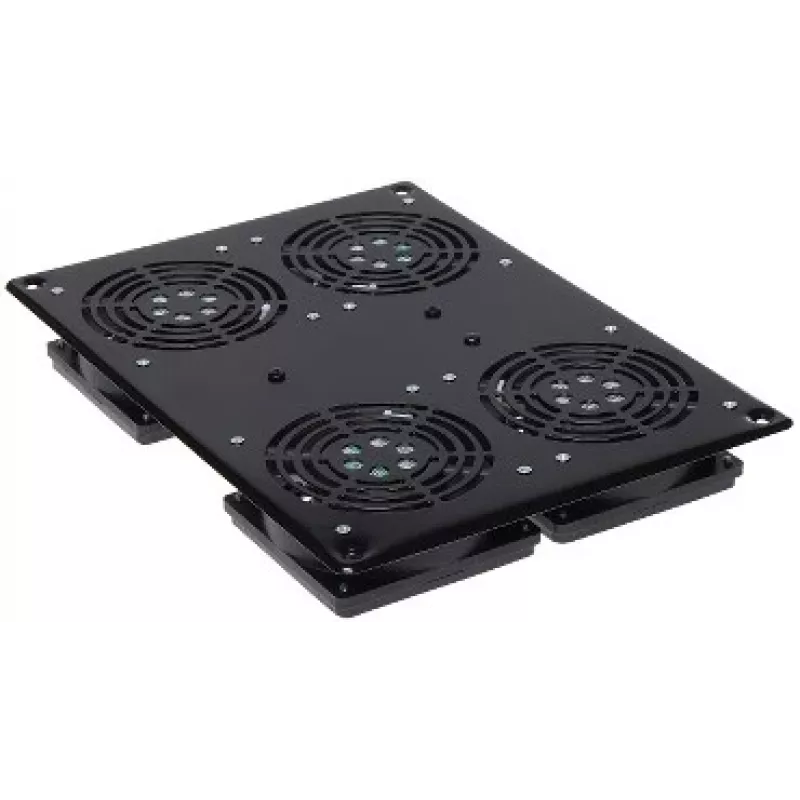

DELTA OPTICAL A19-4W 19 inch 1U ventilatorpaneel voor rackschrank, 4x120mm, 230V AC, zwart

The DELTA OPTICAL A19-4W is a professional 19-inch 1U fan panel designed for efficient cooling of rack cabinets. Equipped with four high-performance 120mm fans, it delivers a total airflow of 400 CFM at 2200 RPM, ensuring optimal temperature management for your network and server equipment. The robust steel construction and black finish provide durability and a sleek appearance. With an integrated on/off switch and a 1.8m power cable, installation is straightforward. This fan panel operates on 230V AC (50/60 Hz) and consumes only 22W, making it an energy-efficient cooling solution.

Advantages

Efficient cooling with four 120mm fans delivering 400 CFM airflow. Low noise level of 45 dB ensures quiet operation. Easy front rack mount installation in any standard 19-inch cabinet. Durable steel housing with black finish. Integrated on/off switch for convenient control.

Suitable for

• Cooling network switches, servers, and other rack-mounted equipment
• 19-inch rack cabinets requiring additional ventilation
• Data centers, server rooms, and IT closets

Key specifications

• Rack Standard: 19"
• Rack Units: 1U
• Number of Fans: 4
• Fan Diameter: 120 mm
• Fan Speed: 2200 RPM
• Total Airflow: 400 CFM
• Noise Level: 45 dB
• Input Voltage: 230V AC
• Input Frequency: 50/60 Hz
• Power Consumption: 22W
• Power Connector: IEC C14
• Material: Steel
• Colour: Black
• Mounting Type: Front Rack Mount
• Operating Temperature: 0°C to 50°C
• On/Off Switch: Yes
• Power Cable Length: 1.8 m

Recommendations

For optimal cooling performance, install the fan panel at the top or bottom of the rack to create proper airflow. Ensure the rack has adequate ventilation openings. This fan panel is ideal for environments where equipment generates moderate heat and requires reliable, low-noise cooling.
