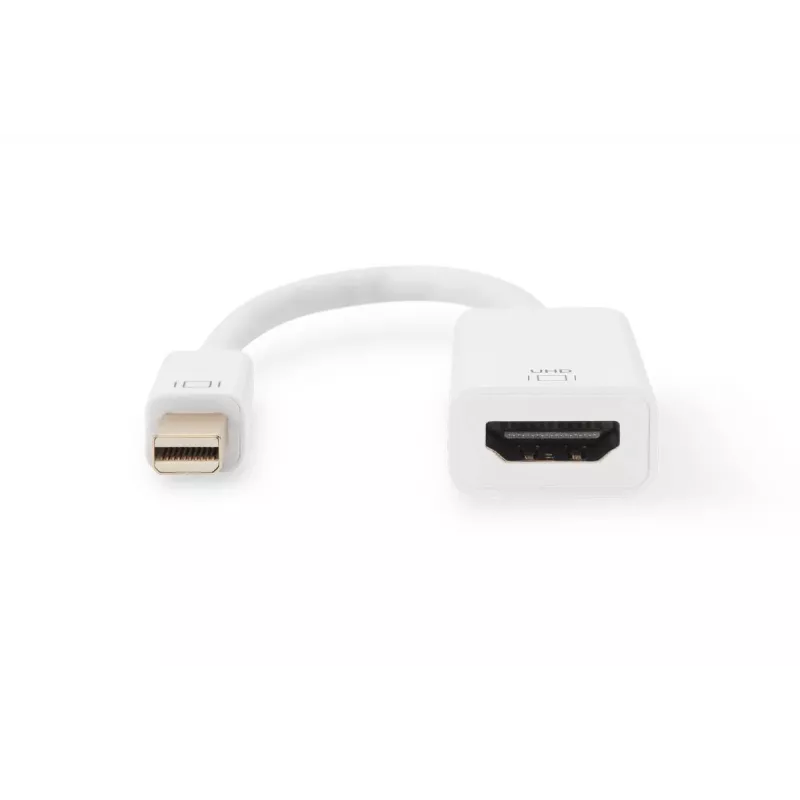

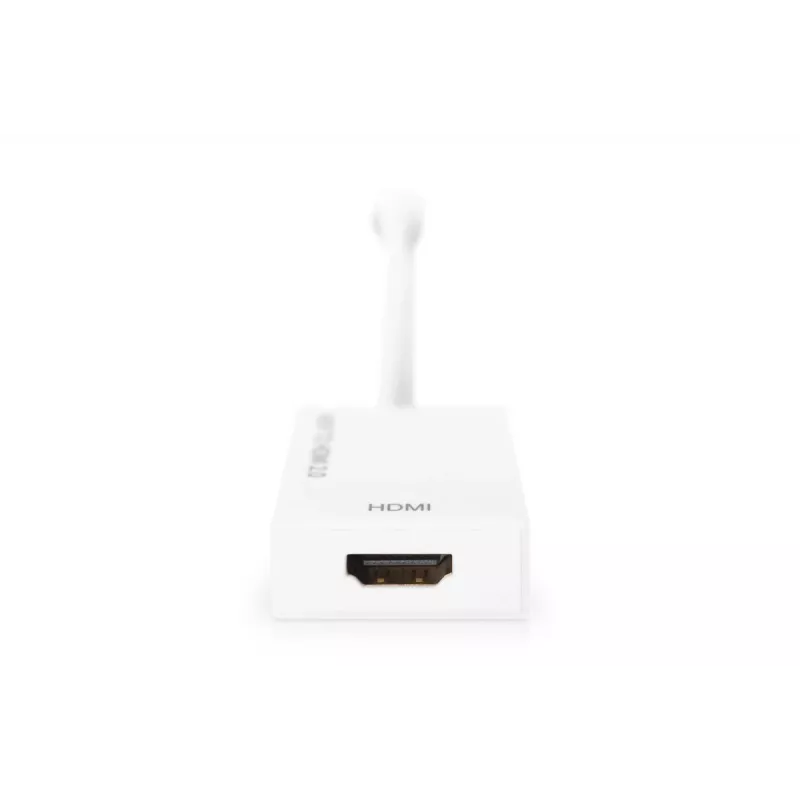

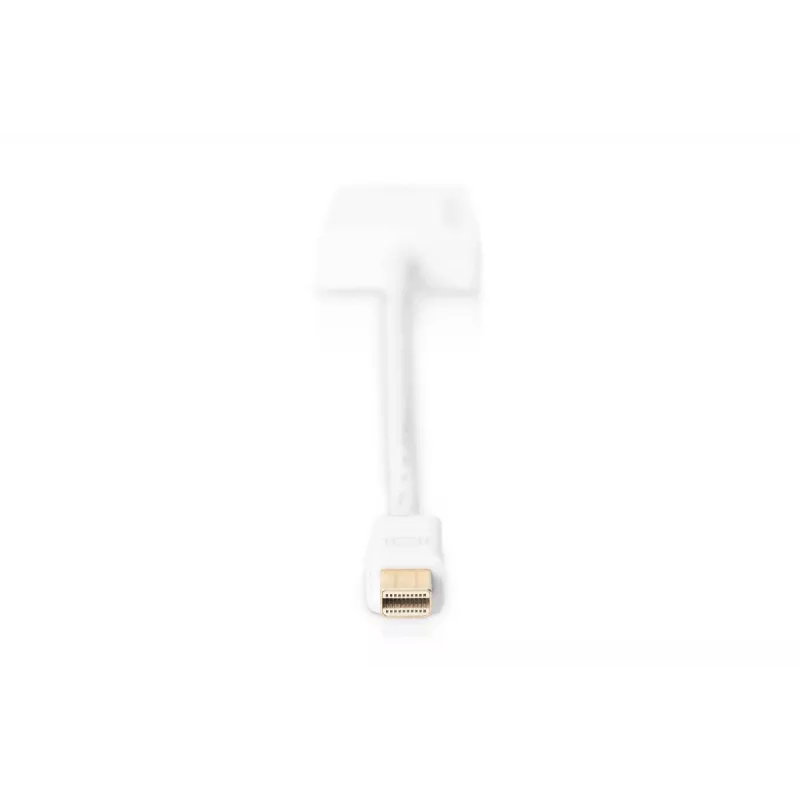

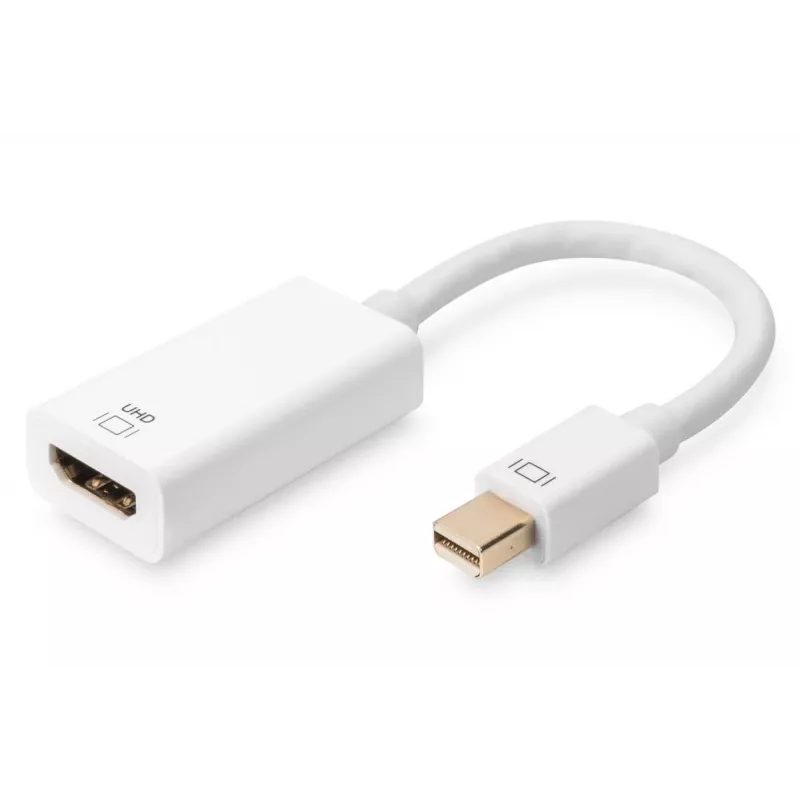

DIGITUS ASSMANN DisplayPort-adapterkabel, Mini-DP - HDMI type A M/W, 20 cm HDMI ver. 2.0, actief, CE, goud, wit

The Digitus Mini DisplayPort to HDMI Adapter (AK-340416-002-W) is an active converter that connects Mini DisplayPort-enabled notebooks or computers to HDMI displays and TVs. With support for DP++ dual-mode and resolutions up to 4K Ultra HD (4096×2160) at 60 Hz, the adapter transmits video content such as pictures, videos, presentations and documents in high detail. The compact adapter has a 0.2 m cable, a Mini DisplayPort male connector and an HDMI Type A female connector, and is offered in a white finish.

Advantages

This adapter supports HDMI 2.0 features including DP++ Dual-Mode, 4K (3840×2160) at 60 Hz and Full HD at 120 Hz, plus 24-bit deep color. It includes built-in automatic receiver equalization to help maintain signal quality and is lightweight and portable, making it suitable for mobile use and quick setup in meeting rooms or at home.

Suitable for

• Connecting laptops with Mini DisplayPort to HDMI TVs and monitors
• Presentations in meeting rooms
• Watching 4K video content on an external display
• Extending or duplicating a desktop for productivity tasks

Key specifications

• Model: Digitus AK-340416-002-W
• Connector 1: Mini DisplayPort (male)
• Connector 2: HDMI Type A (female)
• Supported resolutions: up to 4K (4096×2160) @ 60 Hz; 3840×2160 @ 60 Hz; Full HD 1920×1080 @ 120 Hz
• Deep color: 24-bit
• Cable length: 0.2 m
• Product colour: White
• Weight: 33.5 g

How to use

Connect the mini DisplayPort male end to the Mini DisplayPort output on your computer or notebook, and insert an HDMI cable into the adapter's HDMI Type A female port. Then connect the other end of the HDMI cable to your TV or monitor. Select the correct HDMI input on the display and configure display settings on the computer if necessary (resolution, duplication or extension mode).

Recommendations

For optimal results use a high-quality HDMI cable rated for the desired resolution and refresh rate, ensure your source device supports 4K output over Mini DisplayPort, and select the matching resolution and refresh rate in your operating system display settings.
