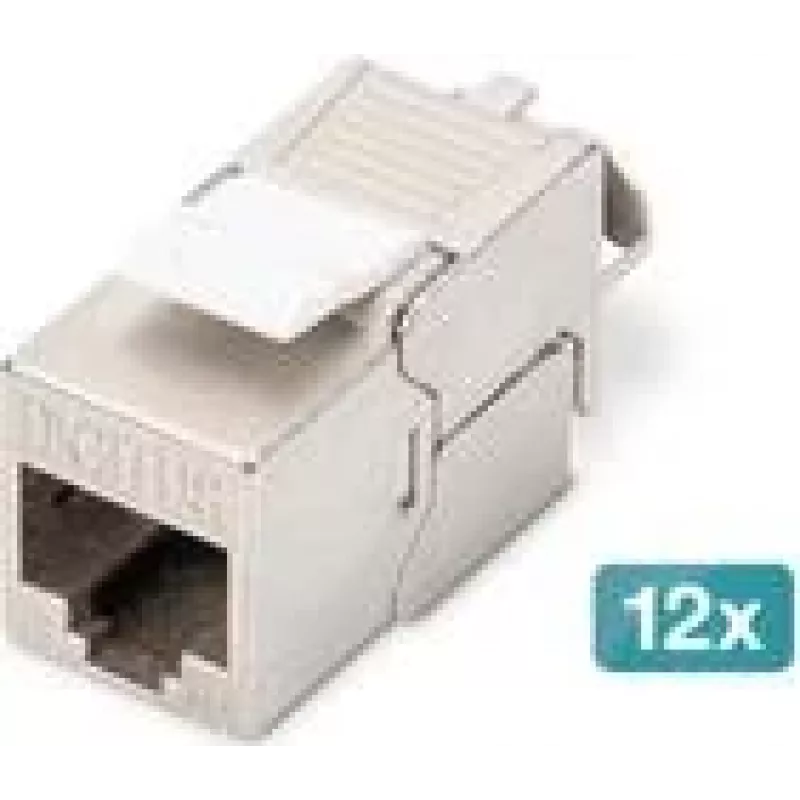

DIGITUS CAT 6A afgeschermde keystone-module, gereedschapsvrij, RJ-45, plat, zilver — 12-pack

The DIGITUS CAT 6A shielded keystone module pack of 12 provides a compact, tool-free solution for high-speed Ethernet installations. Each flat, silver module features an RJ-45 socket and 360° shield contacting to ensure reliable screened connections for data, voice and network cabling. Designed for snap-in mounting into keystone wall plates, modular junction boxes and 19" distribution panels, the modules support CAT 6A performance up to 500 MHz and are suitable for PoE deployments.

Advantages

Tool-free installation with LSA insulation displacement connectors speeds up field assembly and reduces installation time while color-coded wiring (EIA/TIA 568 A & B) minimizes wiring errors. The zinc die-cast nickel-plated housing and phosphor bronze contacts with nickel and gold plating provide robust mechanical and electrical properties. Compact dimensions allow dense mounting in 1U 19" panels or design-compatible junction boxes, and the included dust protection cap helps keep the RJ-45 interface clean.

Suitable for

• Structured cabling in offices and server rooms
• Patch panels and keystone wall plates
• PoE power delivery for IP phones, wireless access points and cameras
• Retrofit and field assembly projects requiring tool-free termination

Key specifications

• Category: CAT 6A, 10GBase-T, up to 500 MHz
• Connector: RJ-45 (8P8C), flat module form factor
• Shielding: 360° shield contacting, metal housing
• Termination: Tool-free LSA insulation displacement connectors, color-coded for EIA/TIA 568 A & B
• Material: Zinc die-cast housing (nickel-plated); contact material phosphor bronze with nickel and 0.5 μm gold plating
• PoE support: IEEE 802.3af/at/bt (PoE, PoE+, 4PPoE in permanent link)
• Mechanical: Insertion force max. 30 N; holding force 7.7 kg between socket and plug; mating cycles ≥ 750
• Electrical / safety: Dielectric strength 1000 VDC (contact/contact), 1500 VDC (contact/ground)
• Temperature range: -20 °C to +70 °C
• Cable compatibility: Solid and stranded conductors AWG 26/7 to 22/1; tested with AWG 22/1 installation cable
• Additional features: Reclosable intelligent cable manager, dust protection cap
• Package contents: 12 keystone modules

How to use

Insert the module into a compatible keystone opening or 19" patch panel until it snaps into place. Terminate the cable by placing conductors into the color-coded LSA insulation displacement connectors according to the chosen wiring scheme (EIA/TIA 568 A or B) and press to secure the connection; no special tools are required. Use the integrated strain relief and cable tie position to fix the cable and close the reclosable cable manager. Fit the dust protection cap on the RJ-45 socket if the port is not in use.

Recommendations

For optimal performance, use quality CAT 6A or higher cabling and follow EIA/TIA wiring standards. Avoid excessive bending near the termination point, ensure proper shield grounding in the distribution panel, and verify PoE power budgets for connected devices. Regularly inspect mating cycles and replace modules showing wear beyond rated usage.
