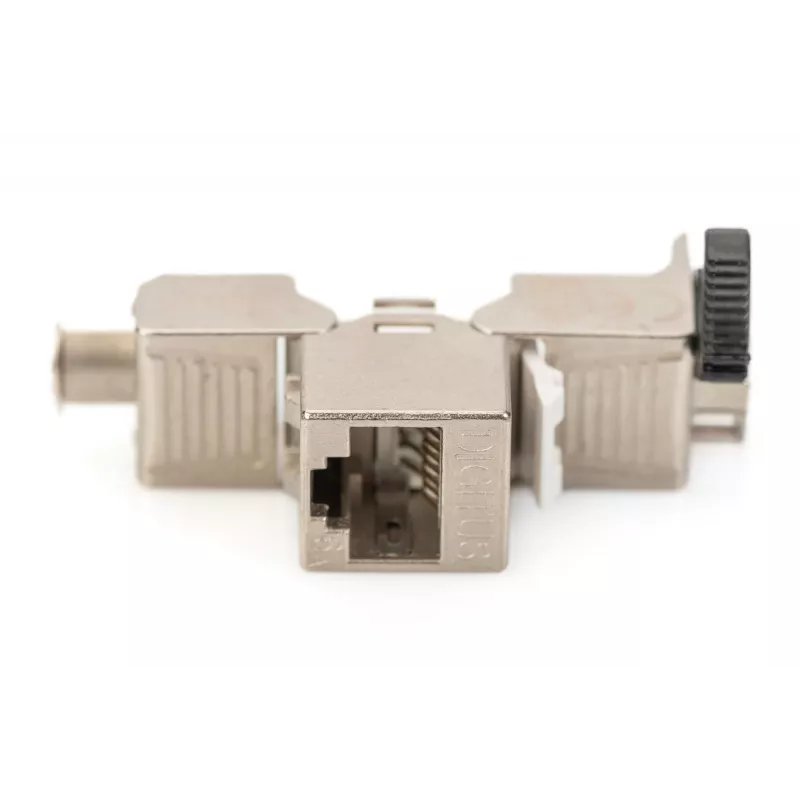

Digitus Cat. 6A keystone-module, afgeschermd, met intelligente kabelmanager, 48 stuks

The Digitus Cat. 6A keystone module shielded with intelligent cable manager (DN-93617-48) is a compact, shielded RJ45 keystone insert designed for high-speed network installations. The set includes 48 modules with a 360° shield contact, an LSA insulation-displacement connector for Cat. 6A performance and a resealable cable management system that secures and grips the cable without tools. The modules are compatible with 19" (483 mm) 1U panel series and fit design-compatible modular junction boxes.

Advantages

The modules provide complete shielding with 360° shield contact and support PoE standards IEEE 802.3 af/at/bt (PoE, PoE+ and 4PPoE). Tool-free field installation is possible thanks to the colour-coded LSA connector following EIA/TIA 568 A & B. A dust protection cap protects the RJ45 jack when not in use and the intelligent, resealable cable manager ensures reliable cable fixation and strain relief. GHMT certification confirms conformity with relevant performance requirements.

Suitable for

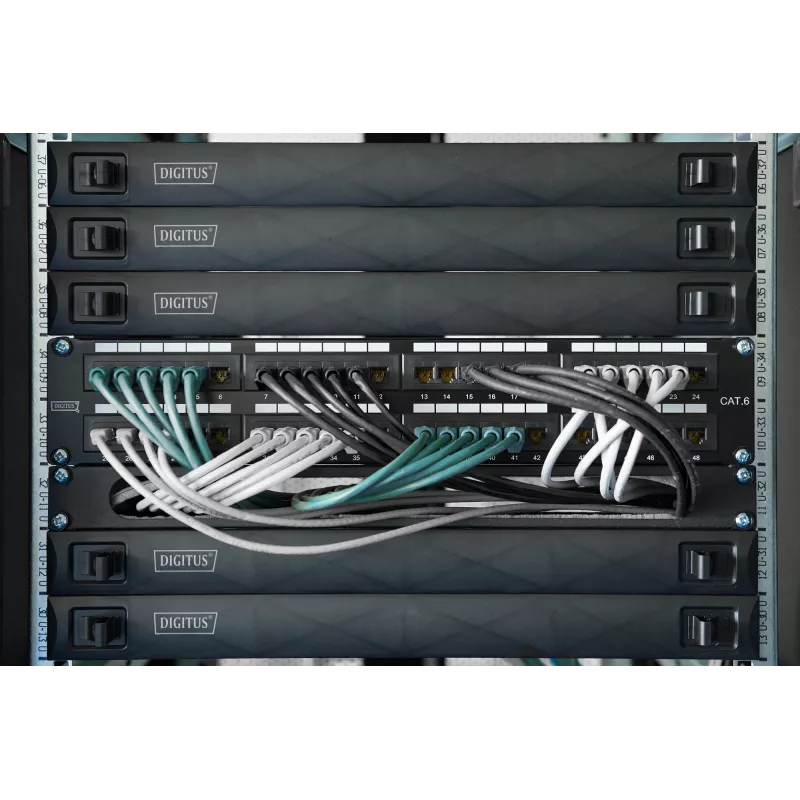

• Patch panels and 19" 1U distribution panels
• Modular junction boxes and wall outlets
• Field installations requiring tool-free assembly
• Cat. 6A structured cabling supporting PoE applications

Key specifications

• Brand: DIGITUS
• Model / MPN: DN-93617-48
• Standard: Cat. 6A, shielded
• Connector: RJ45 keystone with LSA insulation-displacement connector
• Shield contact: 360°
• PoE support: IEEE 802.3 af/at/bt (PoE, PoE+ & 4PPoE)
• Certification: GHMT
• Pack contents: 48 pieces
• Dimensions (each): 14.5 mm (W) x 34.5 mm (D) x 21 mm (H)
• EAN: 4016032490623

How to use

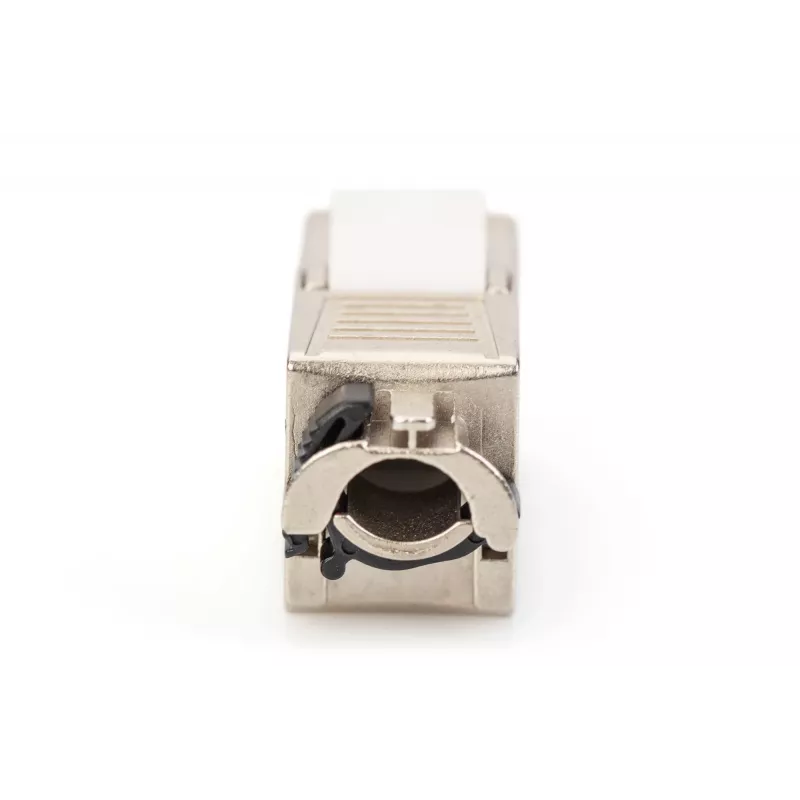

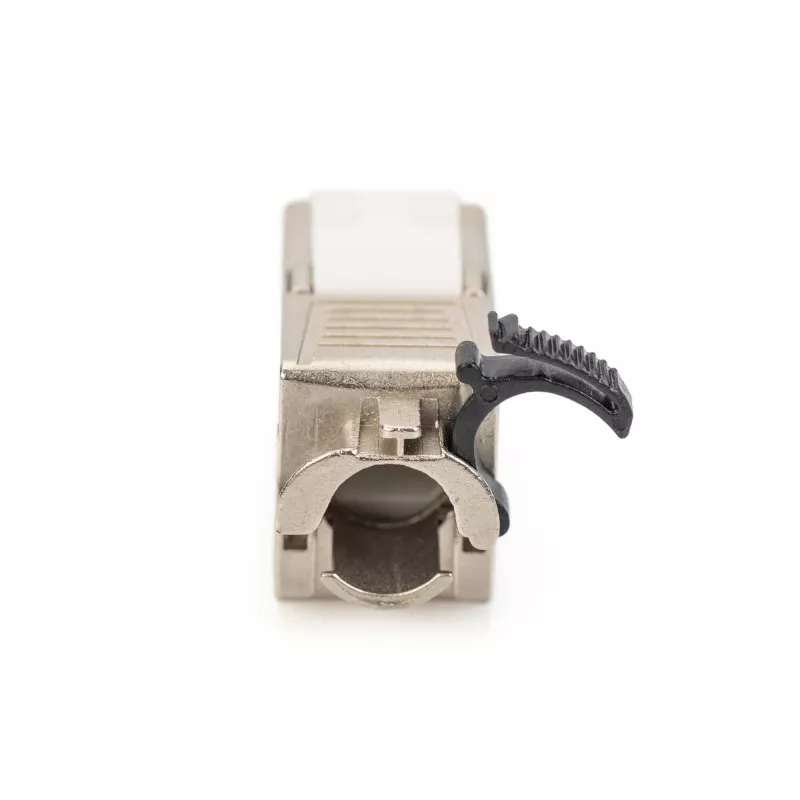

Prepare the cable according to Cat. 6A installation guidelines and insert conductors into the colour-coded LSA insulation-displacement connector following EIA/TIA 568 A or B wiring. Use the intelligent cable manager to position and secure the cable — the tool-free resealable design provides strain relief and cable grip. Insert the module into a compatible keystone aperture in a patch panel or junction box until it clicks into place, and attach the dust protection cap to the RJ45 jack when the port is unused.

Recommendations

For optimal performance, use the modules within Cat. 6A structured cabling systems and maintain correct wiring and grounding practice for shielded installations. Ensure PoE power budgets are consistent with connected devices and follow local installation standards.
