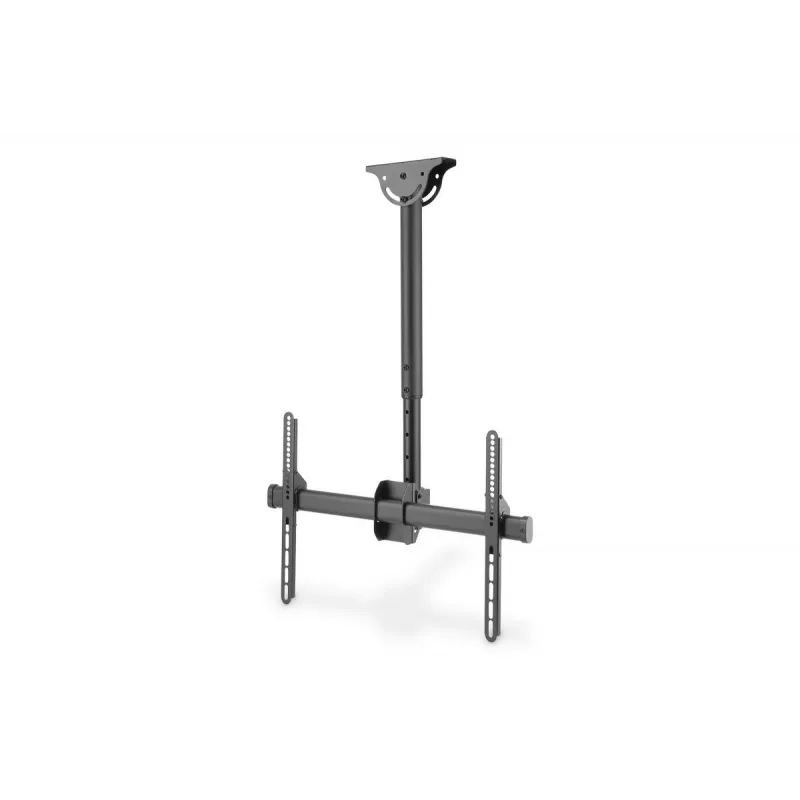

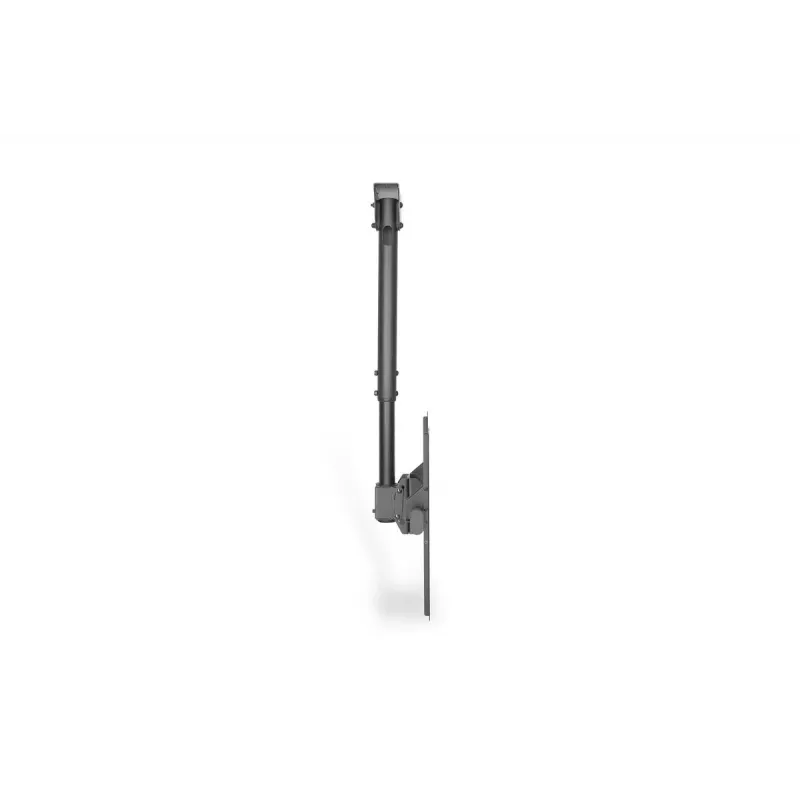

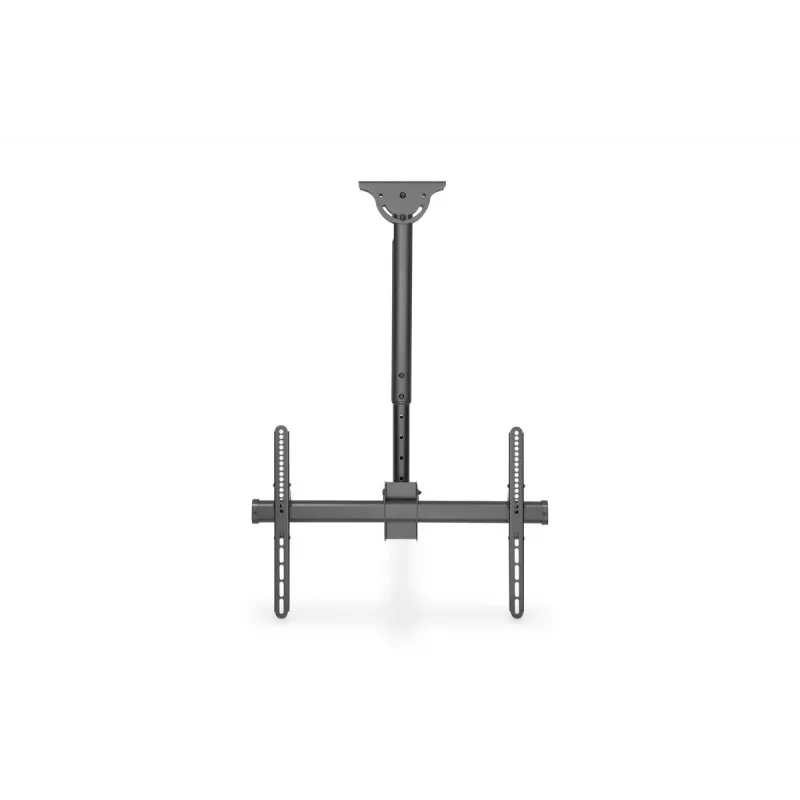

DIGITUS universele tv-plafondhouder 37-70 inch 560-910 mm zwart

The Digitus Universal Ceiling Bracket (Ceiling Mount Digitus DA-90421) is designed for flat and curved displays with screen diagonals from 37" to 70" and a maximum load capacity of 50 kg. It offers telescopic height adjustment, adaptable mounting for sloping roofs, integrated cable management and a quick-release VESA bracket to simplify installation.

Advantages

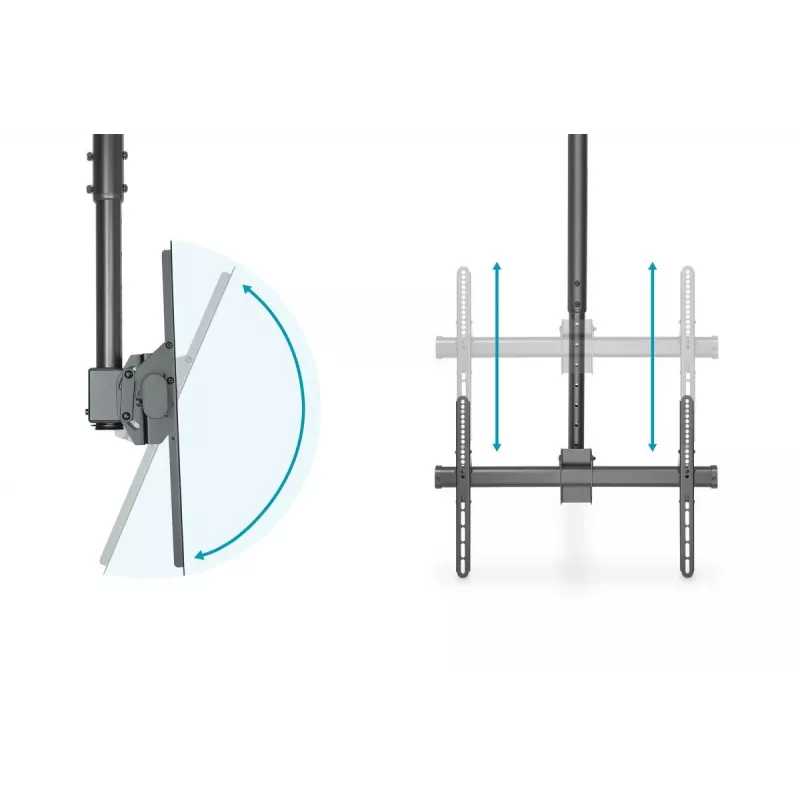

The bracket supports both flat and curved screens, provides a 35 cm telescopic height adjustment range and accepts VESA patterns from 200 x 200 mm up to 600 x 400 mm. It allows a swivel of 360°, inclination adjustment from 0° to -25° and mounting on roofs with up to 60° pitch. Cable routing is concealed within the tube structure and an integrated spirit level helps achieve precise alignment. The quick-release monitor bracket accelerates installation and service.

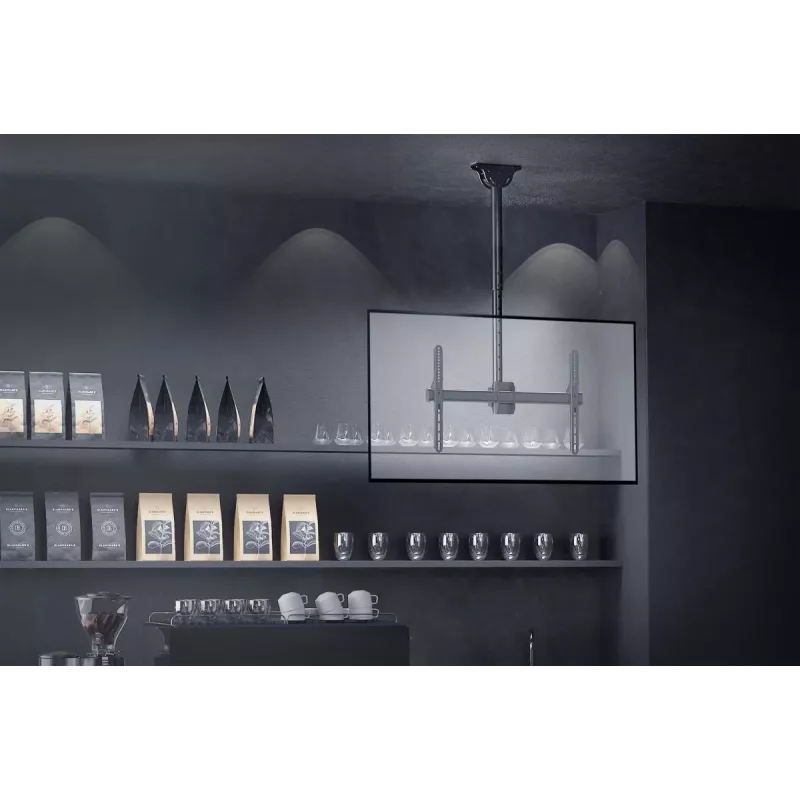

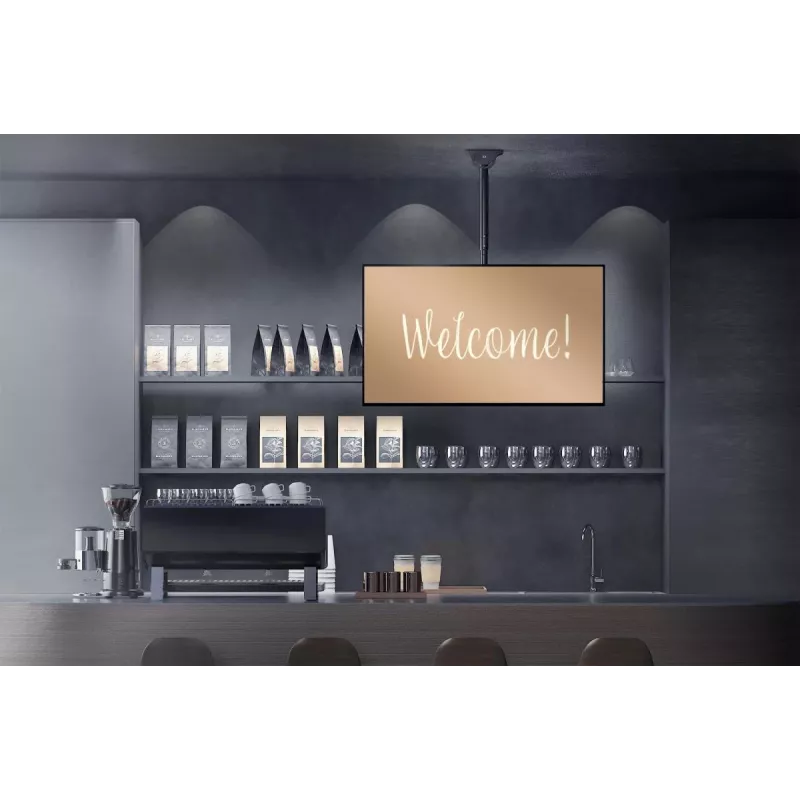

Suitable for

• Offices and conference rooms
• Restaurants, cafés and hospitality areas
• Schools and classrooms
• Hotel lobbies and guest rooms

Key specifications

• Screen size compatibility: 37"–70"
• Maximum load capacity: 50 kg
• VESA compatibility: 200 x 200 mm to 600 x 400 mm
• Telescopic height adjustment range: 35 cm
• Inclination adjustment: 0° to -25°
• Swivel/rotation: 360° swivel
• Cable management: internal within tube structure
• Color: black
• Supports a single display

How to use

Secure the ceiling mounting plinth to a suitable load-bearing structure following local building codes and the mounting instructions. Adjust the mounting plinth angle for sloping roofs if required, then set the desired telescopic height. Attach the VESA-compatible bracket to the display, use the quick-release mechanism to hang the display onto the ceiling bracket, and route cables through the tube structure. Use the integrated level to align the display and fine-tune inclination and swivel for the preferred viewing angle.

Recommendations

Ensure the ceiling structure can support the combined weight of the bracket and display (up to 50 kg). Verify VESA compatibility before installation and use appropriate fixings for the ceiling material. For sloped ceilings, confirm the roof pitch does not exceed 60°. If unsure, consult a qualified installer.
