Wandmontagebehuizing 19 DN-37115

Managing network equipment in small or medium spaces often means choosing between bulky floor-standing racks and flimsy wall boxes that can't handle real hardware. The DIGITUS Dynamic-N series wall-mount cabinet solves this by giving you a sturdy, lockable 19" enclosure that mounts securely to the wall, keeping your switches, patch panels, and servers organized, ventilated, and protected—without sacrificing floor space.

Who is it for

This cabinet is ideal for IT administrators, installers, and businesses that need a reliable, space-saving rack for network equipment in offices, retail locations, schools, or industrial environments. It's perfect for small to medium network installations, edge computing setups, or any place where a full-size rack is overkill but a cheap wall box won't do.

Main features

• 16U height with 19" profile rails front and rear, depth-adjustable and marked with height units for easy equipment mounting.
• Sturdy steel construction: 1.0–1.2 mm thick sheet steel, electrostatically powder-coated in black (RAL 9005) for durability and a professional look.

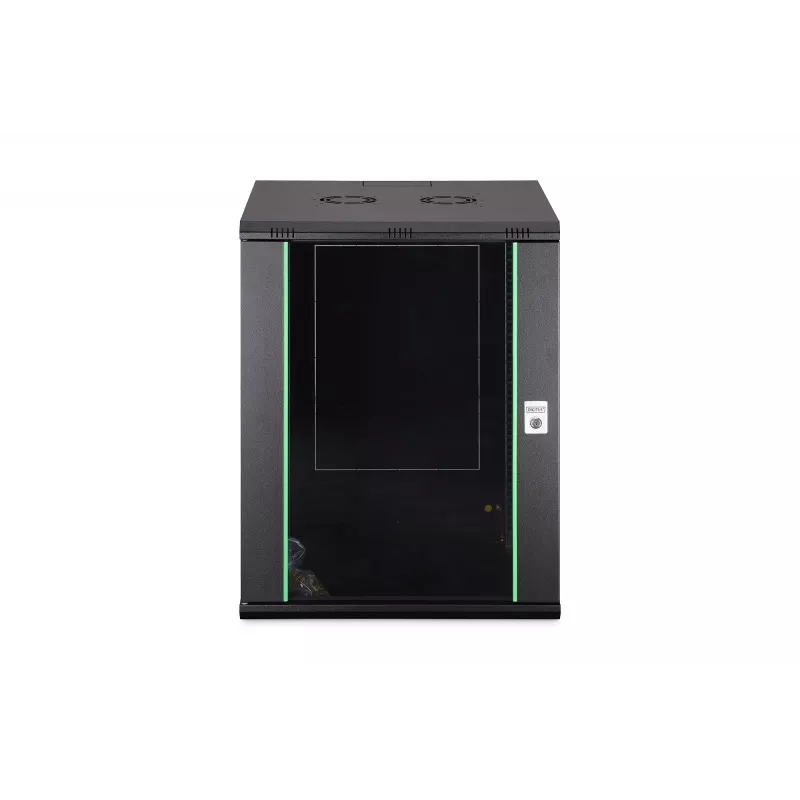

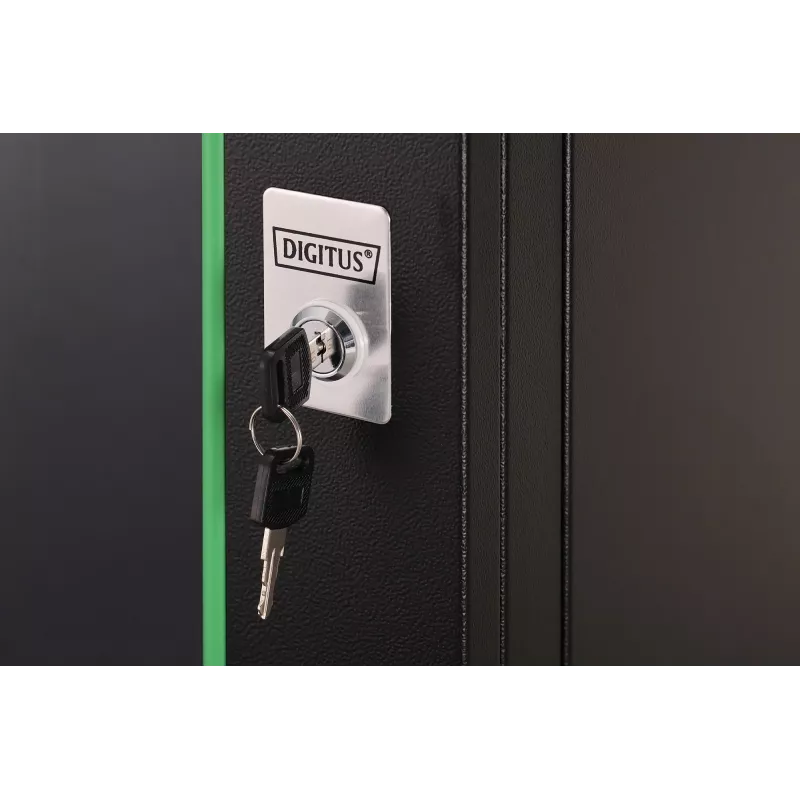

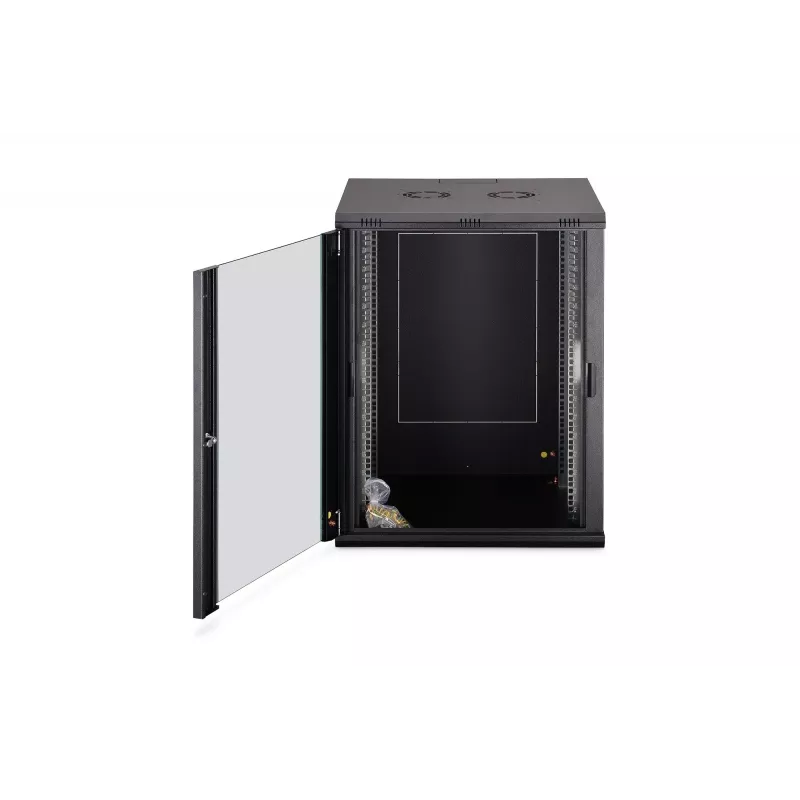

• Lockable front door with safety glass in a steel frame, opening angle of 230° for easy access; single-point lock included.

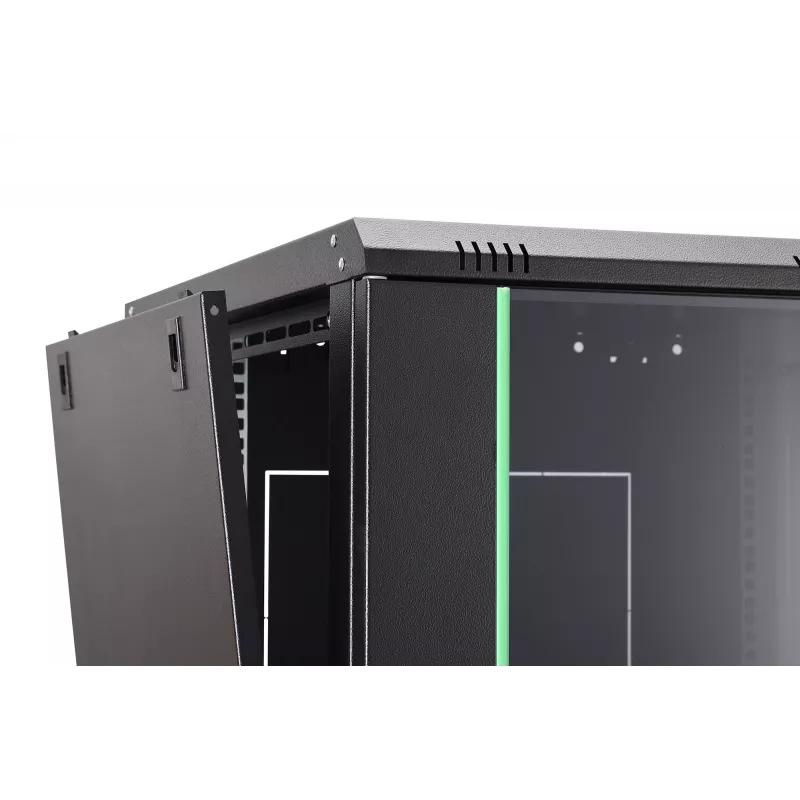

• Removable and lockable side panels for quick maintenance and cable access.
• Pre-cut cable entries in roof, base, and rear panel; roof also has a hole for an optional fan module to improve airflow.
• Wall mounting made simple: included mounting plate screws to the wall first, then the cabinet hooks on—no heavy lifting.
• Delivered unassembled in a space-saving flat pack, with clear assembly instructions for fast setup.
• IP20 protection rating, suitable for indoor use; passive ventilation with option for active cooling.

Specifications

• Brand: DIGITUS
• Model: DN-37115
• Rack capacity: 16U
• External dimensions (H x W x D): 770 x 600 x 600 mm (from sibling data; note Gemini research lists depth as 450 mm, but supplier siblings consistently state 600 mm depth, so 600 mm is used)
• Maximum weight capacity: 60 kg
• Material: Steel sheet
• Colour: Black (RAL 9005)
• Front door: Lockable safety glass door with steel frame, 230° opening angle
• Side panels: Removable and lockable
• Cable entry: Top and bottom with brush strips
• Mounting type: Wall mountable (floor standing possible with optional accessories)

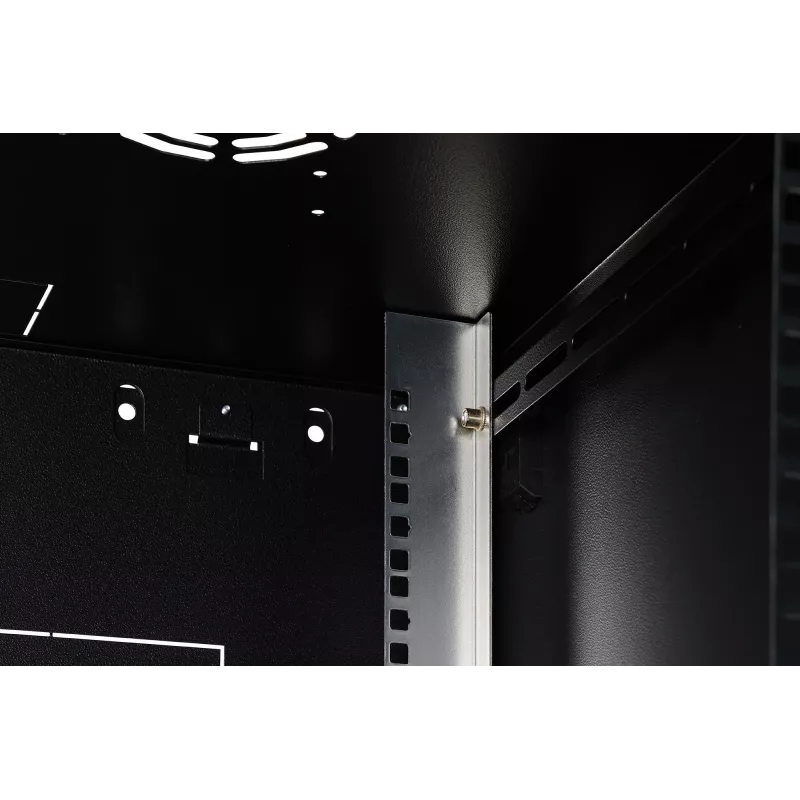

• Profile rails: 19", depth-adjustable, marked with height units
• Ventilation: Passive, prepared for fan unit installation
• Protection rating: IP20
• Standards compliance: IEC 60297-2, EN 60950-1, RoHS, REACH
• Assembly required: Yes (unassembled delivery)
• Wall mounting kit: Included

Tips

Before mounting, ensure the wall can support the cabinet's weight plus your equipment (up to 60 kg total). Use the adjustable profile rails to set the mounting depth to match your deepest device, and consider adding a fan module if you plan to install active equipment like PoE switches. For easier assembly, unpack all parts and follow the included instructions step by step—two people are recommended for lifting the cabinet onto the wall plate.
