DisplayPort 1.4 kabel InLine 17151U 8K4K haaks zwart/goud 1m

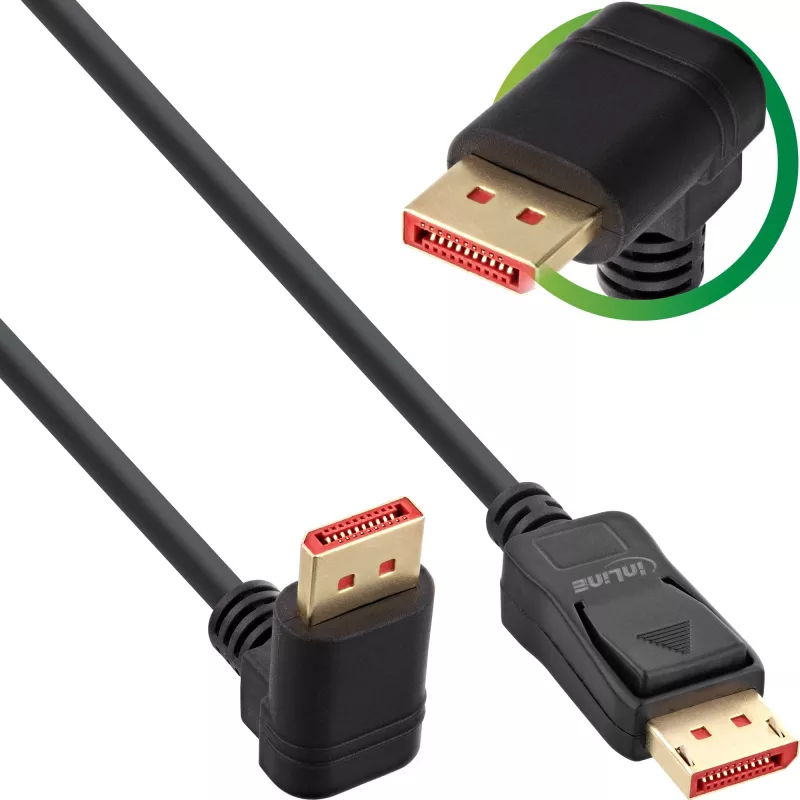

DisplayPort 1.4 cable with a straight DisplayPort connector on one end and a downward (angled upwards from cable perspective) DisplayPort connector on the other. The 1 m black cable has gold-plated contacts and triple shielding and supports high-resolution video formats up to 8K and multiple 4K modes. Packaged in a resealable PE bag with EAN code.

Advantages

The InLine DisplayPort 1.4 cable provides broad resolution support including UHD-II/FUHD 7680x4320 @30Hz and 3840x2160 at up to 120Hz in specific color-depth and chroma subsampling modes. Triple shielding reduces interference and gold-plated contacts improve signal reliability. The angled connector allows neat connections in confined spaces while the 1 m length limits excess cable.

Suitable for

• Connecting PCs, laptops or graphics cards to monitors with DisplayPort inputs
• High-resolution displays and professional monitors (up to 8K @30Hz or 4K @120Hz depending on mode)
• Home theaters and multimedia workstations requiring high-bandwidth video
• Setups with limited cable clearance where an angled connector is beneficial

Key specifications

• Standard: DisplayPort 1.4
• Connectors: DisplayPort straight to DisplayPort angled (downward)
• Cable length: 1 m
• Shielding: 3-fold (triple) shielded
• Contacts: Gold-plated
• Colour: Black
• Supported resolutions: UHD-II/FUHD 7680x4320 @30Hz RGB/4:4:4 and @60Hz RGB/4:2:0 or DSC; UHD 3840x2160 @120Hz RGB/4:4:4 8bit (HDR off); UHD 3840x2160 @120Hz RGB/4:2:2 12bit (HDR on); UHD 3840x2160 @60Hz RGB/4:4:4 12bit (HDR on); Full HD 1920x1080; HD 1280x720

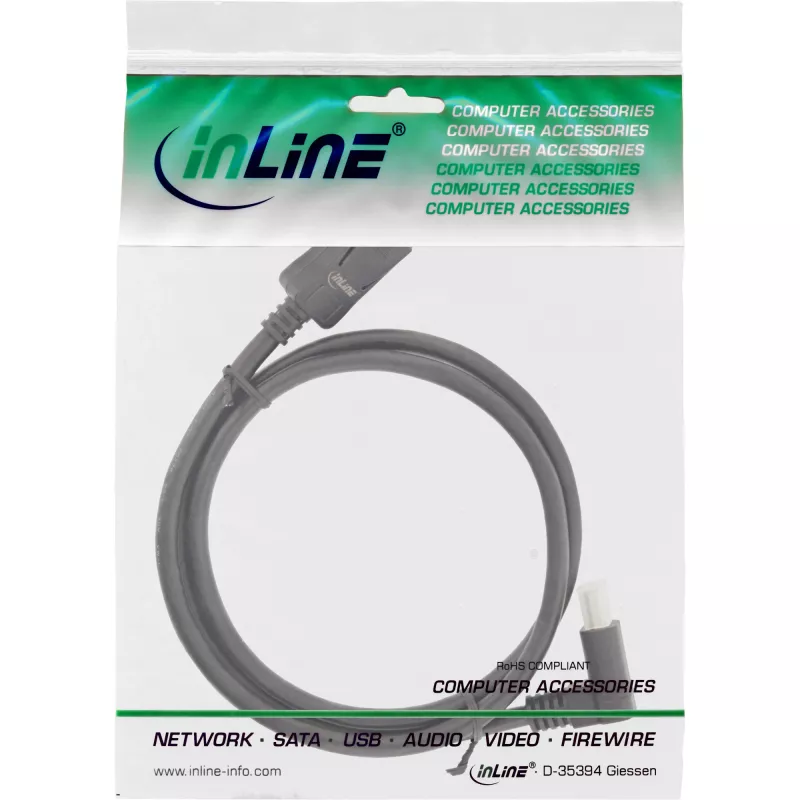

• Packaging: resealable PE bag with EAN code

How to use

Connect the straight DisplayPort connector to the source device (PC, laptop, or graphics card) and the angled DisplayPort connector to the monitor or display input. Ensure both devices are powered off when plugging or unplugging to avoid signal issues. After connection, power on devices and select the correct input and display settings on your source device to match the desired resolution and refresh rate.

Recommendations

For maximum resolution and refresh rate, configure the graphics card and monitor settings to supported modes and use DSC when required. Keep cable runs within recommended lengths and avoid tight bends near the connectors to preserve signal integrity.
