DisplayPort-kabel PureLink IS2121-030 3 m Mini DisplayPort zwart

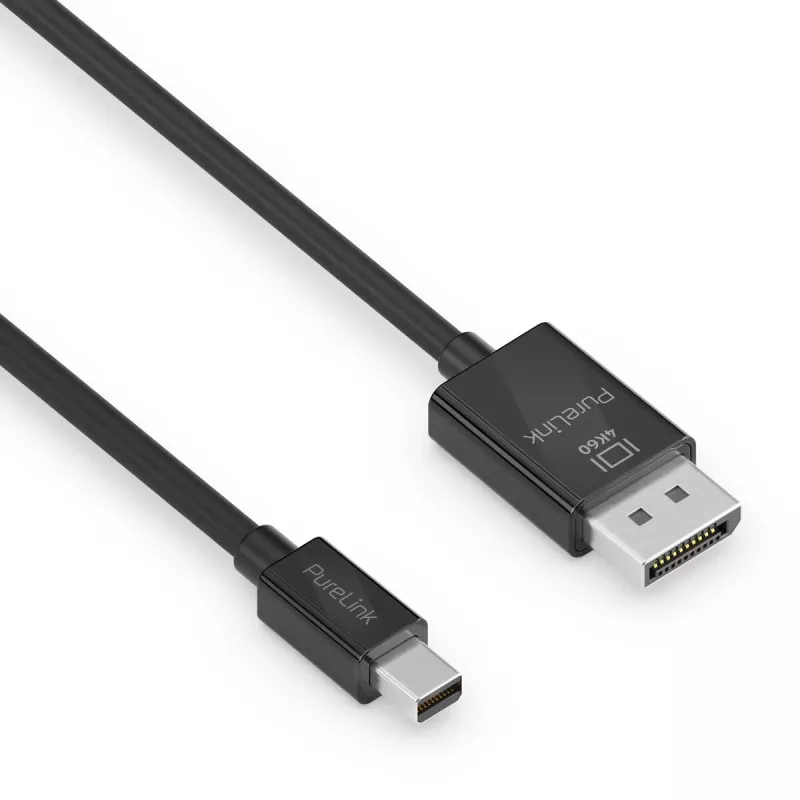

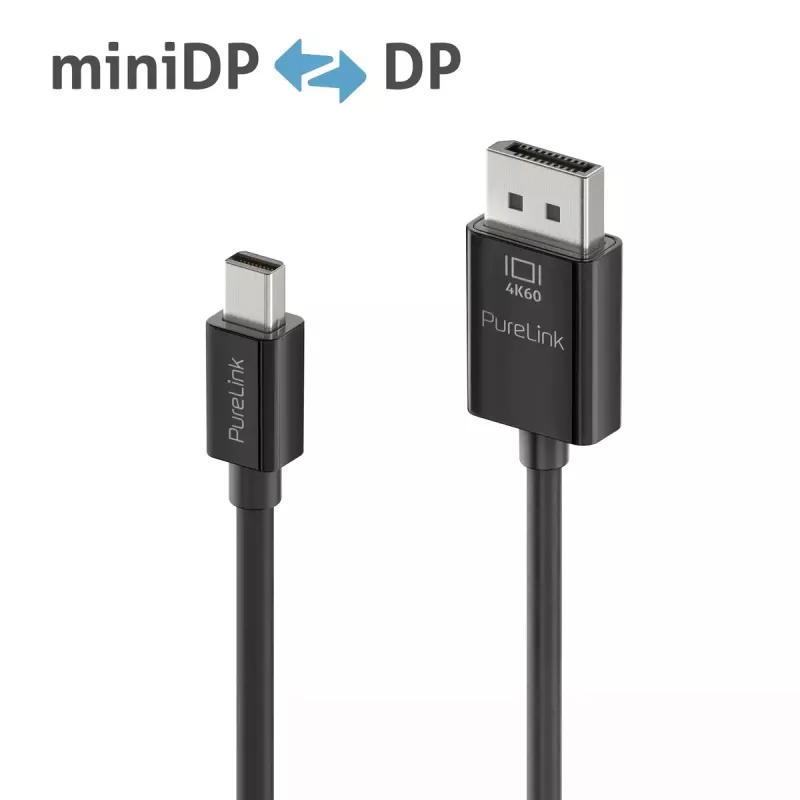

The PureLink IS2121-030 is a 3.00 m bidirectional Mini DisplayPort to DisplayPort cable in black with ABS connector housings. It complies with the DisplayPort 1.2 (HBR2) standard and supports a maximum data rate of 21.6 Gbps for resolutions up to 4K UltraHD at 60 Hz. Connectors have gold-plated precision contacts and the cable uses high-purity stranded tinned copper conductors with triple shielding. The cable is 100% tested and suitable for professional AV installations.

Advantages

The cable delivers stable high-bandwidth transmission up to 21.6 Gbps, enabling 4K@60Hz video. Gold-plated contacts and robust ABS connector housings reduce corrosion and ensure reliable contact. Triple shielding and high-purity copper conductors minimise interference and signal loss. A 4.8 mm diameter provides a balance of flexibility and mechanical durability.

Suitable for

• Connecting laptops or computers with Mini DisplayPort outputs to DisplayPort monitors or projectors
• Professional AV setups requiring reliable 4K@60Hz transmission
• Workstations, video editing and content-creation environments

Key specifications

• Connector type: Mini DisplayPort (male) to DisplayPort (male)
• Standard: DisplayPort 1.2 (HBR2)
• Maximum data rate: 21.6 Gbps
• Maximum resolution: up to 3840 x 2160 at 60 Hz
• Cable length: 3.00 m
• Cable diameter: 4.8 mm
• Conductor material: high-purity stranded tinned copper
• Shielding: triple shielding
• Contact plating: gold-plated precision contacts
• Connector housing material: ABS (except DisplayPort female sockets on adapters)
• Colour: black

How to use

Connect the Mini DisplayPort end to the source device (for example a laptop with Mini DisplayPort) and the DisplayPort end to the display device (monitor, projector or AV receiver). Ensure both devices support the desired resolution and refresh rate and select the appropriate input on the display. Route the cable to avoid sharp bends and excessive strain on the connectors.

Recommendations

For best performance, use the cable for direct connections or short AV signal paths and avoid running it alongside sources of strong electromagnetic interference. Verify that source and display support DisplayPort 1.2 features to achieve 4K@60Hz.
