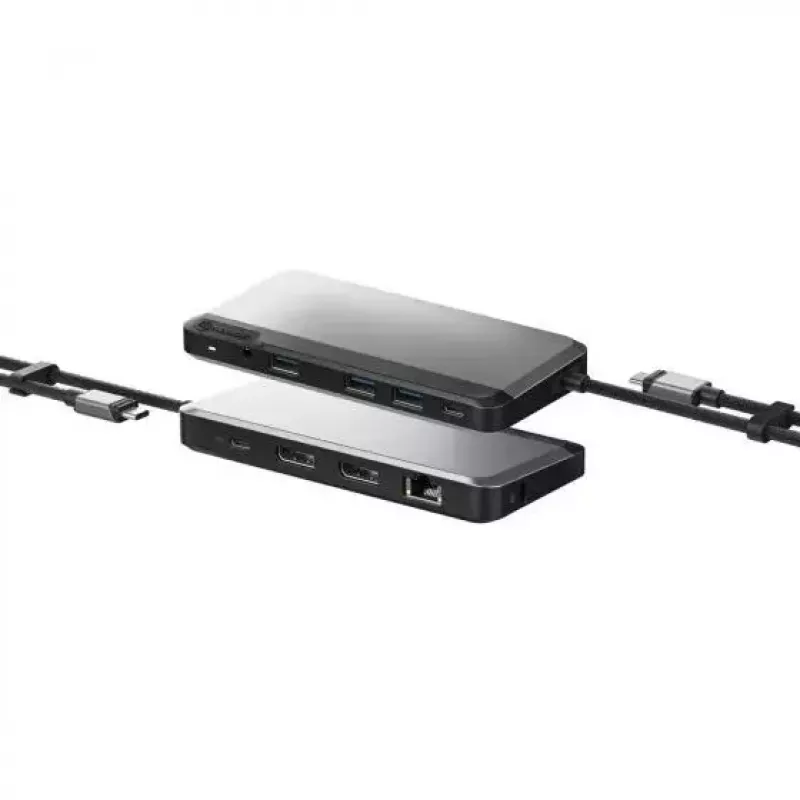

Dock ALOGIC U1CAD-SGR bedraad USB 3.2 Gen 1 Type-C grijs 85W

The ALOGIC U1CAD-SGR wired dock expands a laptop's connectivity with nine ports in a compact, lightweight design. It provides two DisplayPort outputs for dual Full HD displays at 60 Hz (and supports up to 3840 x 2160 @60 Hz where the host supports it), USB 3.2 Gen 1 Type-C data connection, up to 85W power delivery, and gigabit Ethernet for reliable network access. Encased in a metal alloy shell and weighing approximately 138 g, the dock is suitable for home, office and mobile use where additional I/O is required.

Advantages

The dock consolidates essential desk ports — dual DisplayPort video, multiple USB ports, audio and Ethernet — into a single compact unit, reducing cable clutter and easing connection of peripherals such as keyboard, mouse, printer and headphones. Its USB 3.2 Gen 1 Type-C interface allows high-speed data transfer while up to 85W power delivery can charge many laptops. The metal alloy casing improves durability and the lightweight form factor makes the dock easy to move between work locations.

Suitable for

• Connecting two external displays for productivity and multitasking
• Office work requiring wired Ethernet for stable network and video calls
• Users who need to attach multiple USB peripherals (keyboard, mouse, printer, external storage)
• Mobile professionals who need a compact, portable docking solution

Key specifications

• Model: ALOGIC U1CAD-SGR
• Interface: Wired USB 3.2 Gen 1 Type-C
• Power delivery: Up to 85W
• Ethernet: 1000 Mbit/s (Gigabit LAN)
• Maximum digital resolution: Up to 3840 x 2160 @ 60 Hz (host-dependent)
• Dimensions (W×D×H): 62 × 139 × 16.3 mm
• Weight: ~138 g
• Material: Metal alloy casing

How to use

Connect the dock to a compatible laptop or desktop using the included USB-C cable. Attach external displays to the DisplayPort outputs and plug in USB peripherals, headphones and Ethernet cable as needed. Ensure the host computer supports video output over USB-C or Thunderbolt for dual-display operation and check the resolution support table in your system documentation if you require 4K at 60 Hz. Power delivery will charge the connected laptop when the dock is connected to a suitable power adapter.

Recommendations

For reliable dual-display and high-resolution output, use a host device with USB-C or Thunderbolt 3/4 video output. When using 4K @60 Hz, confirm the laptop’s USB-C port and cable support the required bandwidth. Place the dock on a stable surface and avoid exposing it to liquids or extreme temperatures.
