Docking Station i-tec Metal USB-C Travel Nano Dock HDMI/VGA met LAN + Power Delivery 100 W

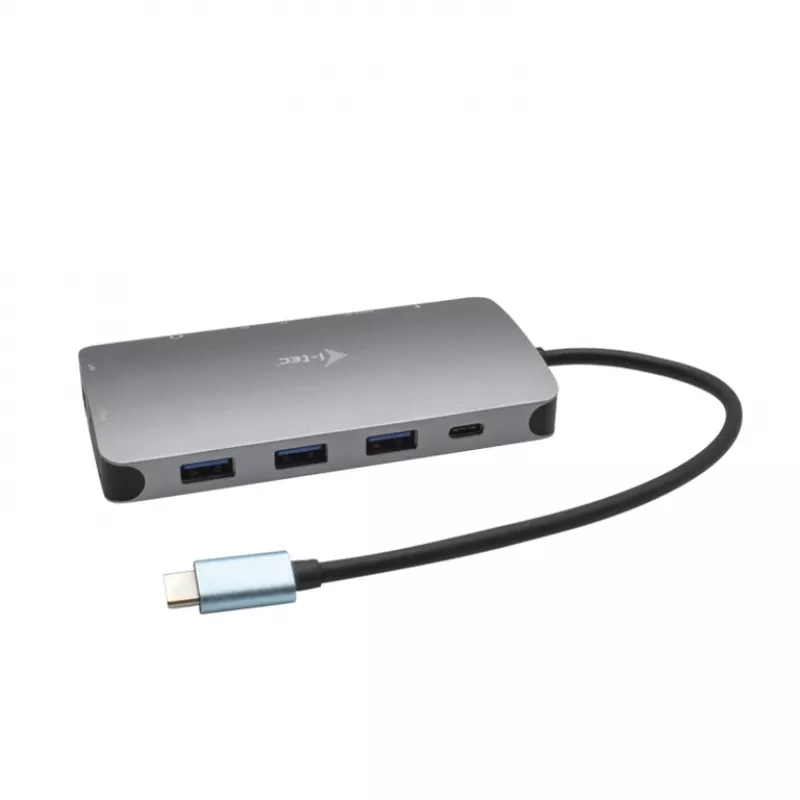

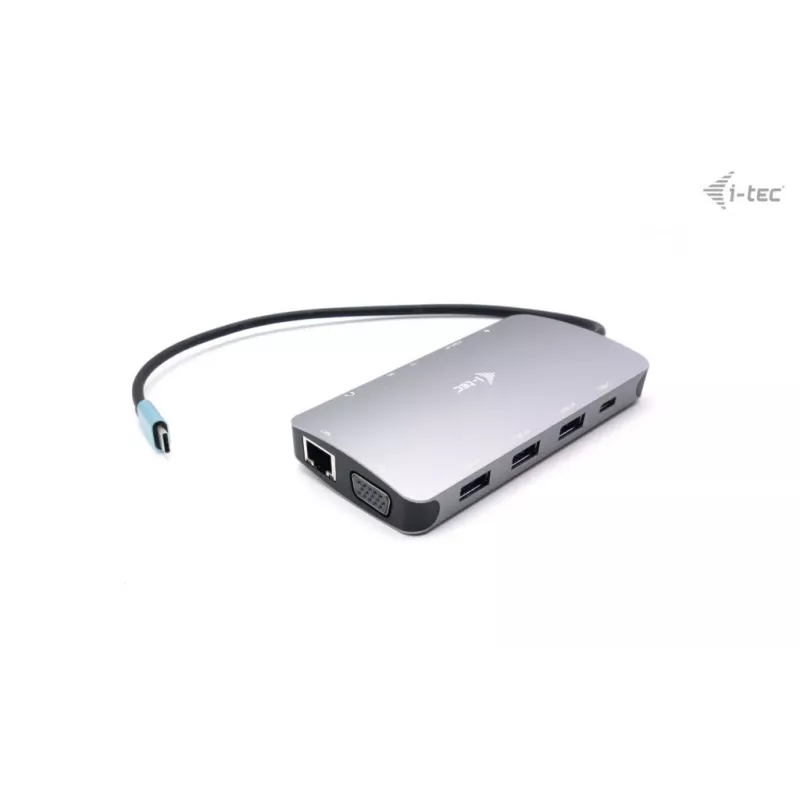

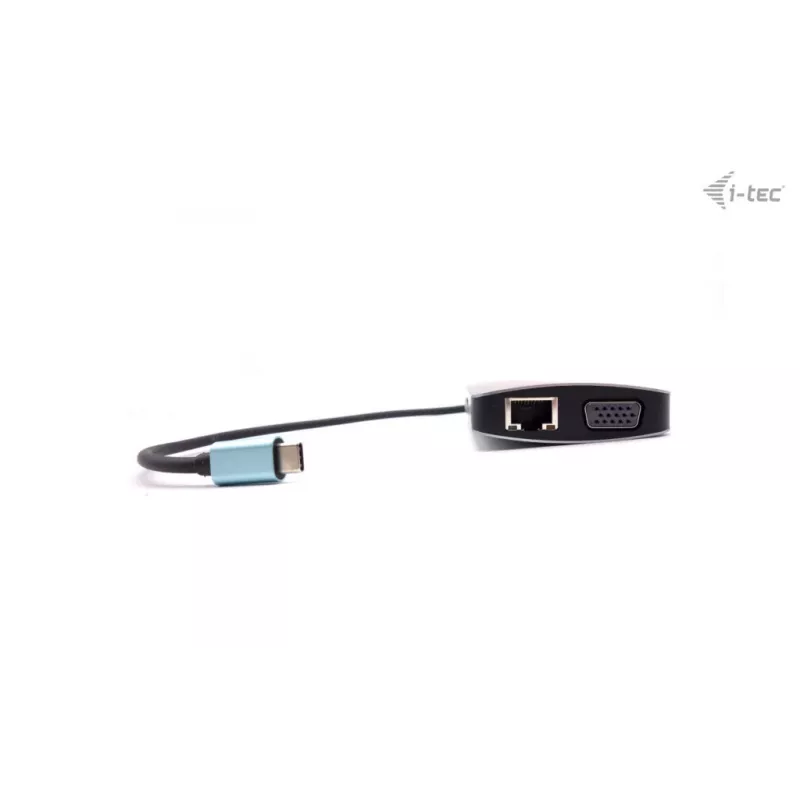

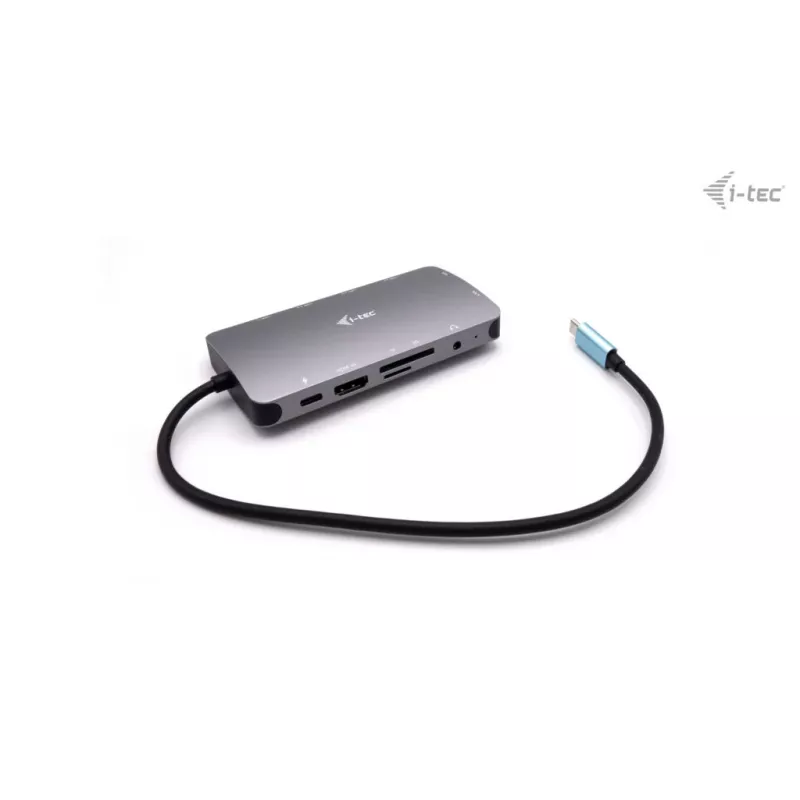

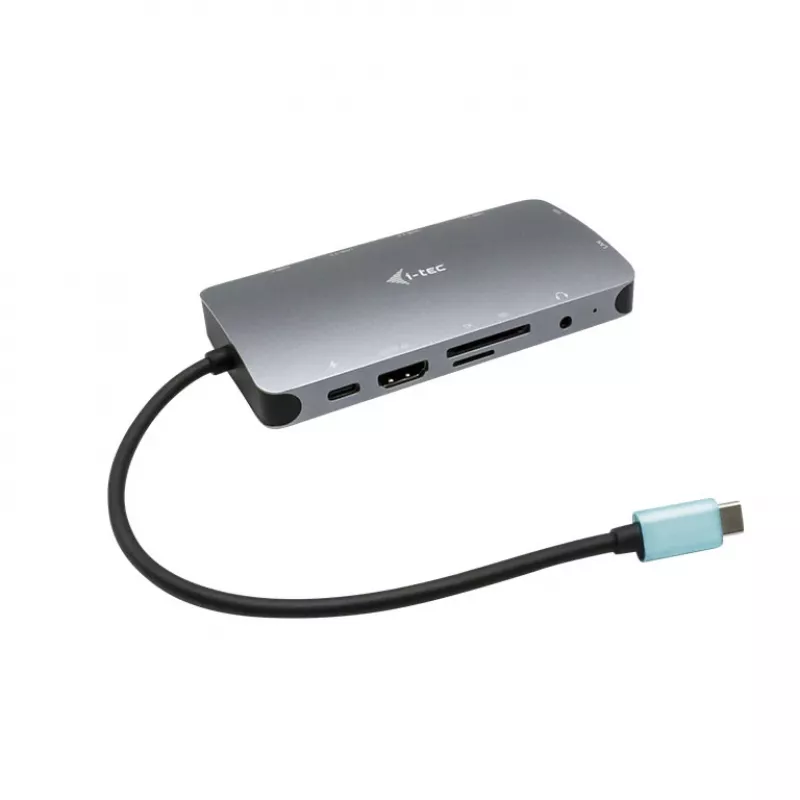

Compact metal USB-C docking station provides easy connection of an external monitor or projector via HDMI or VGA. Plug in a laptop or tablet without installing drivers to get fast USB data transfer, wired network access through the LAN port, audio headset support and power delivery up to 100 W for devices that charge via USB-C (USB-C Power Delivery). The brushed aluminium casing adds durability for frequent travel and the integrated USB-C cable is long enough for comfortable connection even when the port is positioned near the top of a hybrid laptop or tablet screen. The dock is also compatible with Thunderbolt 3 ports.

Advantages

The docking station supports up to 4K@60 Hz output, simultaneous HDMI and VGA connections (mirrored image), three USB 3.0 ports and one USB-C port for peripherals, SD and microSD card slots, gigabit RJ-45 Ethernet (10/100/1000 Mbps) and a combined audio/microphone jack on the front panel. Power Delivery up to 100 W enables charging of laptops and tablets that accept USB-C charging. No driver installation is required for standard operation on supported systems.

Suitable for

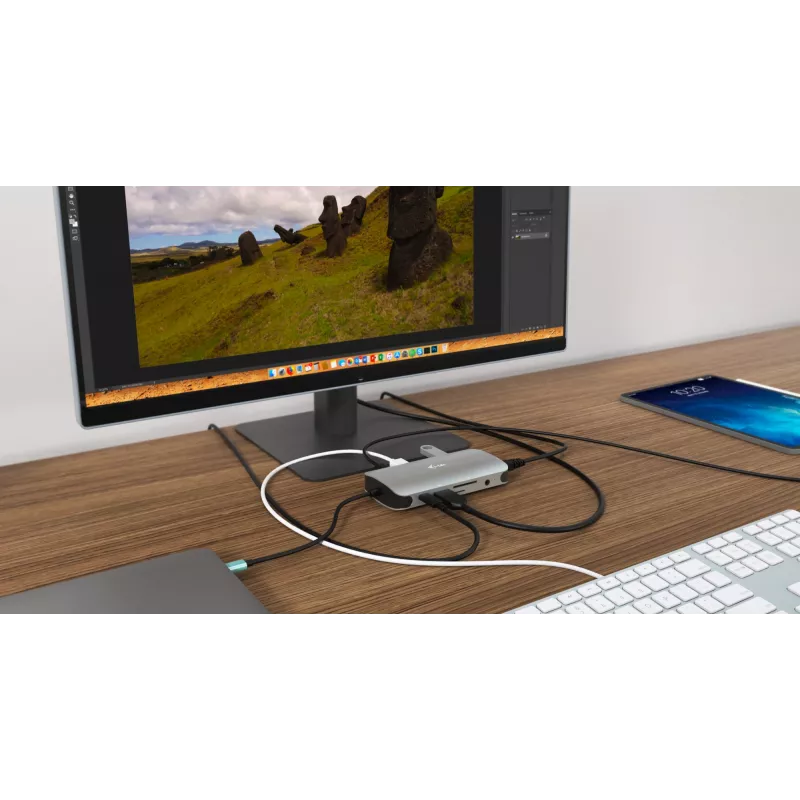

• Connecting a laptop or tablet to an external monitor or projector
• Users who need wired gigabit Ethernet connection
• Photographers and smartphone users who transfer files from SD/microSD cards
• Working with multiple USB peripherals (keyboard, mouse, external drive)

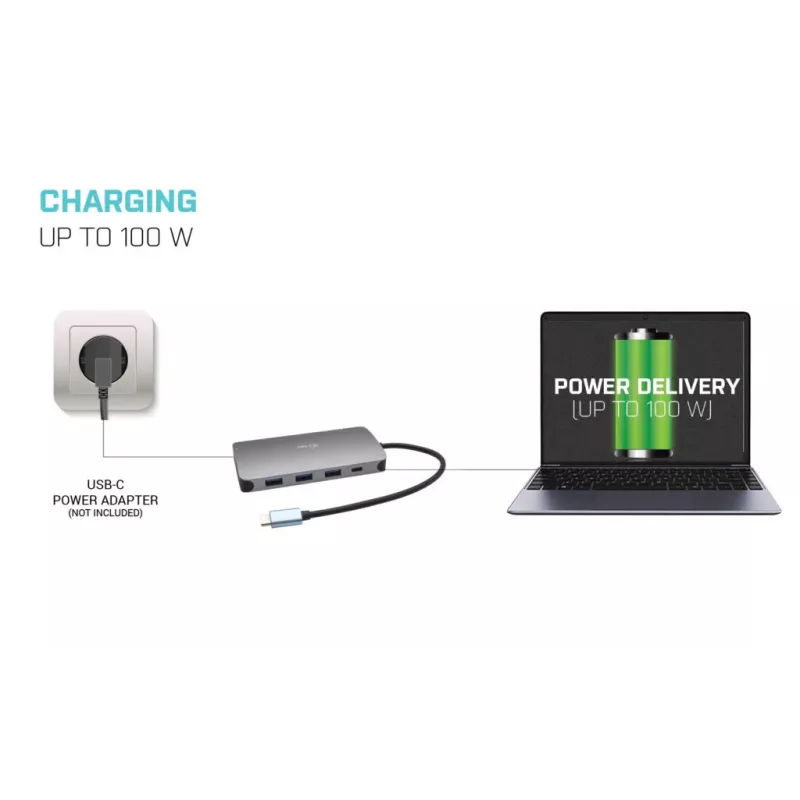

• Charging laptops and tablets via USB-C Power Delivery

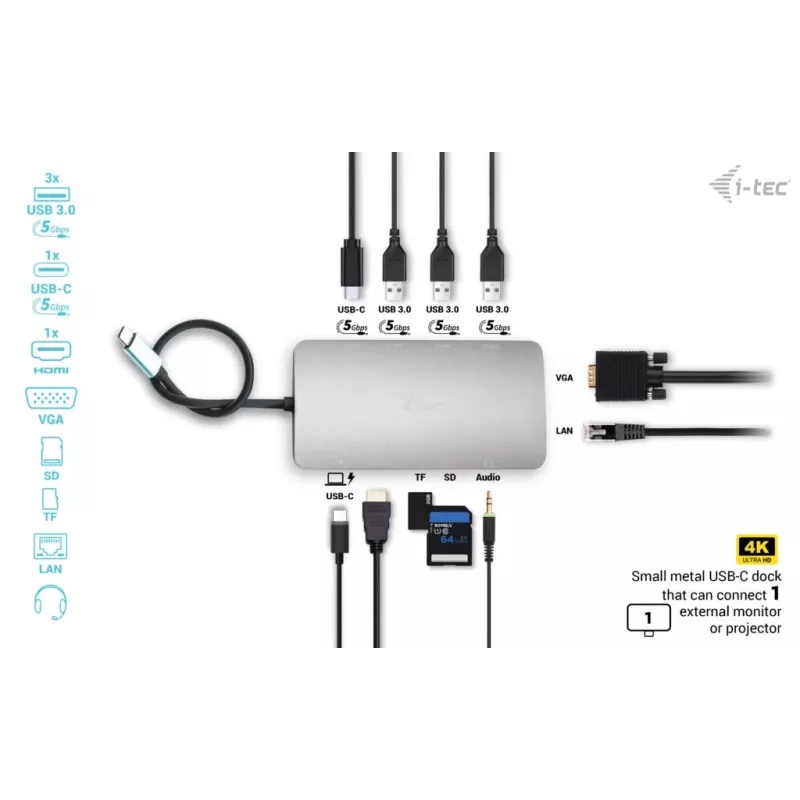

Key specifications

• Video output: HDMI and VGA (both can be used simultaneously; mirrored image)
• Maximum HDMI resolution: up to 4K @ 60 Hz
• Power Delivery: up to 100 W
• USB: 3 × USB 3.0 and 1 × USB-C
• Card readers: SD and microSD slots
• Ethernet: Gigabit RJ-45 (10/100/1000 Mbps)
• Audio: combined headset/microphone jack on front panel
• Compatibility: Windows 10, macOS, Android, Chrome OS, Linux; Thunderbolt 3 compatible

How to use

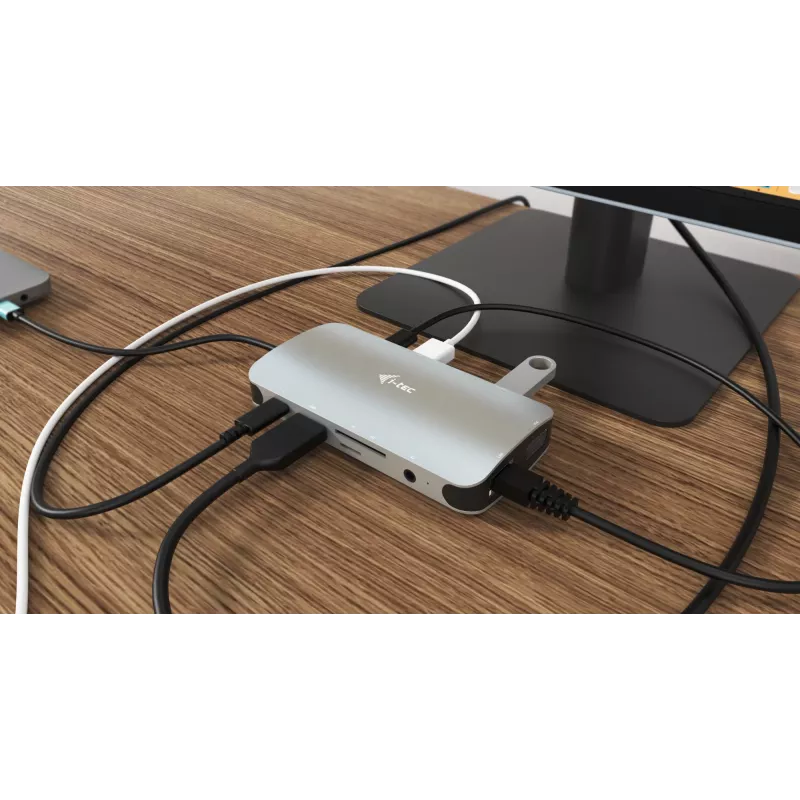

Connect the integrated USB-C cable to a compatible USB-C or Thunderbolt 3 port on your laptop or tablet. Attach an external display using the HDMI or VGA port; if both are connected simultaneously they will show the same image. Plug USB devices into the USB-A or USB-C ports, insert SD or microSD cards into the appropriate slots, and connect a wired network cable to the RJ-45 port for internet access. If necessary, connect a headset to the combined audio jack. Ensure the host device supports USB-C Power Delivery to charge with up to 100 W.

Recommendations

Use a high-quality HDMI cable for 4K@60 Hz output and a CAT5e or CAT6 cable for optimal gigabit Ethernet performance. For charging at the maximum 100 W, confirm both the dock and the laptop/tablet support the required Power Delivery profile.
