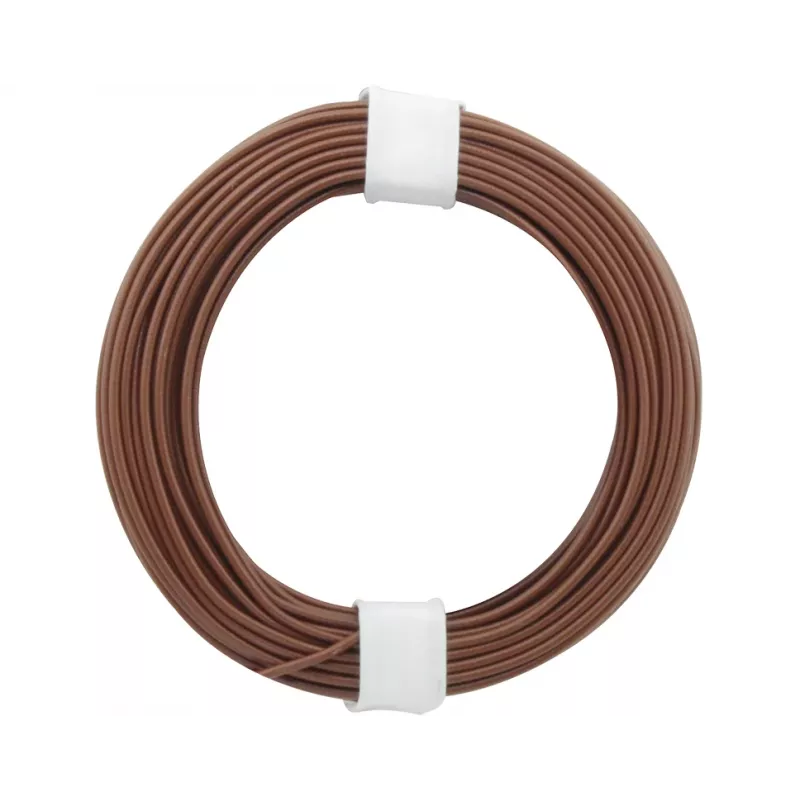

Donau Elektronik 118-8 litze 1 x 0,14 mm² bruin 10 m

With a conductor resistance of just 132 Ohm/km, this tinned copper stranded wire delivers efficient signal and power transmission over its 10-metre length. The 0.14 mm² cross-section is ideal for low-current applications where flexibility and durability matter.

Overview

The Donau Elektronik 118-8 is a single-core stranded wire engineered for reliable performance in demanding electrical and electronic projects. Its tinned copper conductor offers excellent corrosion resistance and solderability, while the PVC insulation provides robust protection against abrasion and environmental factors. Rated for voltages up to 300 V and temperatures from -30 to +80 °C, this wire is suitable for a wide range of indoor applications, including prototyping, control panels, and low-voltage wiring.

What stands out

• Tinned copper conductor for enhanced corrosion resistance and easy soldering
• Flexible stranded design with 18 strands of 0.10 mm diameter for easy routing
• PVC insulation rated for 300 V and a wide temperature range of -30 to +80 °C
• Compact 1.2 mm outer diameter fits tight spaces
• Brown colour for clear identification in multi-wire installations

Technical details

• Wire type: stranded (Litze)
• Number of cores: 1
• Conductor cross-section: 0.14 mm²
• Conductor material: tinned copper
• Insulation material: PVC
• Nominal voltage: 300 V
• Temperature range: -30 to +80 °C
• Outer diameter: 1.2 mm
• Number of strands: 18
• Strand diameter: 0.10 mm
• Conductor resistance: 132 Ohm/km
• Length: 10 m

Our verdict

A dependable choice for low-voltage wiring tasks, the Donau Elektronik 118-8 combines flexibility, corrosion resistance, and consistent electrical performance in a compact, easy-to-handle package.
