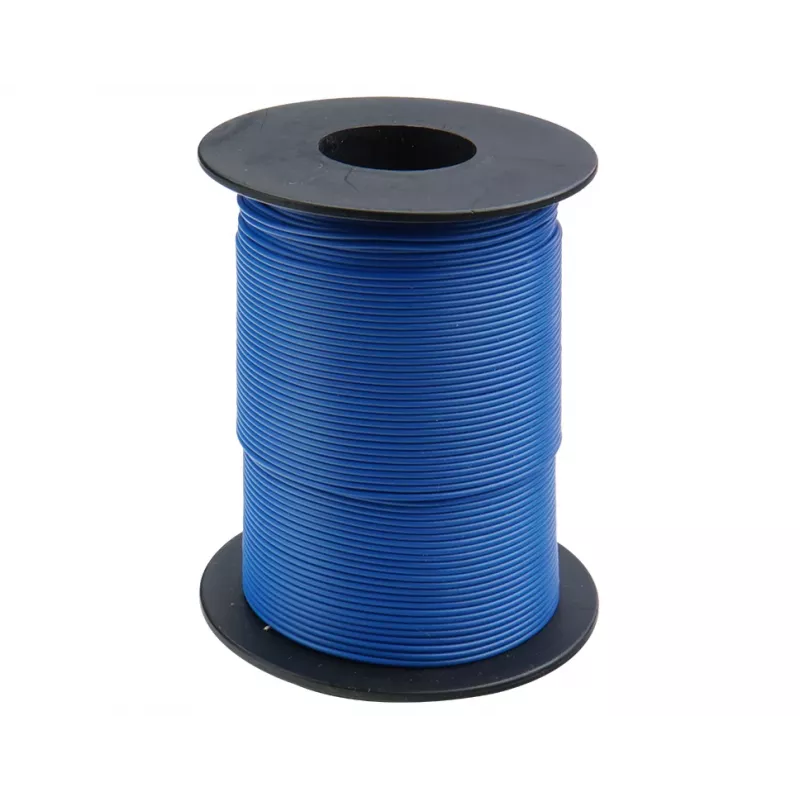

Donau Elektronik 119-12 soepele draad 1 x 0,14 mm² blauw 100 m

For electronics work, model making, and low-voltage circuits, this 100 m spool of blue stranded wire provides a reliable single-core conductor. The fine-stranded copper core with a cross-section of 0.14 mm² (26 AWG) offers flexibility for routing in tight spaces, while the PVC insulation supports use in general-purpose wiring.

Key specifications

• Conductor configuration: Single core
• Cross-section: 0.14 mm² (26 AWG)
• Length: 100 m
• Insulation colour: Blue
• Conductor material: Copper
• Insulation material: PVC
• Rated voltage: 300 V
• Temperature range: -20°C to +80°C
• Outer diameter: 1.2 mm
• Packaging: Spool / reel

Why choose it

The fine-stranded copper conductor provides good flexibility, making it easy to handle and route in confined spaces. The PVC insulation offers basic protection against abrasion and moisture, suitable for low-voltage applications.

Ideal use cases

• Internal wiring of electronic devices
• Model making and hobby projects
• Low-voltage circuits and prototypes

Good to know

The wire is supplied on a 100 m spool, convenient for continuous use. The blue insulation allows for colour coding in multi-wire installations.
