Donau Elektronik 119-13 schakeldraad 1 x 0,14 mm² geel 100 m

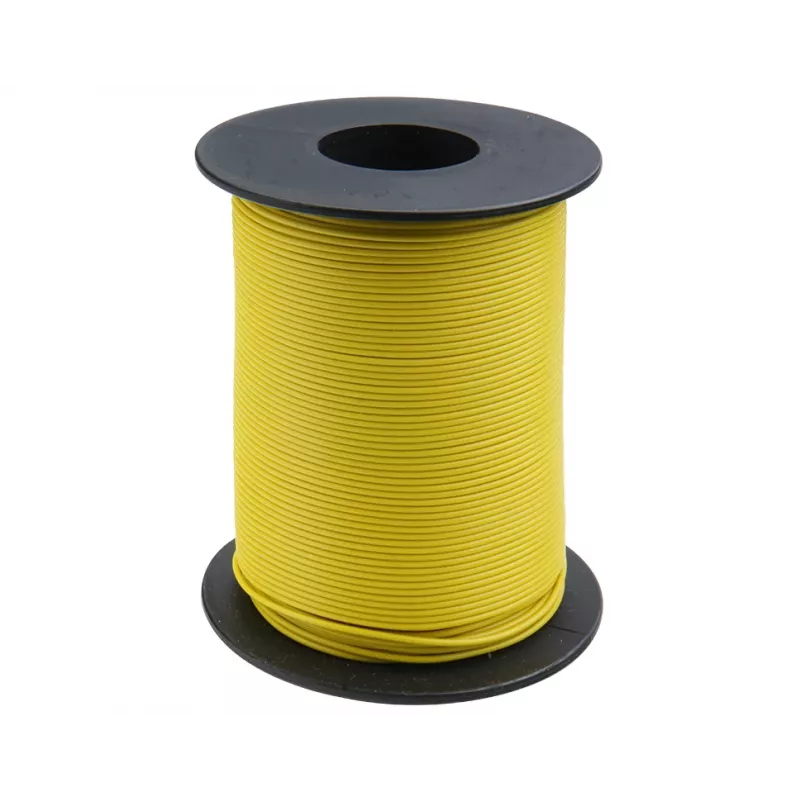

In electronics labs, repair shops, and prototyping benches, a reliable single-core hook-up wire is essential for point-to-point wiring, breadboard connections, and low-voltage signal routing. The Donau Elektronik 119-13 delivers exactly that: a 100-meter spool of flexible, tinned copper stranded wire with a cross-section of 0.14 mm² (approx. 26 AWG) and bright yellow PVC insulation. It is ideal for creating neat, color-coded circuits in test fixtures, control panels, and educational projects.

Key specifications

• Conductor: stranded tinned copper, 0.14 mm² (approx. 26 AWG)
• Insulation: PVC, yellow, outer diameter approx. 1.2 mm
• Length: 100 m on spool
• Rated voltage: 300 V
• Temperature range: -30°C to +80°C
• Max current rating: approx. 1.5 A
• Flammability: IEC 60332-1-2
• RoHS compliant

Why choose it

The tinned copper strands resist corrosion and are easy to solder, ensuring long-term connection integrity. The PVC insulation is tough yet flexible, allowing for clean routing and strain relief. The yellow color provides high visibility for identification in complex wiring harnesses. Supplied on a convenient spool, the wire stays tangle-free and ready to use.

Ideal use cases

• Prototyping and breadboarding in electronics labs
• Internal wiring of low-voltage devices and control panels
• Repair and modification of consumer electronics
• Educational projects and STEM workshops
• Automotive and marine low-voltage signal wiring

Good to know

This wire is intended for general-purpose, low-voltage applications where flexibility and ease of soldering are priorities. It meets RoHS requirements and has a flammability rating of IEC 60332-1-2, making it suitable for use in a wide range of indoor environments. Always verify that the voltage and current ratings match your specific application requirements.
