Donau Elektronik 119-15 litze 1 x 0,14 mm² wit 100 m

For fine internal wiring where space is tight and flexibility matters, this 100-metre spool of 0.14 mm² stranded wire offers a practical alternative to solid-core hook-up wire. The tinned copper conductor resists corrosion and solders cleanly, while the thin PVC insulation keeps the overall diameter down to 1.4 mm — ideal for model building, low-voltage control circuits, and dense electronics enclosures.

Highlights

• Single-core stranded wire, 0.14 mm² cross-section (approx. 26 AWG)
• Tinned copper conductor with 18 strands of 0.10 mm for flexibility
• White PVC insulation, outer diameter 1.4 mm

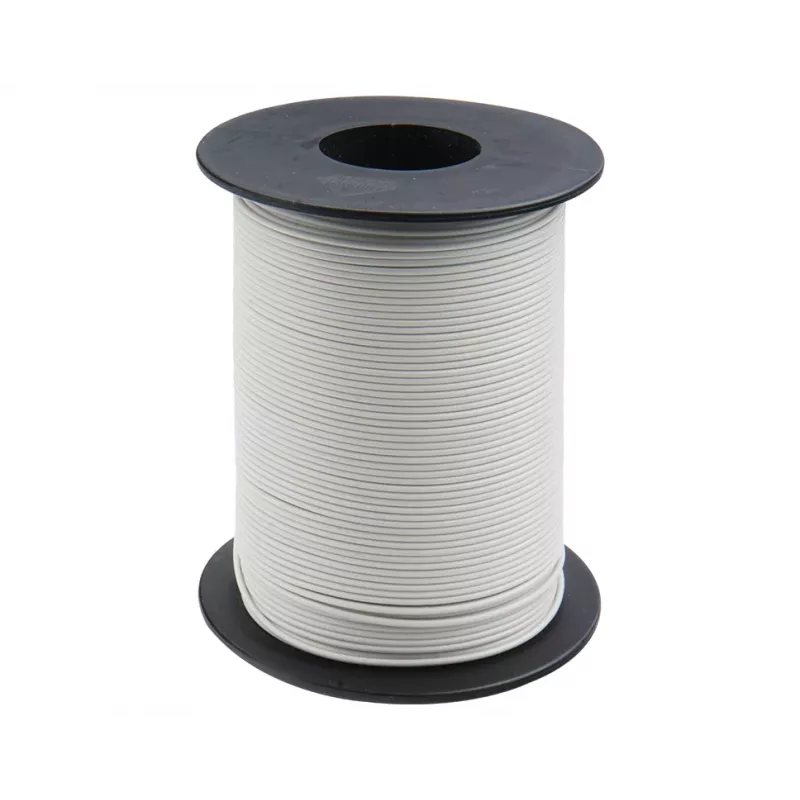

• 100 m continuous length on a spool
• Rated for 300 V, temperature range -30 °C to +80 °C
• Conductor resistance 130 Ω/km, RoHS compliant

In daily use

The fine stranding allows repeated bending without breaking, making it suitable for wiring that may be moved or adjusted during assembly. The white jacket provides clear identification in multi-colour harnesses, and the tinned surface prevents oxidation in humid environments. Cut to length as needed; the spool keeps the wire tangle-free in workshop or production settings.

Full specifications

• Product type: stranded wire (hook-up wire)
• Number of cores: 1
• Conductor cross-section: 0.14 mm²
• AWG equivalent: 26 AWG
• Conductor material: tinned copper
• Number of strands: 18
• Strand diameter: 0.10 mm
• Insulation material: PVC (polyvinyl chloride)
• Wire colour: white
• Outer diameter (insulated): 1.4 mm
• Length: 100 m
• Rated voltage: 300 V
• Temperature range: -30 °C to +80 °C
• Conductor resistance: 130 Ω/km
• Application: internal wiring, model building, low voltage
• Packaging: spool
• RoHS compliant: yes

Final note

A dependable general-purpose wire for prototyping and repair work, offering good flexibility and easy soldering in a convenient 100-metre spool.
