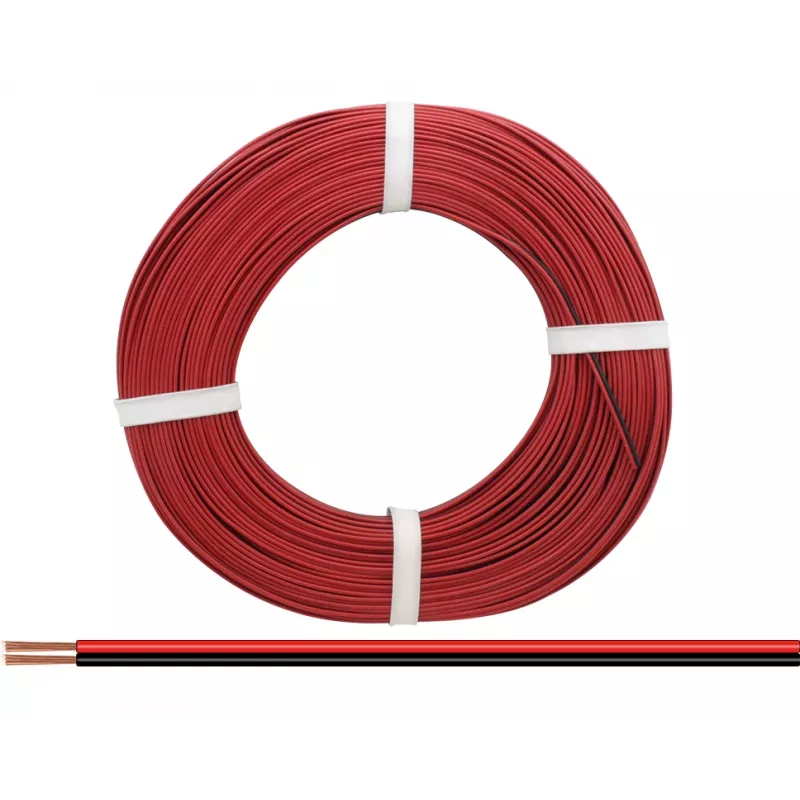

Donau Elektronik 218-5-25 soepele draad 2 x 0,14 mm² rood/zwart 25 m

This stranded wire from Donau Elektronik offers a practical solution for low-voltage electronics and model making, featuring two parallel cores in red and black for easy polarity identification. The 25-meter length on a spool provides ample material for multiple projects, while the tinned copper conductors ensure reliable solderability and corrosion resistance.

Highlights

• Two-core stranded wire with red and black PVC insulation
• 0.14 mm² cross-section, approximately 26 AWG
• Flexible construction for easy routing in tight spaces
• Supplied on a 25 m spool

In daily use

The parallel twin-core design simplifies wiring tasks, and the high flexibility allows for neat installations in enclosures or along moving parts. Rated for 300 V and 80 °C, it suits general-purpose electronics, internal wiring, and low-voltage applications.

Full specifications

• Product type: Stranded wire
• Number of cores: 2
• Core cross-section: 0.14 mm²
• Wire gauge: approx. 26 AWG
• Conductor material: Tinned copper
• Insulation material: PVC
• Core colours: Red, black
• Length: 25 m
• Rated voltage: 300 V
• Rated temperature: 80 °C
• Stranding construction: 7 x 0.16 mm
• Outer diameter per insulated core: approx. 1.2 mm
• Cable configuration: Parallel twin core
• Conductor resistance: approx. 130 Ohm/km at 20 °C
• Flexibility: High
• Packaging: Spool / reel

Final note

A dependable choice for hobbyists and professionals needing a flexible, colour-coded hook-up wire in a convenient bulk length.
