Draadloos access point Mikrotik WAP R 2.4 GHz 802.11n

The Mikrotik WAP R is a compact weatherproof 2.4 GHz wireless access point (802.11n) with an integrated miniPCI-e slot for an optional LTE card and external LTE antennas. It provides one 10/100 Ethernet LAN port for wired devices and supports multiple power options, making it suitable for both stationary and mobile installations.

Advantages

The device offers outdoor-rated housing for installation on walls, vehicles or porches and includes a desktop stand for indoor placement near a window. It supports 9–30 V PoE-in via the Ethernet port, a DC jack and an automotive power connector, enabling flexible powering in cars, buses or other mobile environments. With IEEE 802.11n/g/b compatibility and a maximum data rate of 100 Mbit/s, it delivers reliable 2.4 GHz wireless connectivity while keeping power consumption low (maximum 6 W).

Suitable for

• Providing wireless access to phones and computers in outdoor or semi-outdoor locations

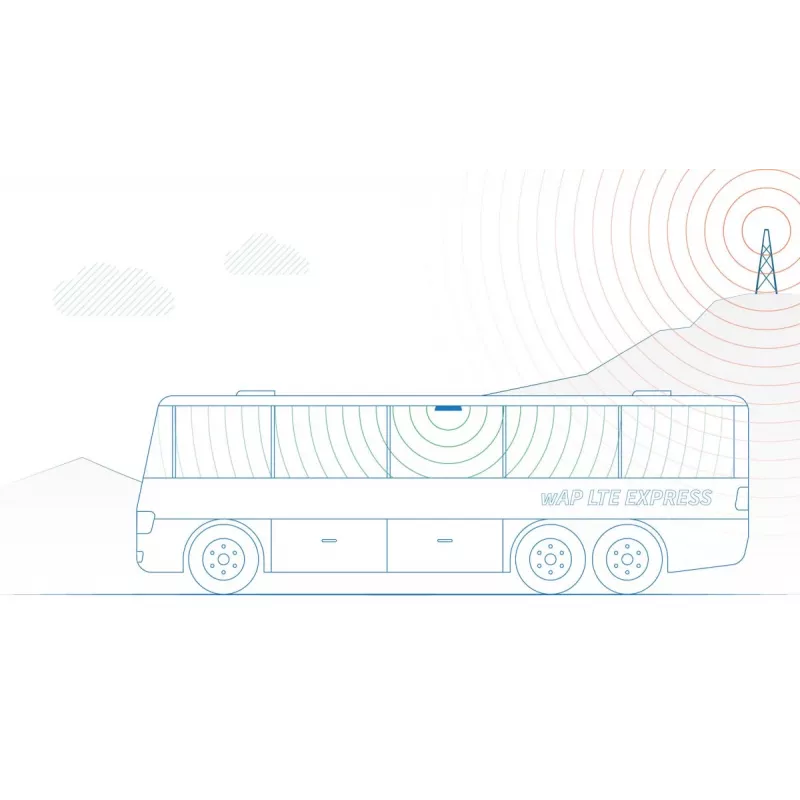

• Mobile installations in vehicles such as cars, buses or trains

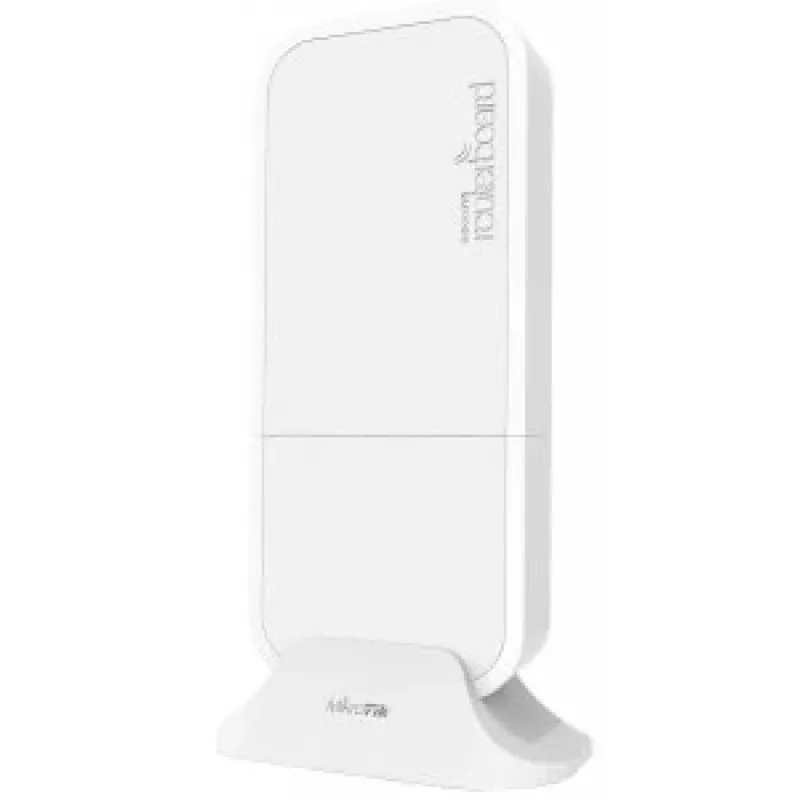

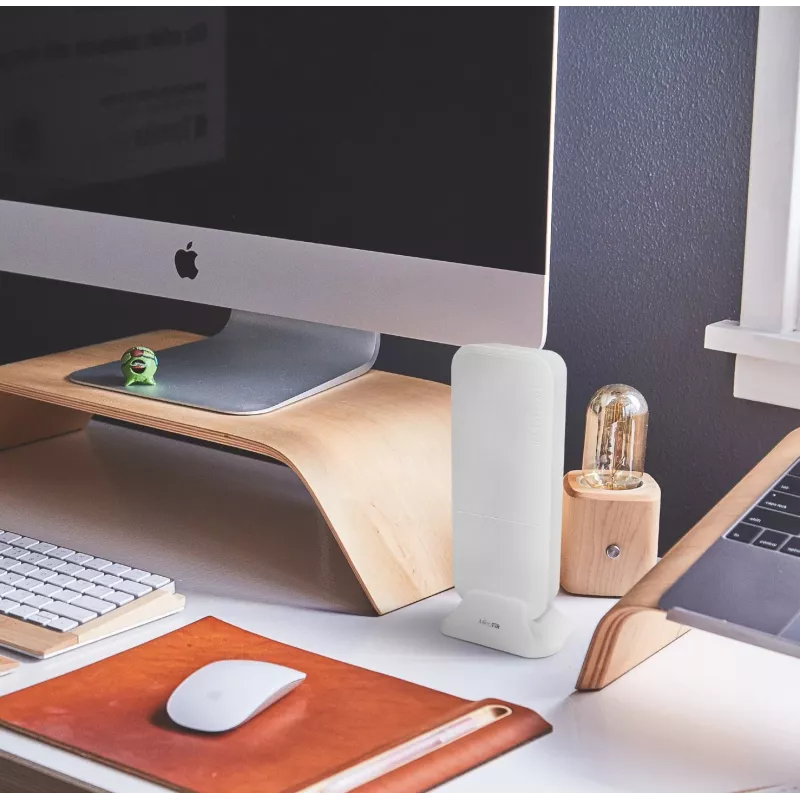

• Indoor placement near windows using the included desktop stand

Key specifications

• Wireless frequency: 2.4 GHz (IEEE 802.11n/g/b)
• Maximum data transfer rate: 100 Mbit/s
• Ethernet LAN: 1 × 10/100 Mbit/s (RJ-45)

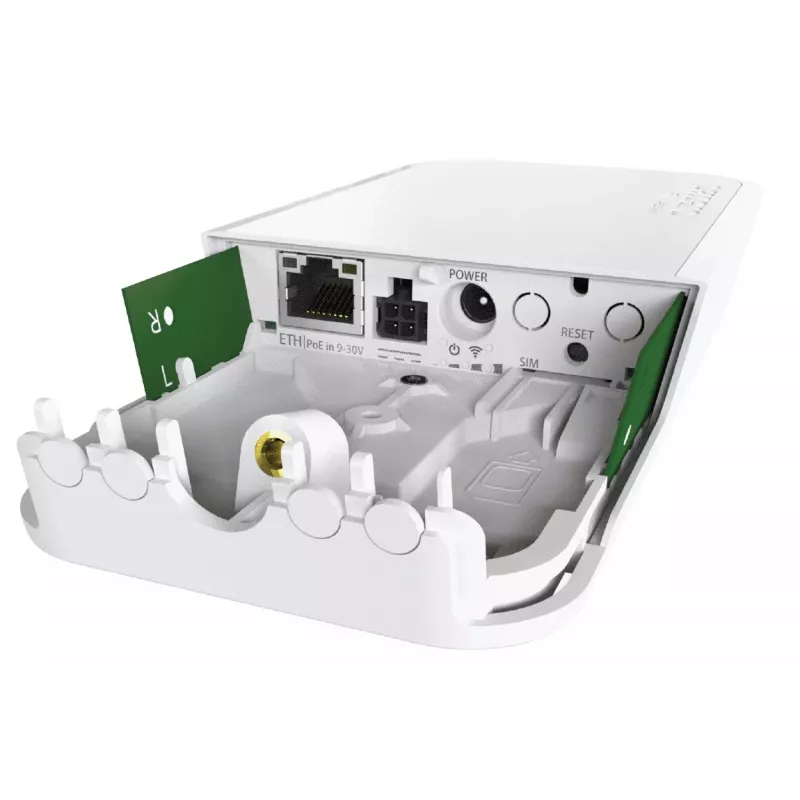

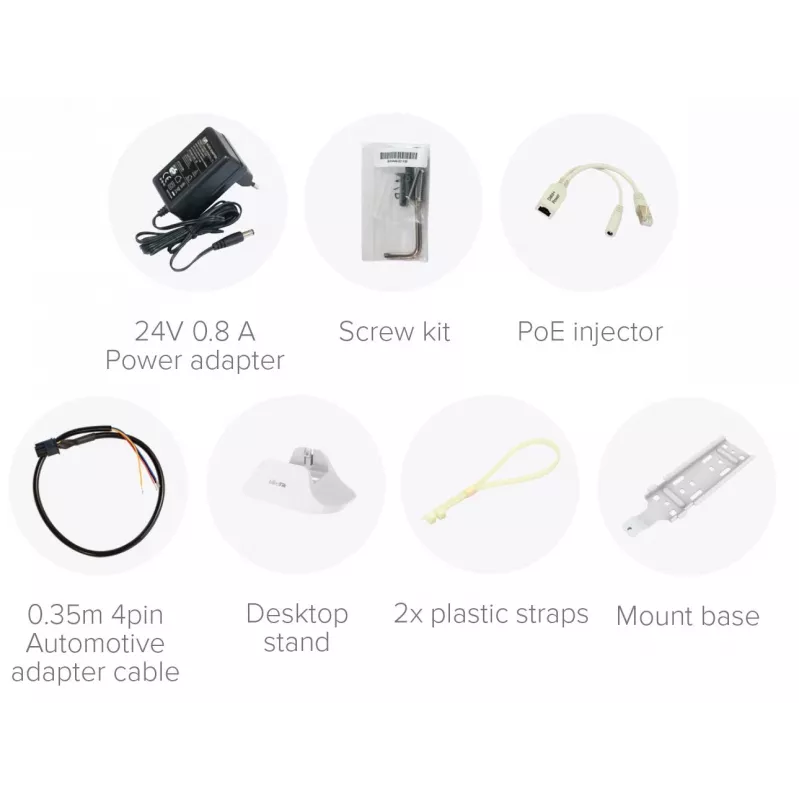

• Power options: 9–30 V PoE-in (Ethernet), DC jack, automotive connector
• Maximum power consumption: 6 W
• Color: White
• Expandable: miniPCI-e slot for LTE card; external LTE antennas included

How to use

Install the WAP R outdoors on a wall, porch or vehicle mount using suitable fasteners, or place it indoors on the supplied desktop stand near a window to improve signal. Insert an LTE miniPCI-e card if mobile cellular backhaul is required and connect the external LTE antennas. Connect a wired device to the 10/100 Ethernet port as needed and power the unit via PoE-in, DC jack or the automotive connector. Configure wireless settings and network access through MikroTik RouterOS or the device’s management interface.

Recommendations

For best wireless coverage, mount the device with a clear line of sight to the coverage area and ensure antennas are positioned according to the enclosure orientation. Use PoE-in for simplified single-cable installations; in vehicles verify the automotive connector wiring and voltage range (9–30 V) before use.
