DSIT 12U mini serverrack met glazen deur 600x600x720 mm (DS6612-MINI)

The DSIT 12U mini server rack offers a compact, secure enclosure for 19-inch equipment in space-constrained environments. Its tempered glass front door combines visibility with lockable protection, while the fully assembled steel frame supports up to 60 kg of static load, making it ideal for small business networks or edge deployments.

Advantages

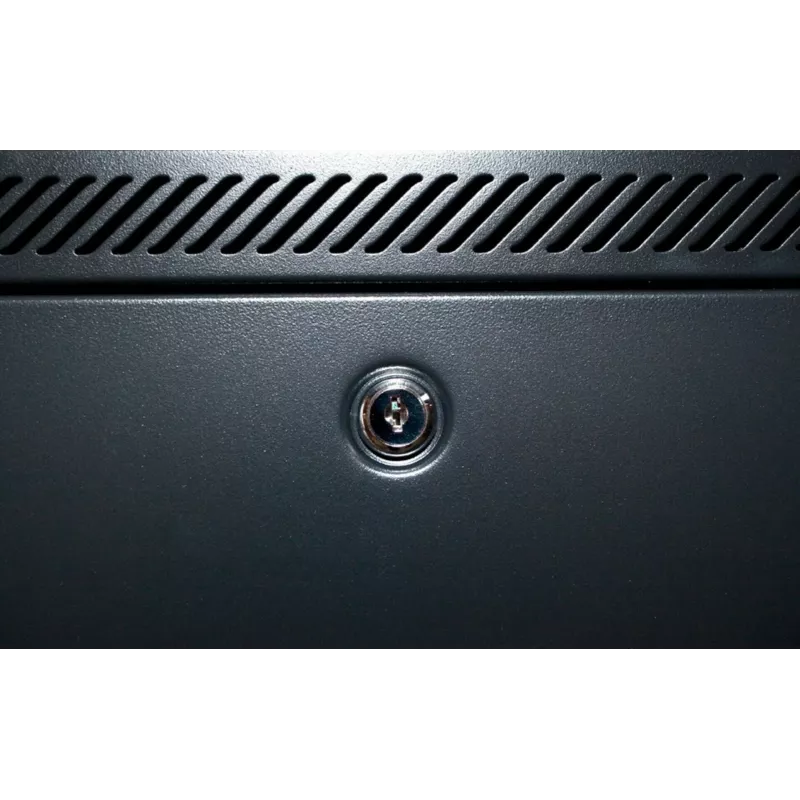

Wall-mountable or freestanding, this rack adapts to your layout. Removable, lockable side panels and tool-less cable entry with brush strips simplify installation and maintenance. Passive ventilation keeps equipment cool, with an optional fan unit ready for higher thermal loads.

Suitable for

• Small and home offices needing a tidy network cabinet
• Retail or branch locations with limited floor space
• Edge computing and IoT gateways requiring secure, lockable enclosures
• IT closets where a compact 12U footprint is preferred

Key specifications

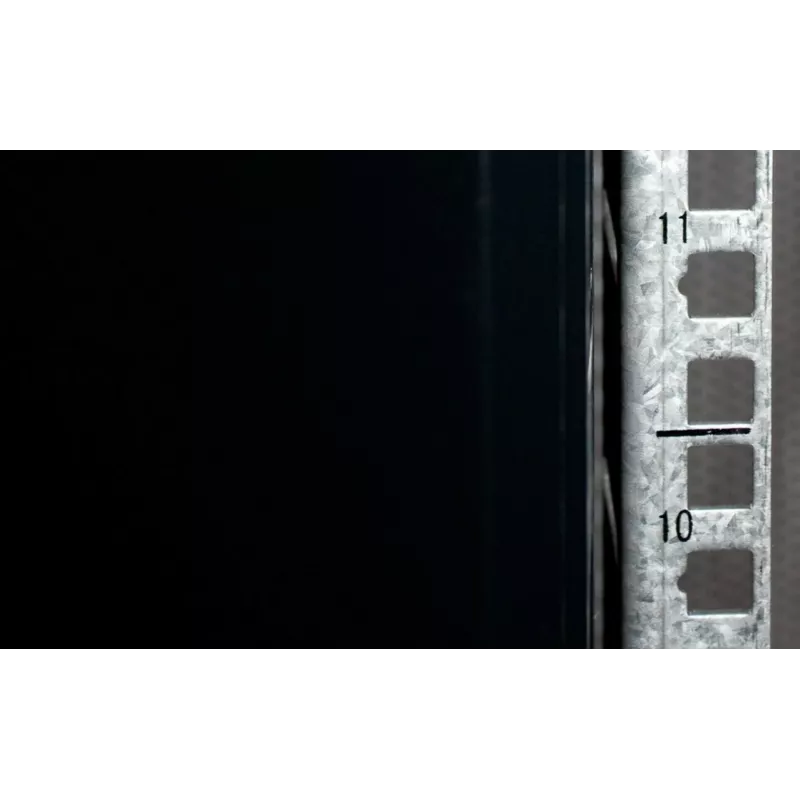

• 12U rack capacity, 19-inch mounting profiles (front and rear, adjustable depth)
• External dimensions: 600 mm width x 600 mm depth x 720 mm height
• Internal usable depth approximately 520 mm

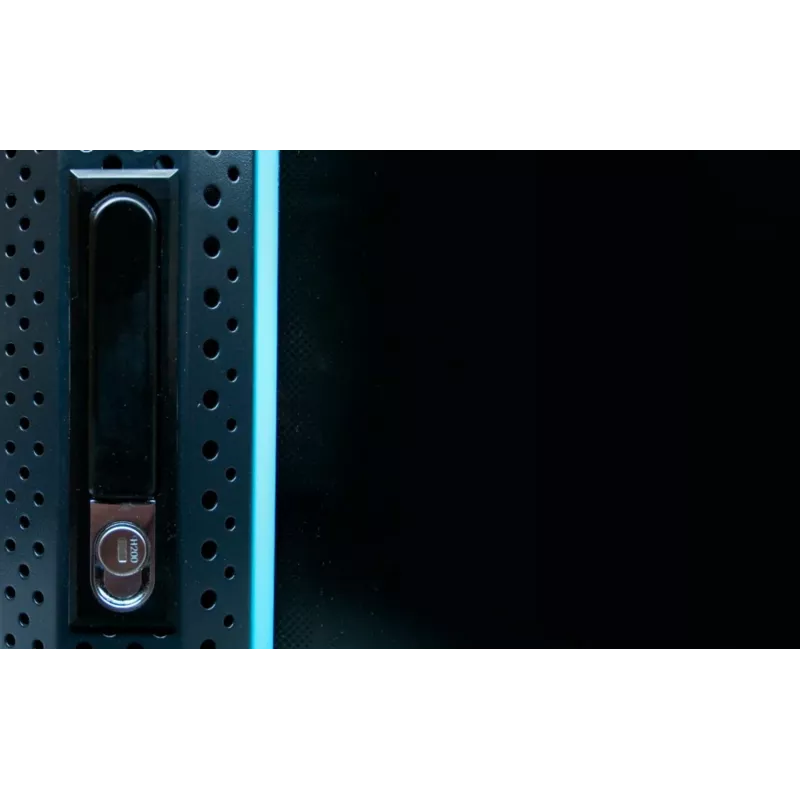

• Tempered glass front door with cylinder lock; solid steel rear panel

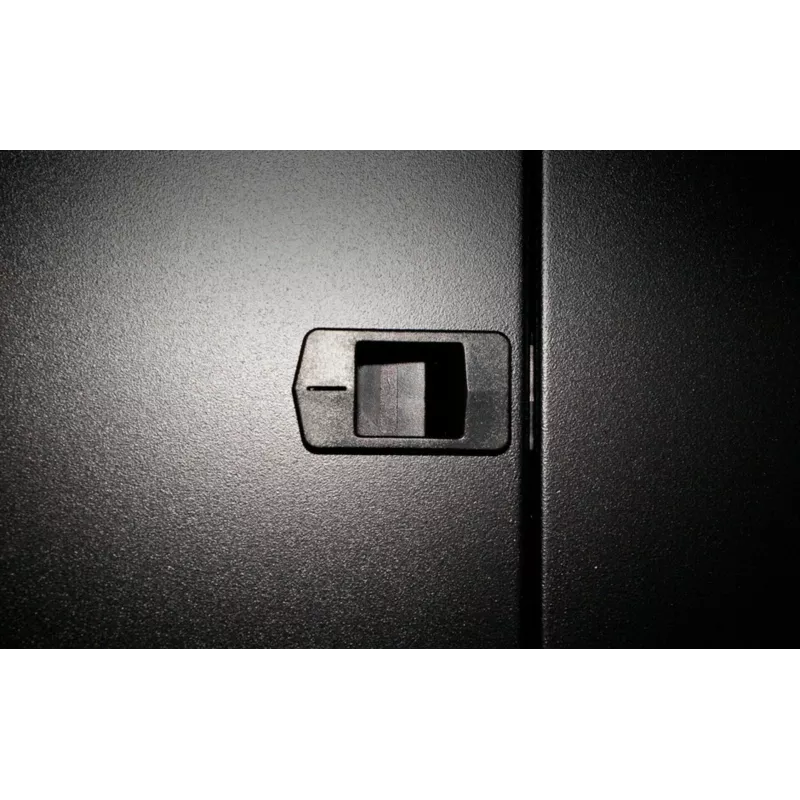

• Removable, lockable side panels; SPCC cold rolled steel construction
• Black RAL 9005 finish; IP20 protection class
• Max static load capacity: 60 kg; passive ventilation with optional fan support
• Fully assembled; compliant with RoHS and CE standards

Recommendations

Pair with a 600 mm deep rack shelf or sliding rail kit for easy equipment access. For high-density installations, add a fan unit to the top vent to maintain optimal airflow.
