DSIT 6U wandmontage serverkast met geperforeerde voordeur 600x450x367mm (DS6406PP)

With a load capacity of 60 kg, this 6U wall-mount cabinet securely houses networking and IT equipment in a compact footprint.

Overview

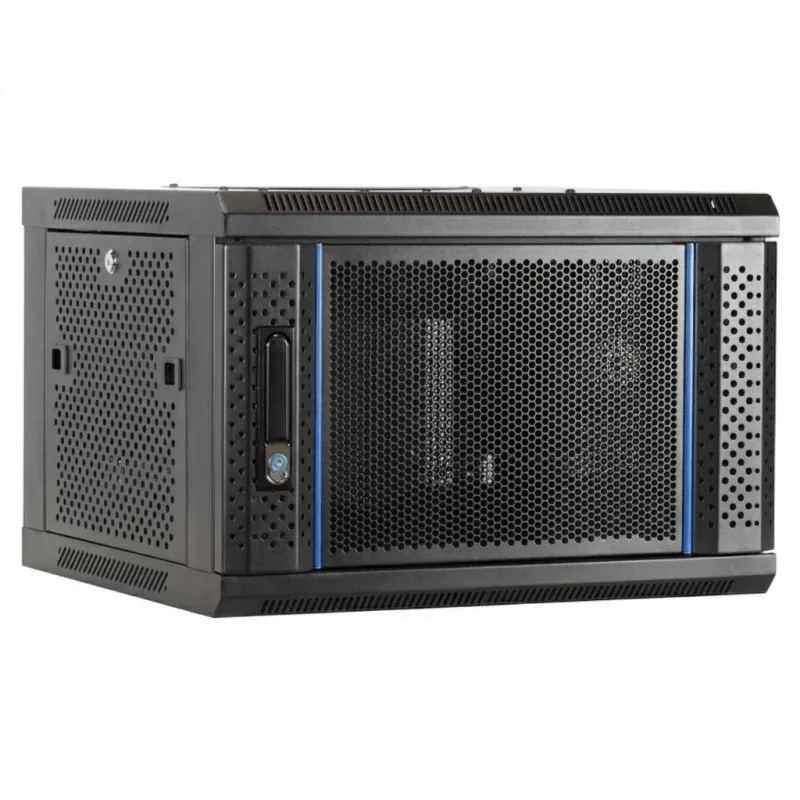

The DSIT DS6406PP is a 6U wall-mount server cabinet designed for 19-inch rack equipment. Its perforated front door allows passive airflow to keep installed devices cool, while the lockable door and removable side panels provide security and easy access during installation and maintenance.

What stands out

• Perforated steel front door with lock for security and ventilation
• Removable side panels for convenient equipment access
• SPCC cold rolled steel construction with black powder coating (RAL 9005)
• Top and bottom cable entry with brush strips for clean cable management
• Supports optional fan unit installation for active cooling

Technical details

• Rack capacity: 6U
• External dimensions (WxDxH): 600 x 450 x 367 mm
• Usable depth: approx. 350 mm
• Load capacity: 60 kg
• Material: SPCC cold rolled steel
• Surface finish: powder coated
• Colour: black (RAL 9005)
• Protection class: IP20
• Rack standard: 19-inch (IEC 60297-3-100)
• Included accessories: 19" mounting rails, cage nuts & screws, keys

Our verdict

A robust and secure wall-mount cabinet for small IT deployments, offering good ventilation and easy maintenance in a space-saving design.
