DSIT Alfaco Cat5e F/UTP solid core netwerkkabel 305m rol grijs LSZH Eca

Engineered for reliable Gigabit Ethernet performance, this Cat5e F/UTP cable delivers 1000 Mbps data rates over 100 MHz bandwidth, ensuring seamless connectivity for demanding network installations.

Overview

The DSIT Alfaco Cat5e F/UTP network installation cable features solid bare copper conductors with overall foil shielding, providing excellent protection against electromagnetic interference. The LSZH (Low Smoke Zero Halogen) jacket in grey ensures safety in fire-sensitive environments, while the Eca CPR fire rating confirms compliance with European standards.

What stands out

• Solid core 24 AWG bare copper conductors for superior signal integrity over long distances
• F/UTP shielding reduces alien crosstalk and EMI, ideal for high-density installations
• LSZH jacket emits low smoke and no halogen gases, enhancing safety in enclosed spaces

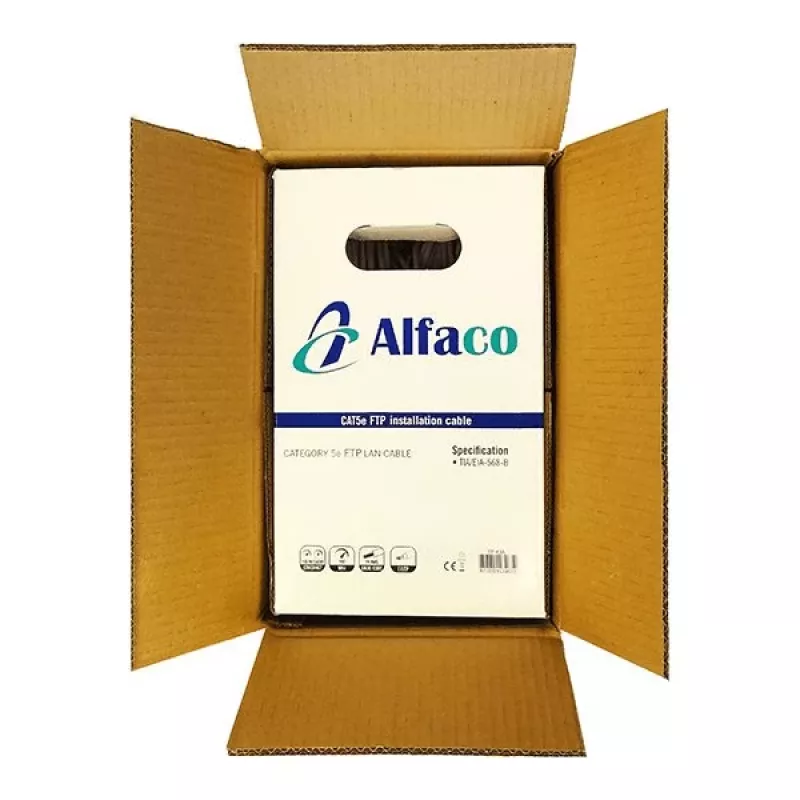

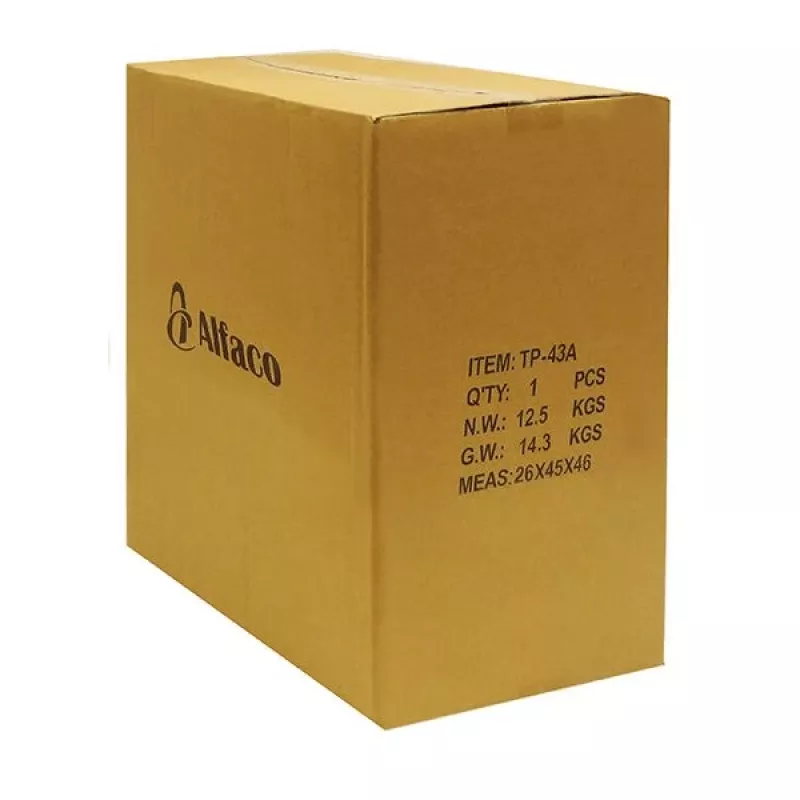

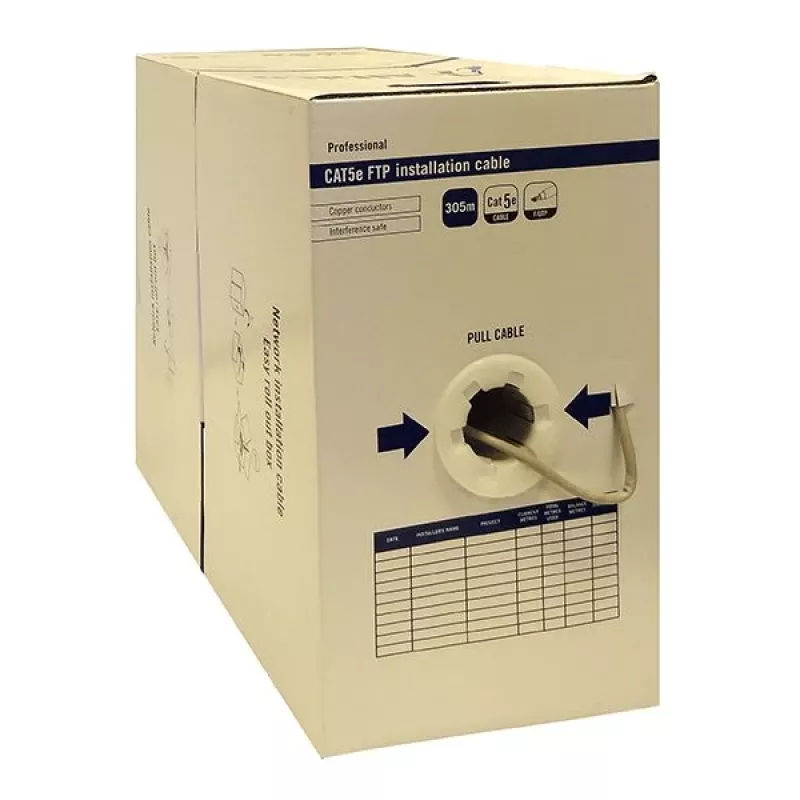

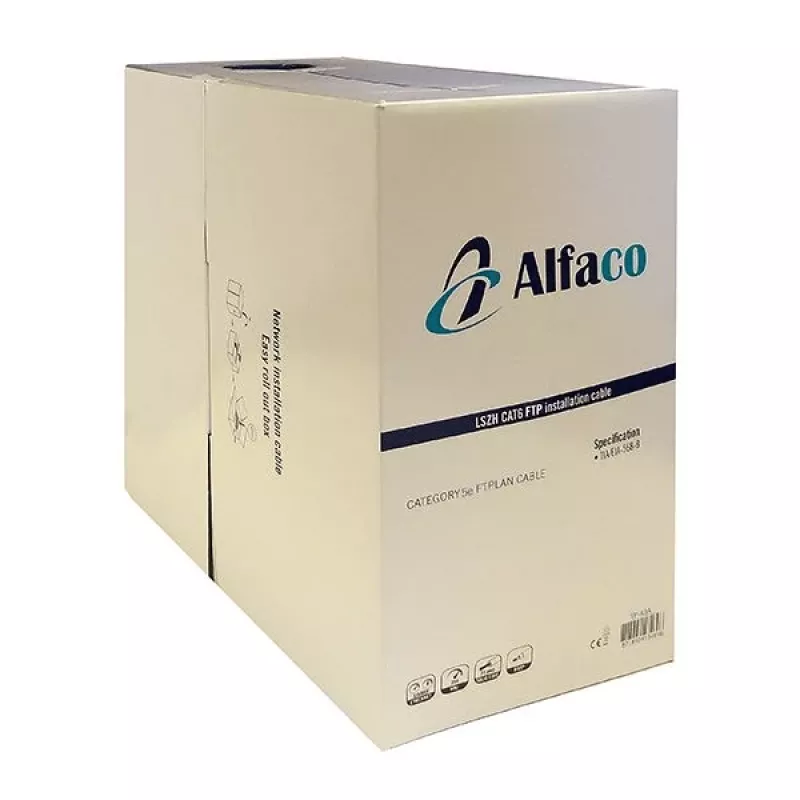

• Supplied on a 305-meter reel-in-box for convenient pulling and storage
• Meets ISO/IEC 11801 and TIA/EIA-568-C.2 standards for Cat5e permanent links

Technical details

• Cable type: Cat5e F/UTP (overall foil shield, unshielded twisted pairs)
• Conductor: solid bare copper, 24 AWG, 4 pairs
• Jacket: LSZH, grey, outer diameter 5.2 mm
• Performance: up to 100 MHz, 1000 Mbps, 100 Ohm impedance
• Fire rating: Eca (CPR)
• Operating temperature: -20°C to +60°C
• Length: 305 m (1000 ft)

Our verdict

A dependable choice for permanent indoor installations where performance and safety are paramount. The solid copper conductors and foil shielding ensure stable Gigabit links, while the LSZH jacket and Eca rating provide peace of mind in commercial buildings.
