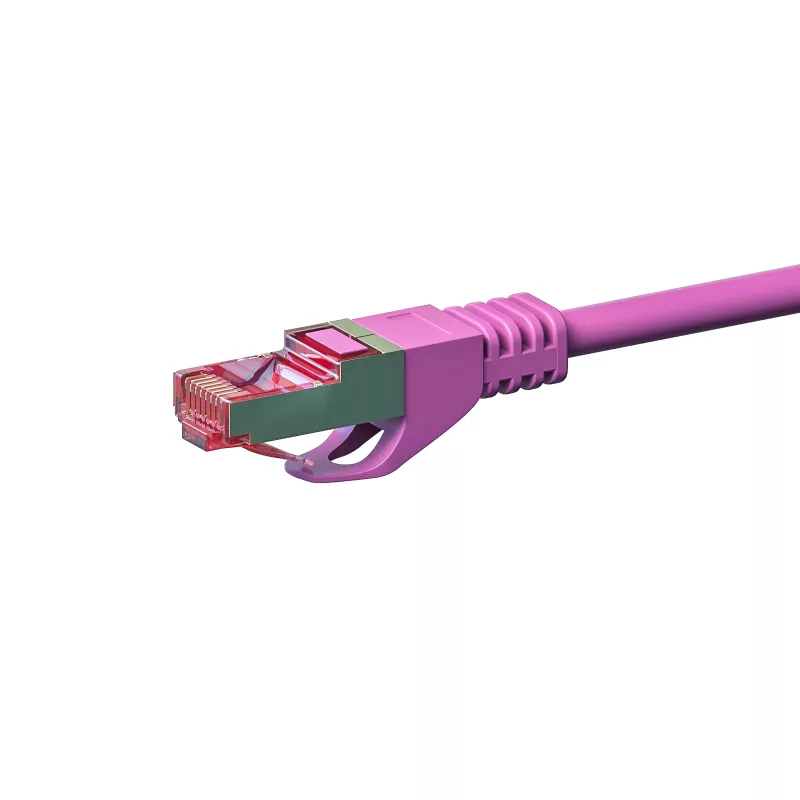

DSIT CAT 6 S/FTP LSOH netwerk-patchkabel, 30 m, roze

For high-density installations where fire safety and signal integrity are non-negotiable, this DSIT 30-metre CAT 6 cable pairs S/FTP shielding with a low-smoke zero-halogen jacket. The result is a link that holds 10-Gigabit speeds over the full run while emitting minimal toxic fumes in the rare event of a fire. Unlike ordinary PVC patch cords, every pair is individually foil-wrapped and the whole bundle is braided, so crosstalk and EMI stay far below the limits even when the cable shares a tray with power lines.

Highlights

• 30 m of stranded 27/7 copper for flexibility without signal loss
• S/FTP: foil on each pair plus overall braid for maximum noise rejection
• LSOH jacket: halogen-free, low smoke, meets IEC 60332-1 flame spread
• Supports 10GBASE-T up to 30 m and PoE/PoE+ for powered devices
• Pink colour simplifies identification in dense patch fields

In daily use

Terminate one end at a wall outlet and the other at a switch or workstation, and the cable disappears into the background. The pink jacket stands out against grey racks and dark conduits, so tracing a run takes seconds instead of minutes. Because the conductors are stranded rather than solid, the cable can be re-routed repeatedly without work-hardening or breaking. The RJ45 plugs are moulded with strain relief, and the TIA/EIA 568B pinout guarantees compatibility with every standard Ethernet device.

Full specifications

• Category: CAT 6, 250 MHz bandwidth
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Jacket: LSOH (Low Smoke Zero Halogen)
• Length: 30 m
• Colour: Pink
• Connectors: RJ45 male to RJ45 male
• Conductor: Copper, AWG 27/7 stranded
• Pairs: 4 twisted pairs, TIA/EIA 568B
• Data rate: up to 10 Gbps (10GBASE-T)
• PoE support: PoE, PoE+
• Outer diameter: ~6.2 mm
• Certifications: CE, RoHS

Final note

When a project calls for a long, safe, high-performance link, this DSIT cable delivers without compromise. Its halogen-free build and robust shielding make it suitable for public buildings, offices, and industrial environments alike.
