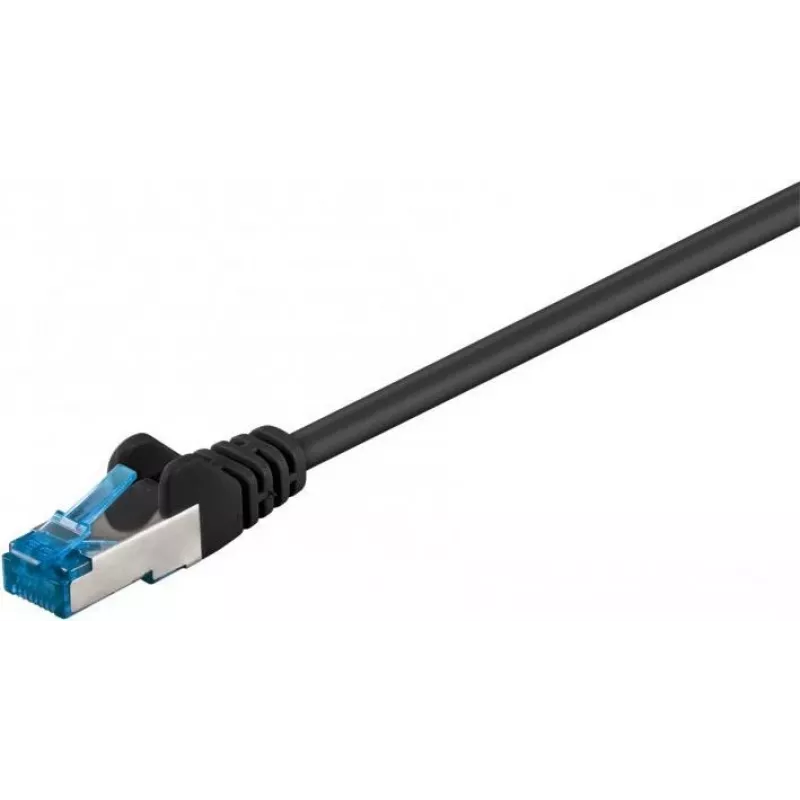

DSIT Cat 6a S/FTP LSOH netwerk-patchkabel, 0,25 m, zwart (DC-6A0-002)

Delivering 10 Gigabit Ethernet speeds over a 500 MHz bandwidth, this DSIT Cat 6a patch cable is built for high-density data center and office environments where performance and safety are non-negotiable. The S/FTP shielding—each pair individually foiled plus an overall braided screen—virtually eliminates alien crosstalk, while the LSOH jacket ensures low smoke and zero halogen emissions in the event of fire.

Overview

The DSIT DC-6A0-002 is a 0.25-meter Cat 6a network patch cable with RJ45 male connectors on both ends. It supports 10GBASE-T Ethernet and is backward compatible with Cat 6, Cat 5e, and Cat 5 networks. The cable uses 100% copper conductors (26 AWG) for reliable signal integrity and gold-plated contacts for corrosion resistance. Its LSOH (Low Smoke Zero Halogen) jacket meets IEC 60332-1 fire safety standards, making it suitable for public buildings, data centers, and confined spaces.

What stands out

• 10 Gbps data transfer rate with 500 MHz bandwidth for demanding applications.
• S/FTP shielding: individual foil per pair plus overall braid for maximum EMI/RFI protection.
• LSOH jacket: low smoke, zero halogen, flame-retardant—safer for people and equipment.
• Short 0.25 m length reduces clutter and improves airflow in high-density racks.
• 100% copper conductors (26 AWG) ensure superior conductivity and PoE support.
• Gold-plated RJ45 connectors with strain relief for durable, repeated mating.
• Backward compatible with Cat 6, Cat 5e, and Cat 5 cabling systems.
• Wired to TIA/EIA-568B standard for consistent performance.

Technical details

• Cable type: Shielded Ethernet Patch Cable (S/FTP)
• Category: Cat 6a (Category 6a)
• Length: 0.25 m
• Colour: Black
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Data transfer rate: 10 Gbps (10GBASE-T)
• Bandwidth: 500 MHz
• Connector type: RJ45 male to RJ45 male
• Conductor material: 100% copper
• Conductor gauge: 26 AWG
• Wiring standard: TIA/EIA-568B
• Number of pairs: 4 twisted pairs
• Fire safety standard: IEC 60332-1
• Impedance: 100 Ohm
• Connector plating: Gold-plated contacts
• Compatibility: Cat 6, Cat 5e, Cat 5

Our verdict

For short-distance, high-speed connections in racks or between adjacent devices, this DSIT Cat 6a cable delivers enterprise-grade shielding and safety in a compact, reliable package. Its LSOH jacket and S/FTP construction make it a smart choice for environments where both performance and fire safety are critical.
