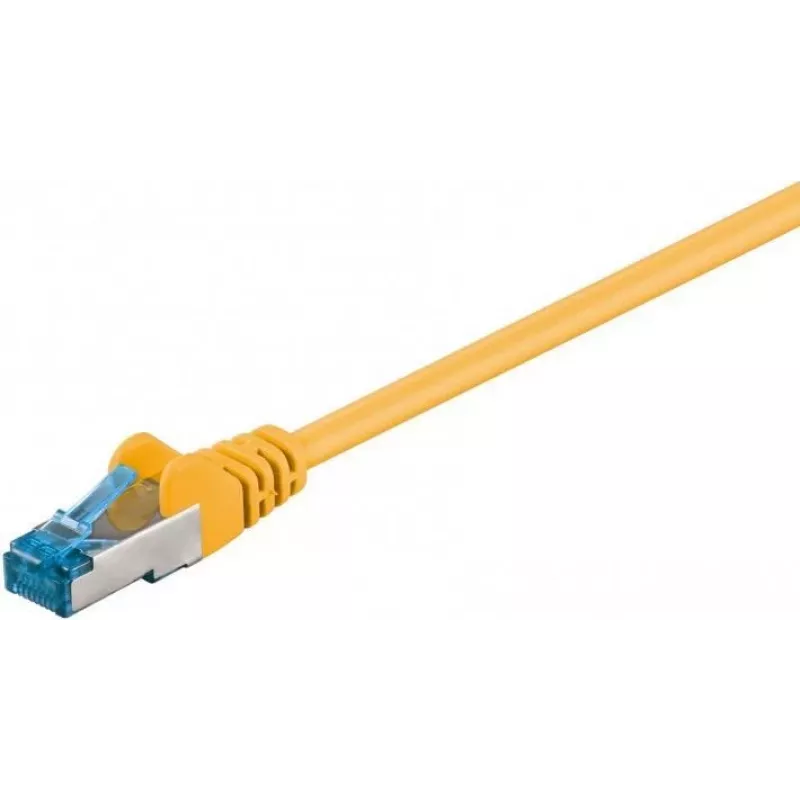

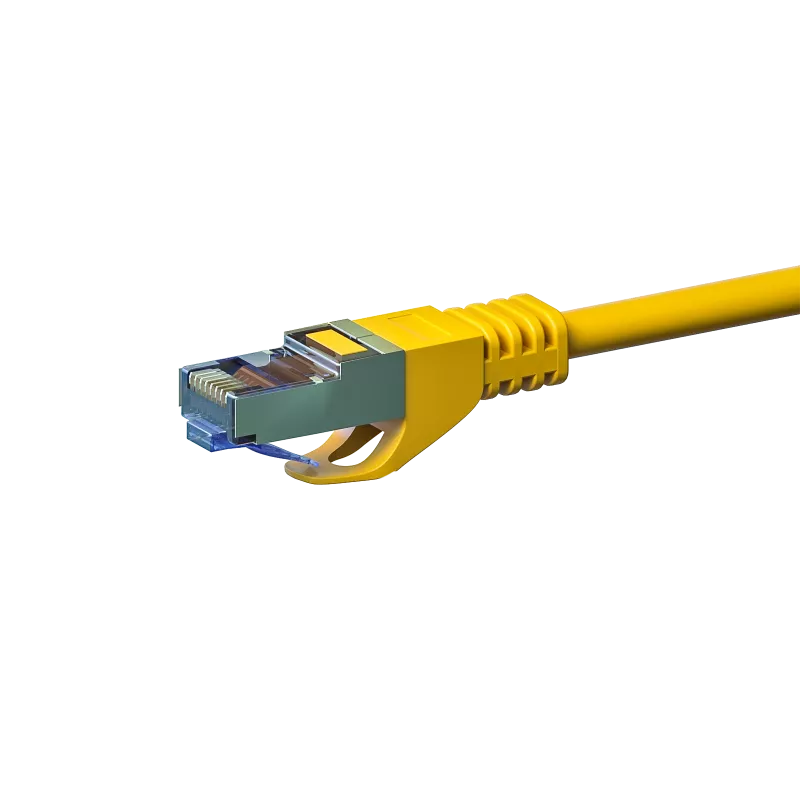

DSIT CAT 6a S/FTP LSOH netwerkkabel, 20 m, geel

When a standard patch cable won’t survive the heat, smoke, or density of a modern server room, the DSIT CAT 6a S/FTP LSOH steps in. Its low-smoke zero-halogen jacket and double shielding (foil around each pair plus an overall braid) make it a safer, cleaner choice for high-performance 10 Gigabit links in offices, data centers, and industrial environments.

Highlights

• CAT 6a performance: supports 10GBASE-T Ethernet up to 500 MHz bandwidth
• S/FTP shielding: individual foil per twisted pair plus overall braid for superior EMI/RFI rejection
• LSOH jacket: low smoke, zero halogen – safer for people and equipment in fire conditions
• 20-meter length: ideal for structured cabling, patch panels, and long equipment runs
• Gold-plated RJ45 connectors: corrosion-resistant, reliable contact for PoE and data
• Backward compatible with Cat5e and Cat6 networks

In daily use

This cable is built for demanding installations where signal integrity and fire safety are non-negotiable. The S/FTP construction virtually eliminates alien crosstalk, making it perfect for high-density 10G deployments. The LSOH jacket emits very little smoke and no toxic halogens if exposed to flame, meeting IEC 60332-1 fire safety standards. Whether you're wiring a new office floor or upgrading a data center, the 20-meter length gives you flexibility without excess slack. It fully supports Power over Ethernet (PoE, PoE+, PoE++) up to the latest standards, so you can power IP cameras, access points, and VoIP phones over the same cable.

Full specifications

• Cable type: CAT 6a S/FTP (Screened/Foiled Twisted Pair)
• Length: 20 meters
• Colour: Yellow
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Data transfer rate: up to 10 Gbps (10GBASE-T)
• Bandwidth: up to 500 MHz
• Connector type: RJ45 male to RJ45 male, gold-plated contacts
• Conductor material: Copper
• Wiring standard: TIA/EIA-568-C.2
• Impedance: 100 Ohm
• Operating temperature: -20°C to 60°C
• PoE support: PoE, PoE+, PoE++
• Fire safety: IEC 60332-1 (LSOH compliant)

Final note

For a 10G-ready, fire-safe network link that won’t choke your cable management, the DSIT CAT 6a S/FTP LSOH is a dependable, no-compromise choice.
